51 49 090 Removing and installing/replacing trim for rear lid lower section

Remove cover for loading sill. Refer to 51 49 080 REMOVING AND INSTALLING/REPLACING COVER FOR LOADING SILL (ON REAR LID LOWER SECTION) .

Remove insert for trim on rear lid lower section. Refer to 51 49 085 REMOVING AND INSTALLING/REPLACING INSERT FOR TRIM ON REAR LID LOWER SECTION .

Raise cover (1) and release screws (2).

Release screws (3) and remove trim (4).

Fig 1: Raising Cover And Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty retainers (1) and rubber parts (2) on rear lid lower section (3).

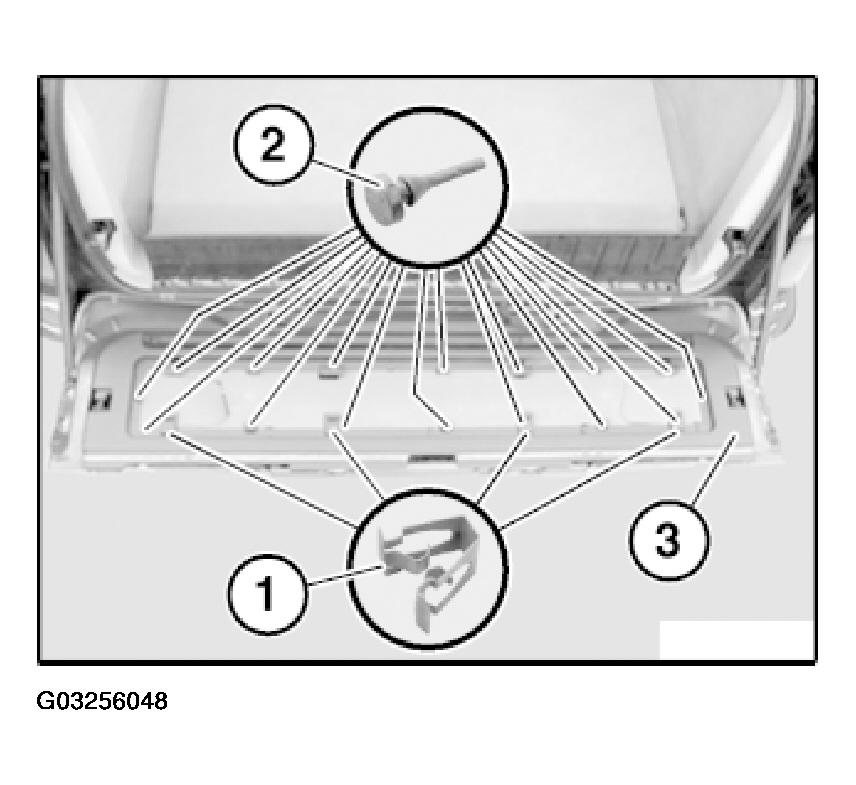

Fig 2: Identifying Retainers And Rubber Parts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement Only:

Remove insulating mat (1) from old trim (2) and insert in new trim.

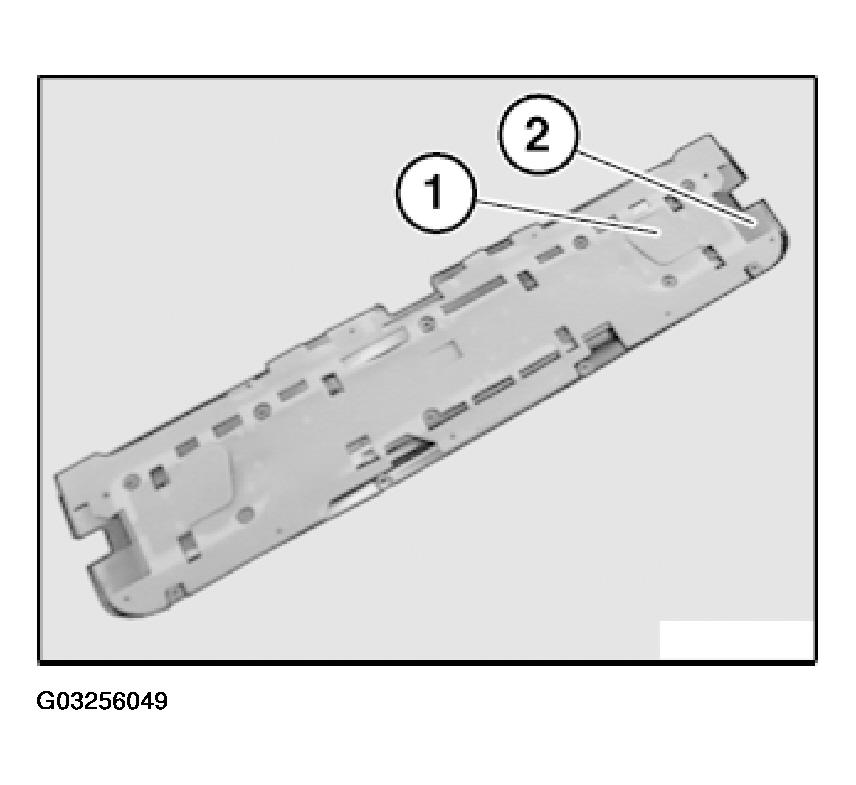

Fig 3: Removing Insulating Mat

Courtesy of BMW OF NORTH AMERICA, INC.
