51 24 115 Removing and installing/replacing striker for rear lid upper section

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for rear lid lower section. Refer to 51 49 090 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LID LOWER SECTION .

Release screws (1) and remove striker (2).

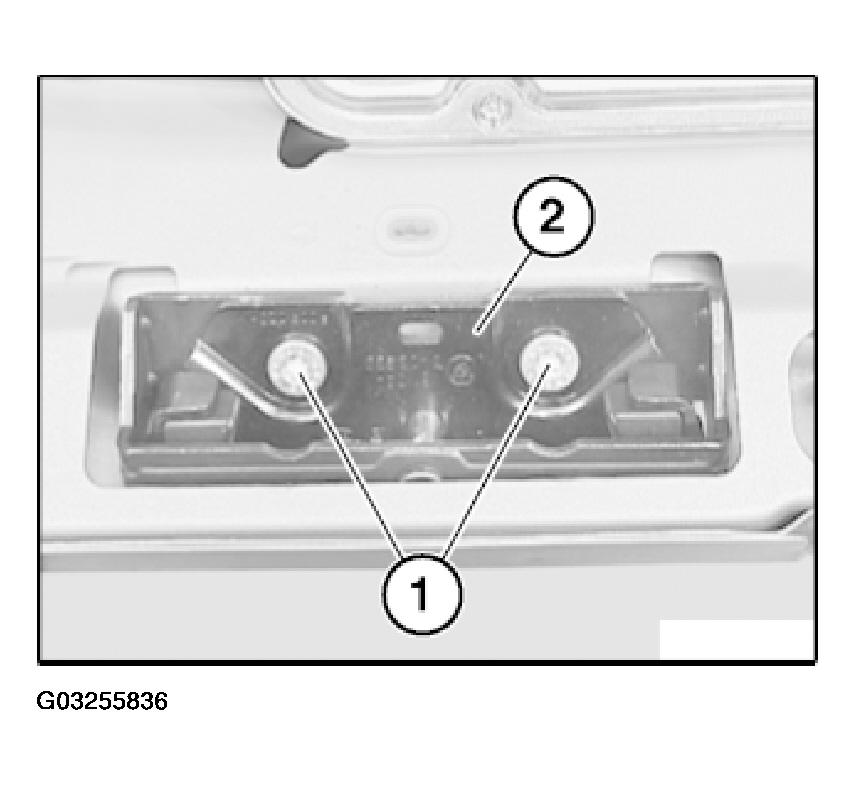

Fig 1: Releasing Screws And Removing Striker

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust rear lid latch (striker) for upper section of rear lid lock.

CAUTION: Closing bracket and rear lid lock must not be greased.
