51 13 115 Removing and installing/replacing cowl panel cover

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove both windshield wiper arms. Refer to 61 61 100 REMOVING AND INSTALLING/REPLACING BOTH WINDSHIELD WIPER ARMS .

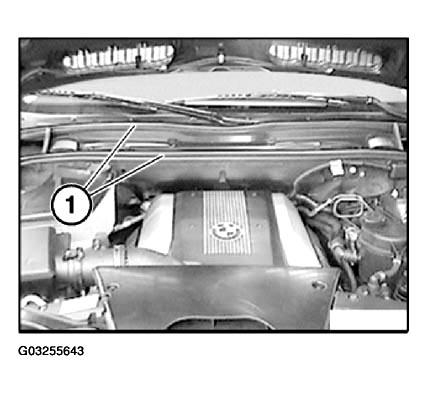

Detach seals (1).

Fig 1: Detaching Seals

G03255643

Courtesy of BMW OF NORTH AMERICA, INC.

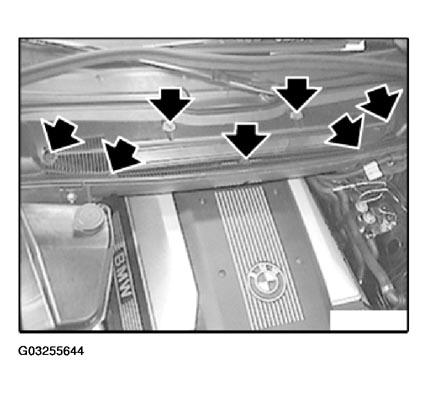

Turn tommy bar through 90° and lift off cover.

Fig 2: Turning Tommy Bar 90 Degrees And Lifting Off Cover

G03255644

Courtesy of BMW OF NORTH AMERICA, INC.

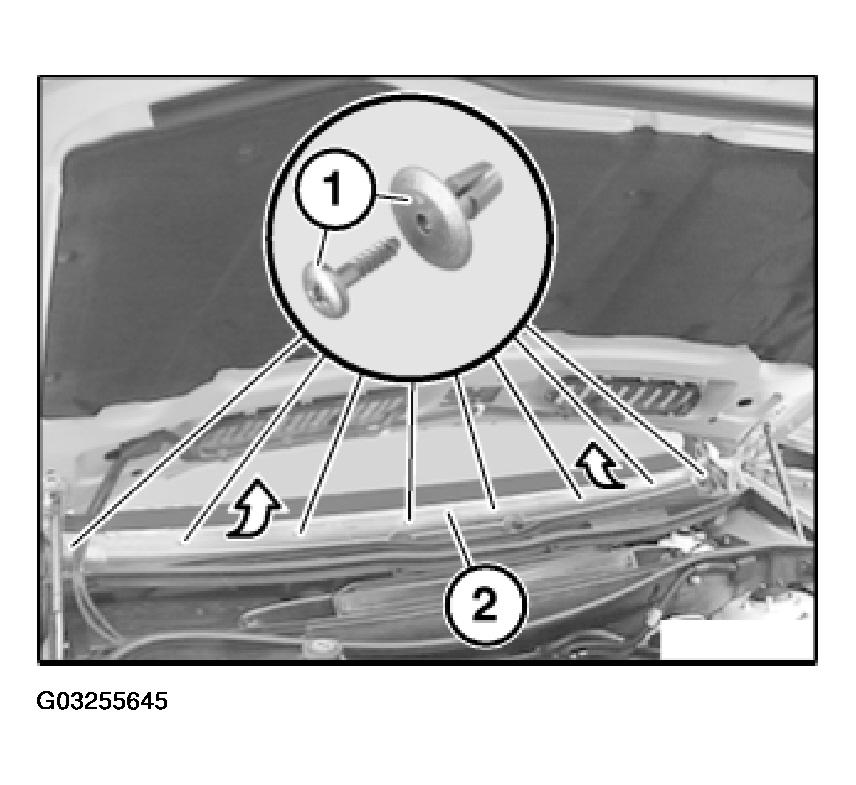

Release expansion rivets (1).

Fig 3: Locating Expansion Rivets

G03255645

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (2) for cowl panel.

Installation:

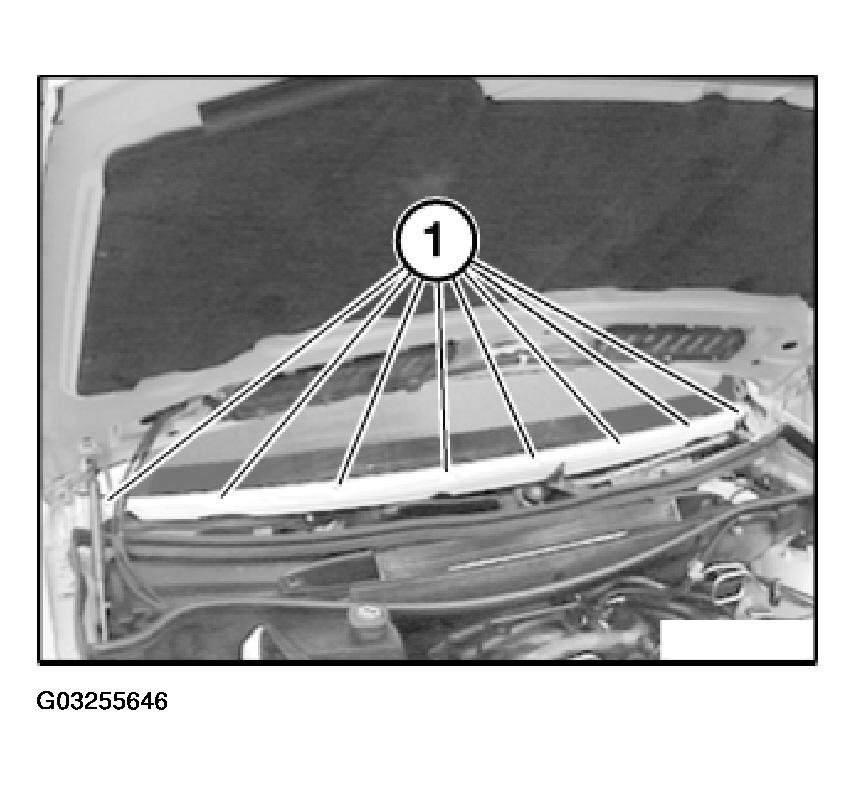

If necessary, replace defective grommets (1).

Fig 4: Identifying Grommets

G03255646

Courtesy of BMW OF NORTH AMERICA, INC.

Only Replacement:

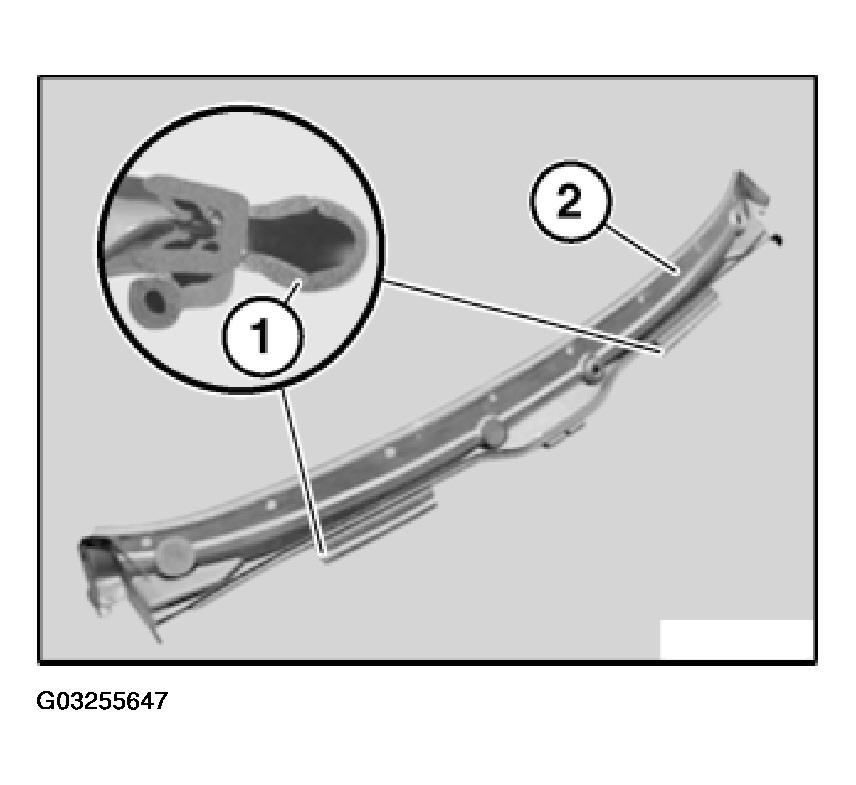

If necessary, detach seals (1) from cover (2).

Fig 5: Locating Seals On Cover

G03255647

Courtesy of BMW OF NORTH AMERICA, INC.
