52 26 008 Removing and installing/replacing left or right side section of rear seat backrest (through-loading)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Release rear-seat backrest and fold forward.

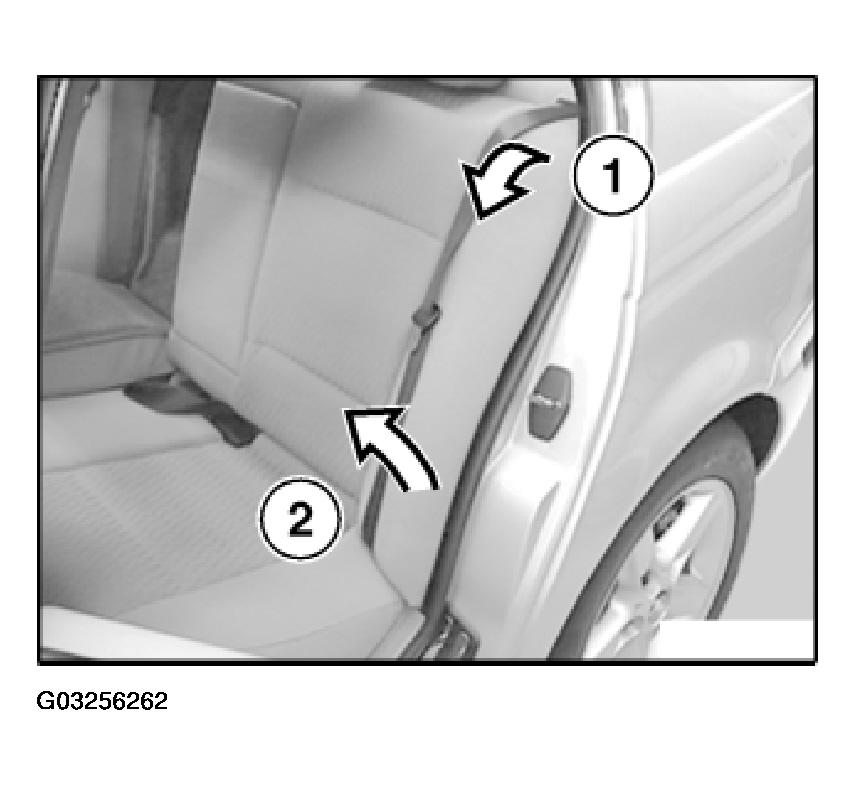

Unclip backrest side section at top (1) and pull upwards (2) to remove.

Fig 1: Removing Backrest Side Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

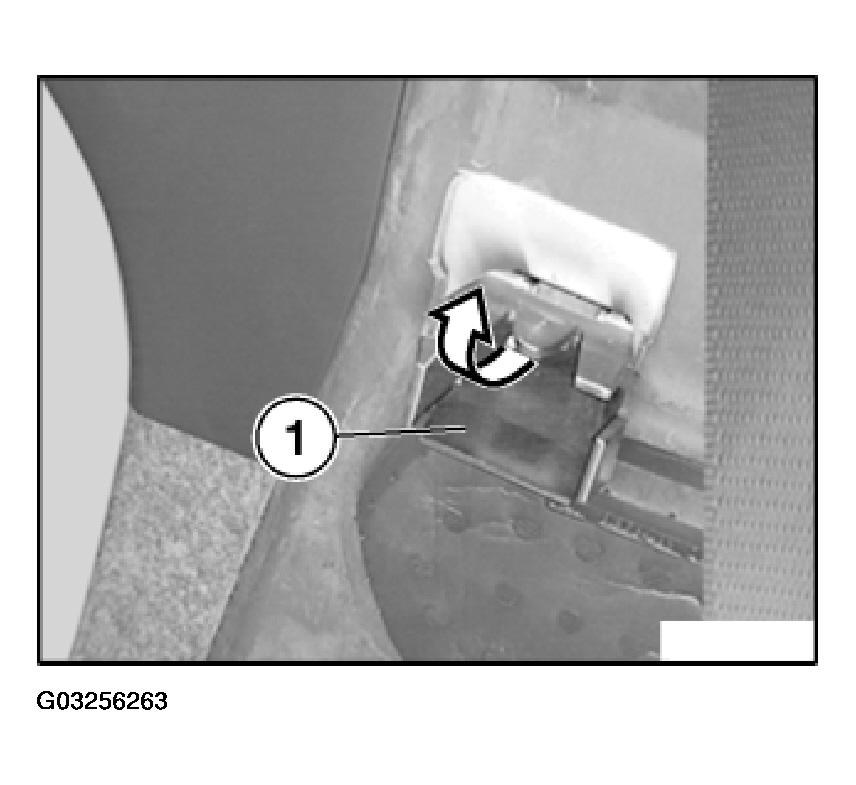

Unscrew clip (1) towards top out of plate.

Fig 2: Unscrewing Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

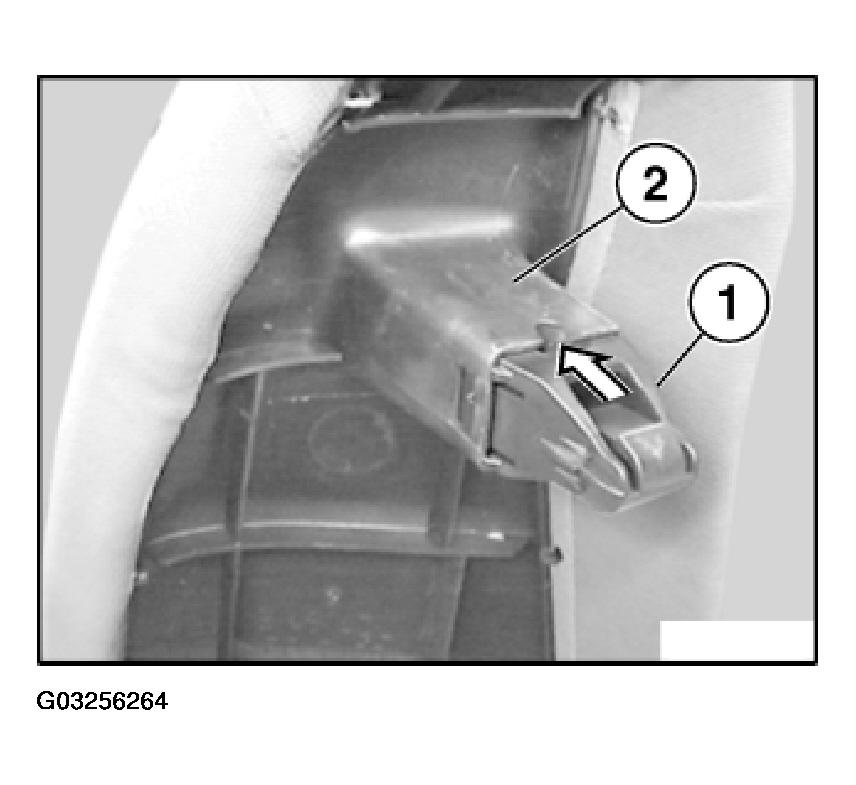

Slide clip (1) into locating receptacle (2) of backrest side section.

Fig 3: Installing Clip Into Locating Receptacle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

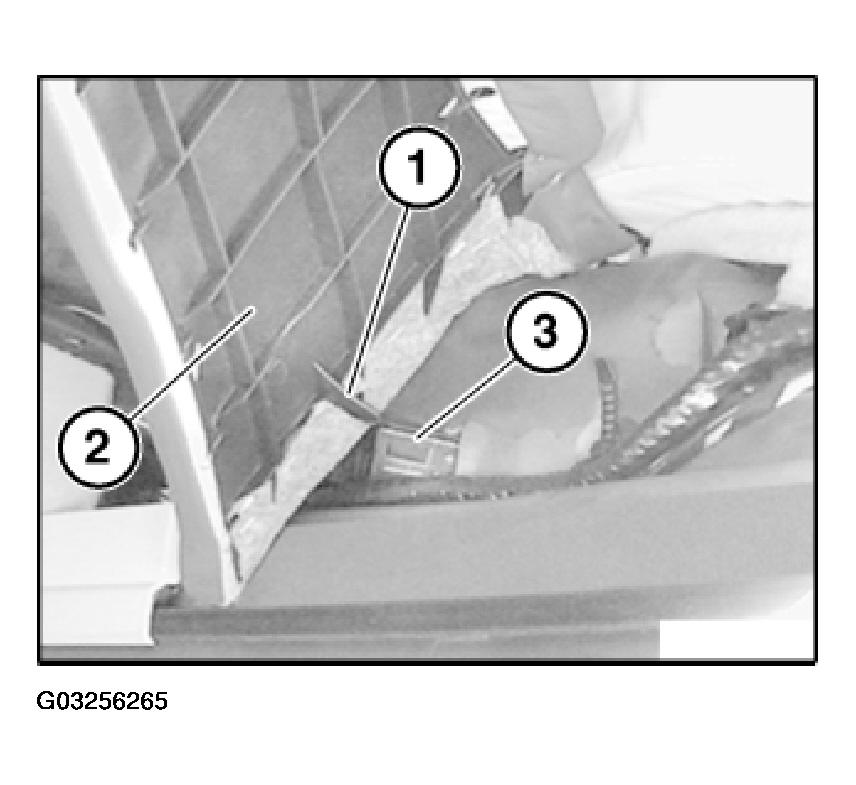

Push guide (1) on backrest side section (2) into fixture (3).

Fig 4: Installing Push Guide On Backrest Into Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
