51 34 425 Removing and installing/replacing trim on window frame of rear door, rear left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove window cavity covering strip on outside. Refer to 51 22 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON REAR DOOR ON LEFT OR RIGHT .

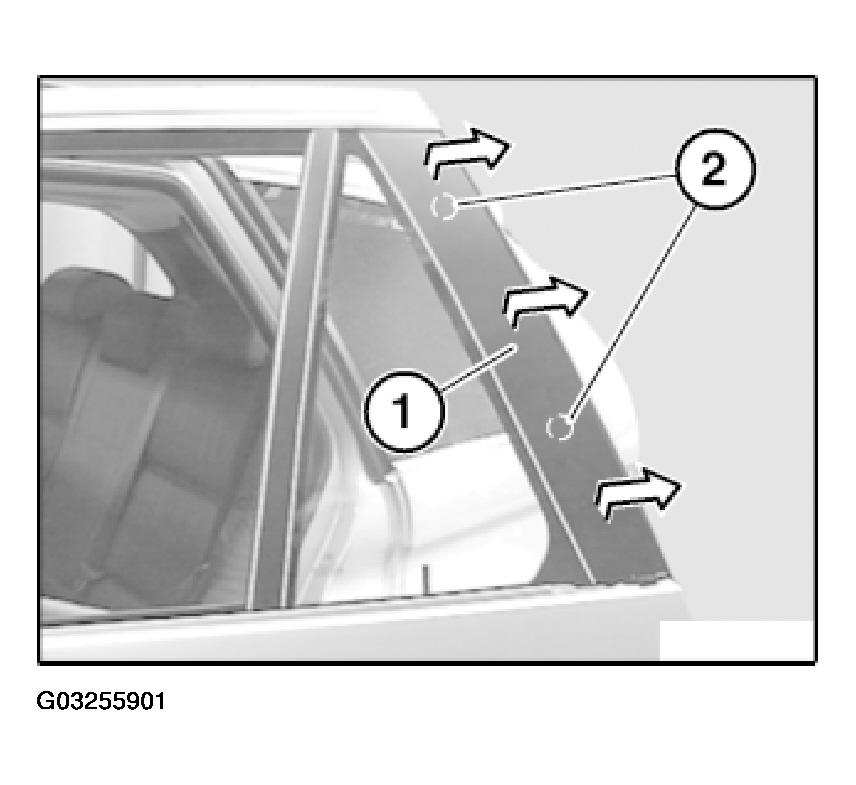

Unclip trim (1) from clips (2) and detach towards rear.

Fig 1: Unclipping Trim From Clips And Detaching Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

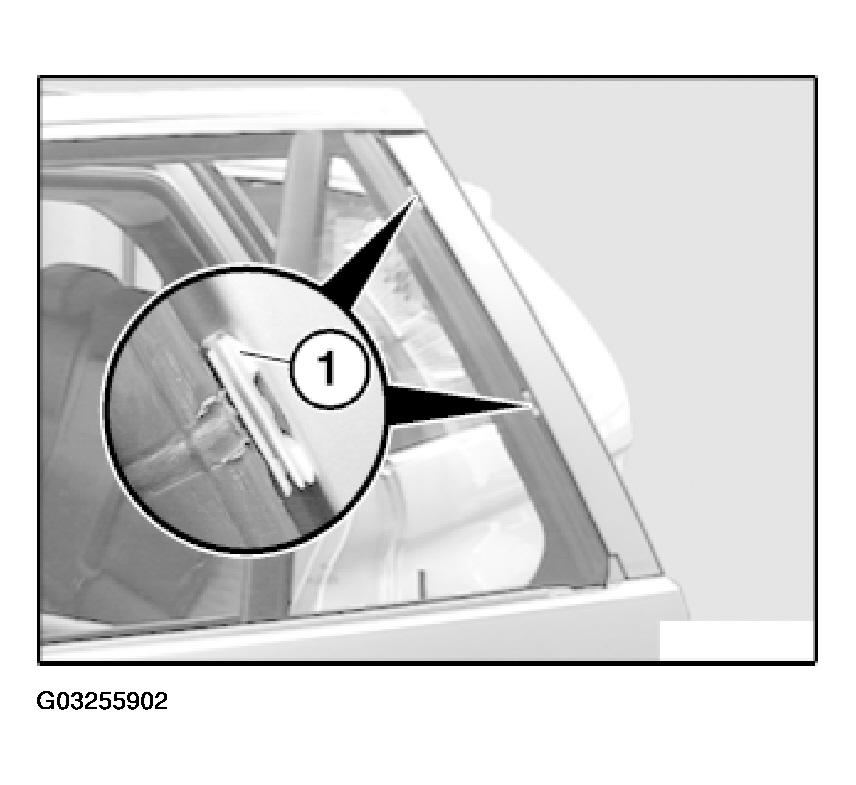

Retainers (1) must not be damaged.

Fig 2: Checking Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

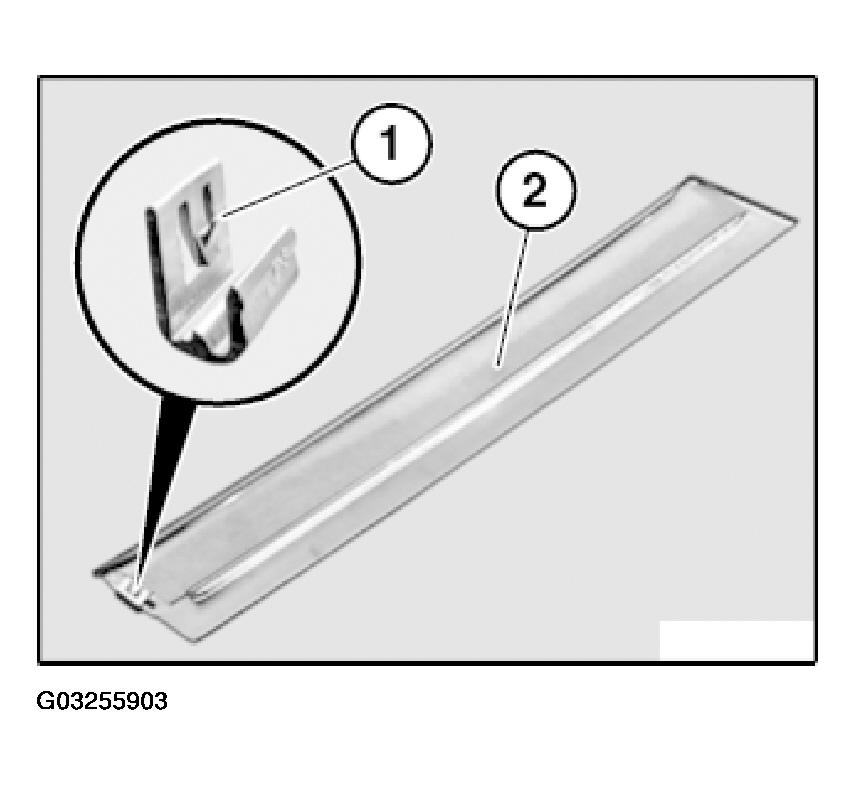

If necessary, replace faulty clips (1) on trim (2).

Fig 3: Replacing Clips On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
