51 34 380 Removing and installing/replacing decorative strip on rear door (top), left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 9 317

Remove trim on window frame of rear door (front). Refer to 51 34 420 REMOVING AND INSTALLING/REPLACING TRIM ON WINDOW FRAME OF REAR DOOR (FRONT), LEFT OR RIGHT .

Remove trim on window frame of rear door (rear). Refer to 51 34 425 REMOVING AND INSTALLING/REPLACING TRIM ON WINDOW FRAME OF REAR DOOR, REAR LEFT OR RIGHT .

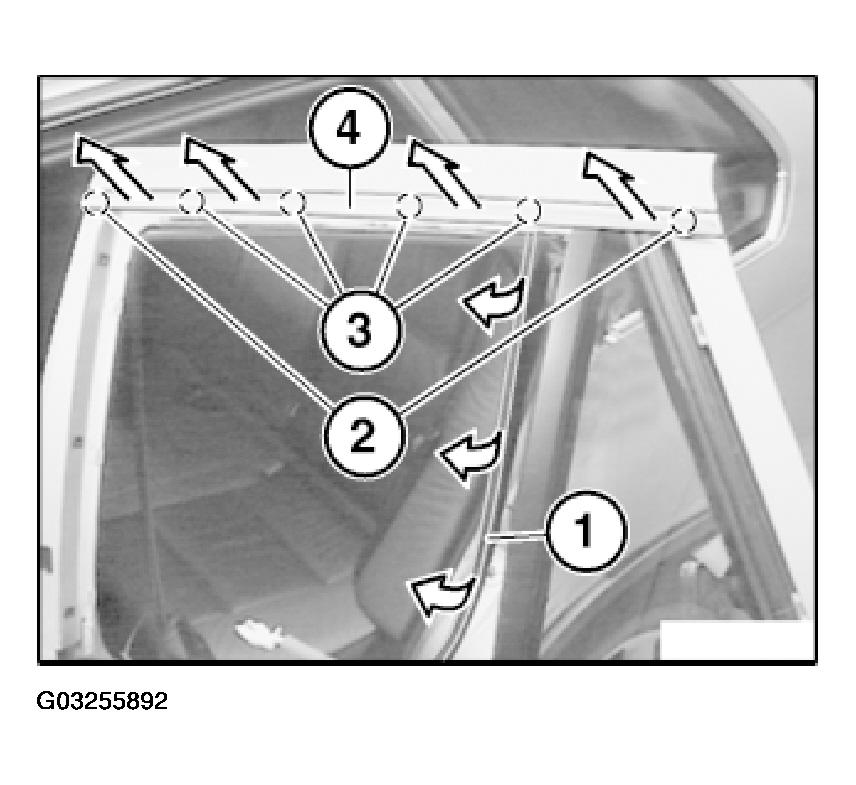

Pull out window rubber guide (1) in upper area.

Unclip outer clips (2) with special tool 00 9 317 (trim panel wedge).

Detach decorative strip (4) outwards from clips (3).

Fig 1: Pulling Out Window Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

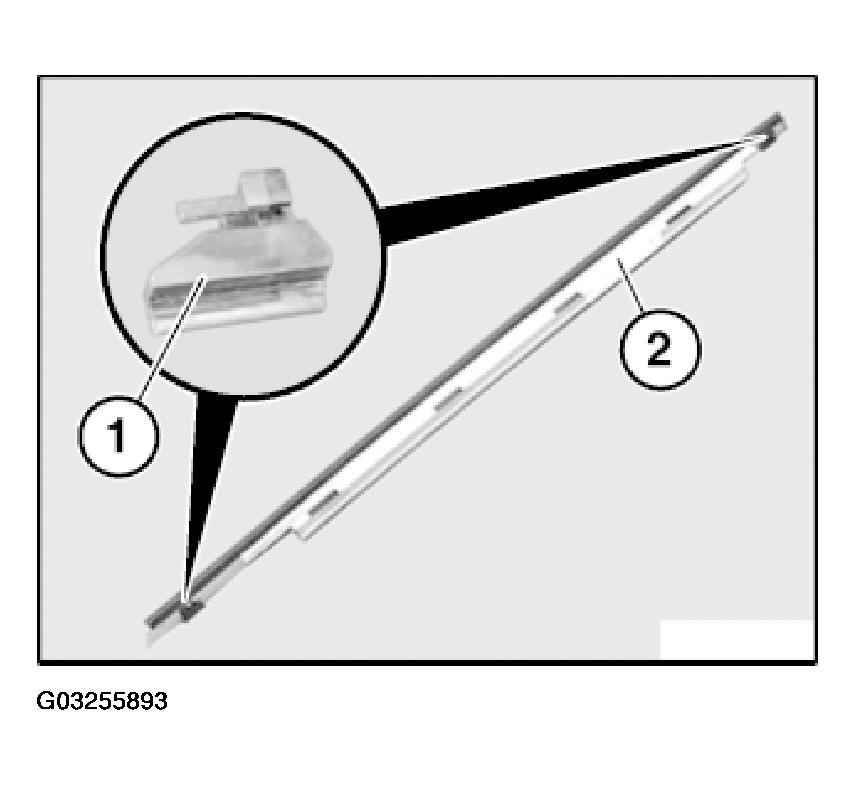

If necessary, replace faulty clips (1) on decorative strip (2).

Fig 2: Identifying Decorative Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

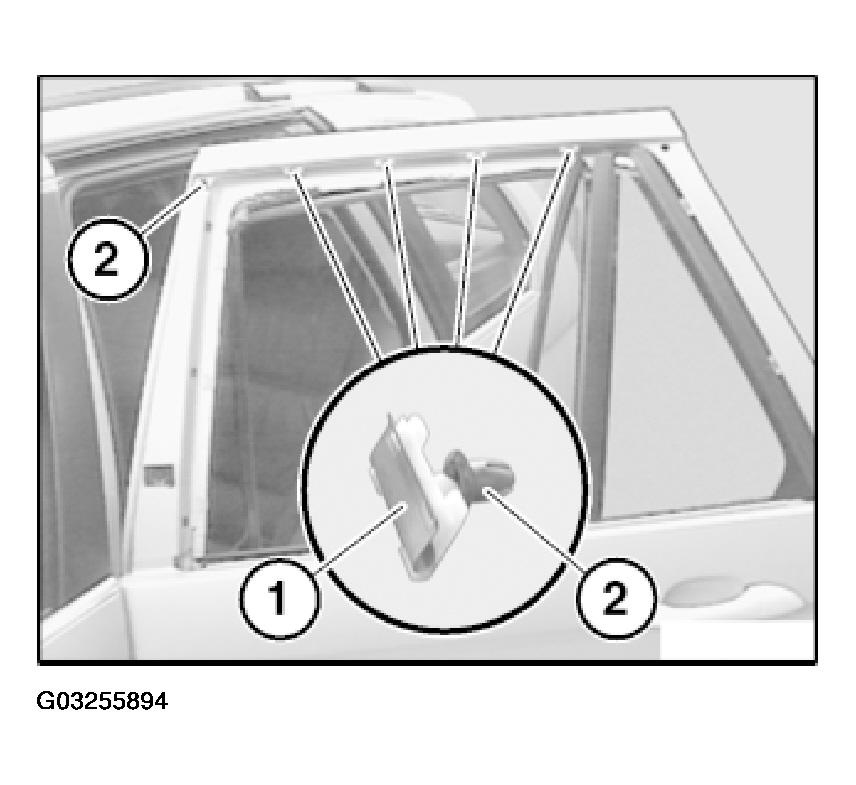

If necessary, replace faulty clips (1) and grommets (2).

Fig 3: Replacing Clips And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.
