51 49 085 Removing and installing/replacing insert for trim on rear lid lower section

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid lower section.

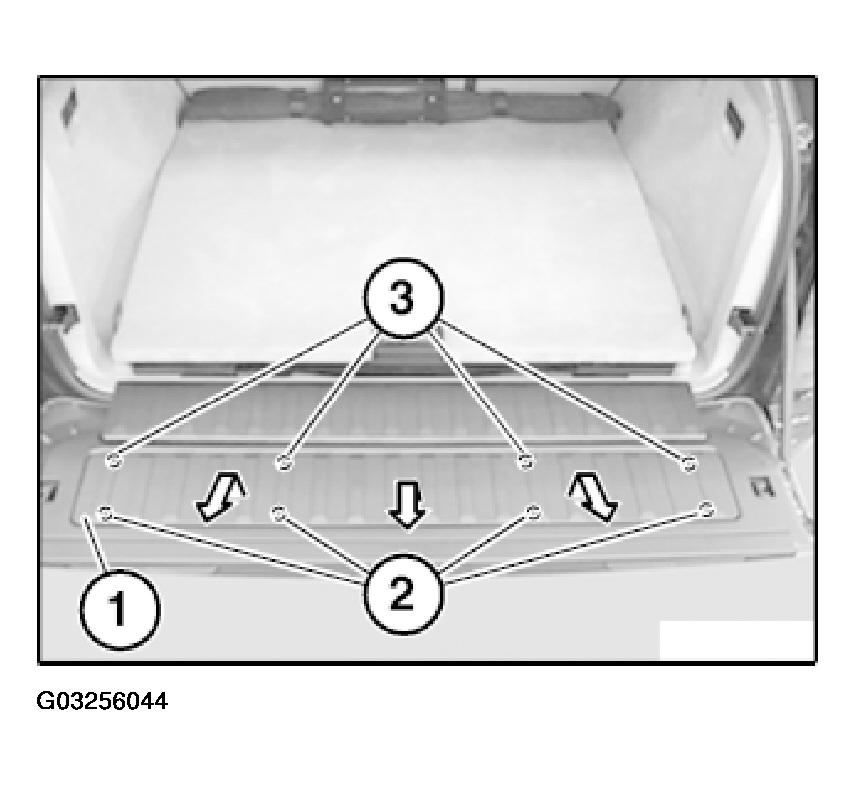

Lever rear insert (1) upwards out of retainers (2) and pull towards rear out of guides (3).

Fig 1: Levering Rear Insert Upwards Out Of Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

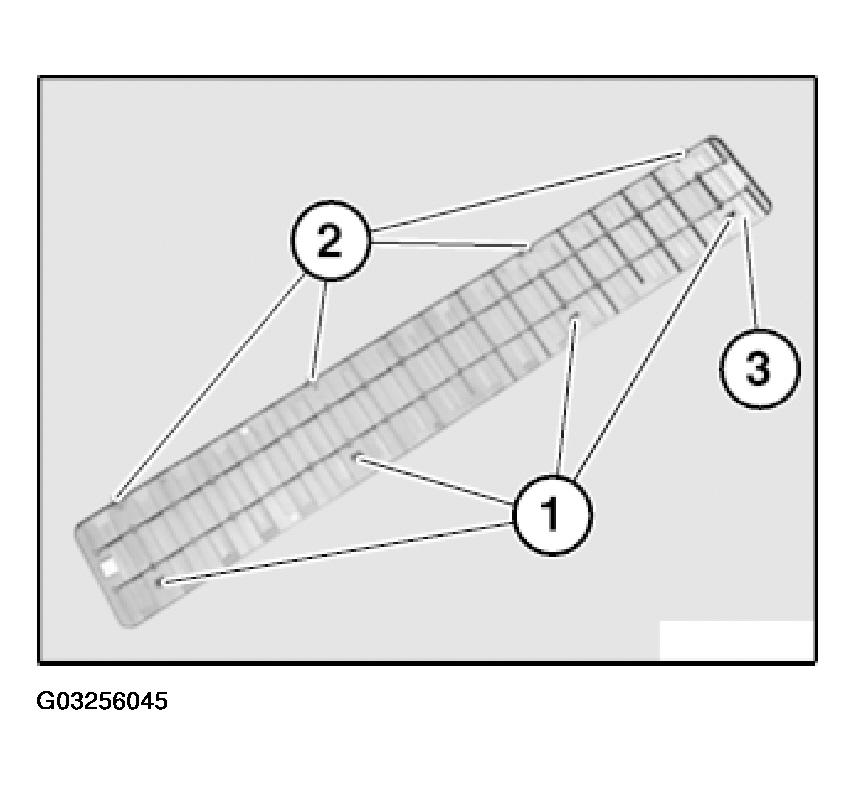

Mounts (1) and guides (2) on insert (3) must not be damaged.

Fig 2: Checking Mounts And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

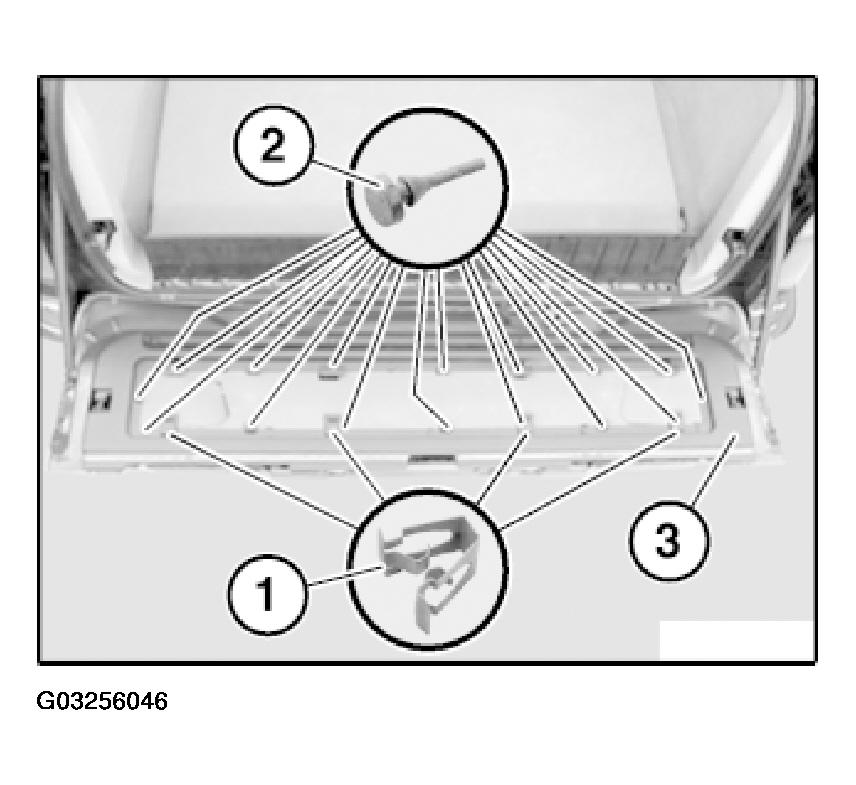

If necessary, replace faulty retainers (1) and rubber parts (2) on rear lid lower section (3).

Fig 3: Identifying Retainers And Rubber Parts

Courtesy of BMW OF NORTH AMERICA, INC.
