51 49 053 Removing and installing/replacing side trim for rear lid upper section

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 9 317

Open rear lid at top.

Using special tool 00 9 317, lever out side trim (1) on left/right with clip (2) from retainer (3) in lower trim (4).

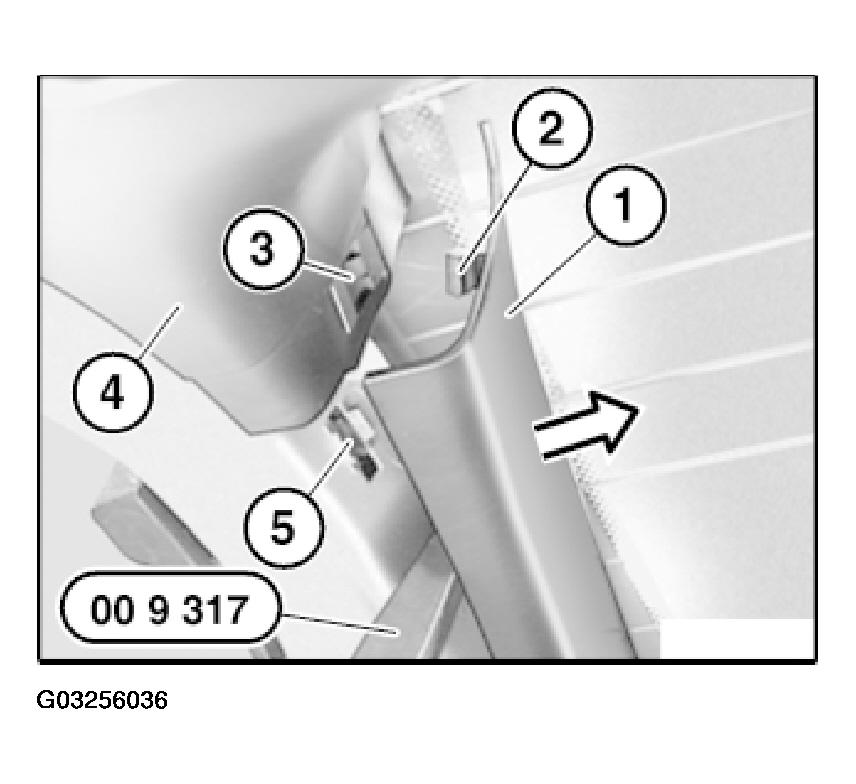

Fig 1: Using Assembly Wedge To Release Side Trim On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty retainer (5).

With special tool 00 9 317, unclip clips (1) in side trim (2).

Feed trim (2) out of swallow-tail guides (3) in upper trim (4) and remove.

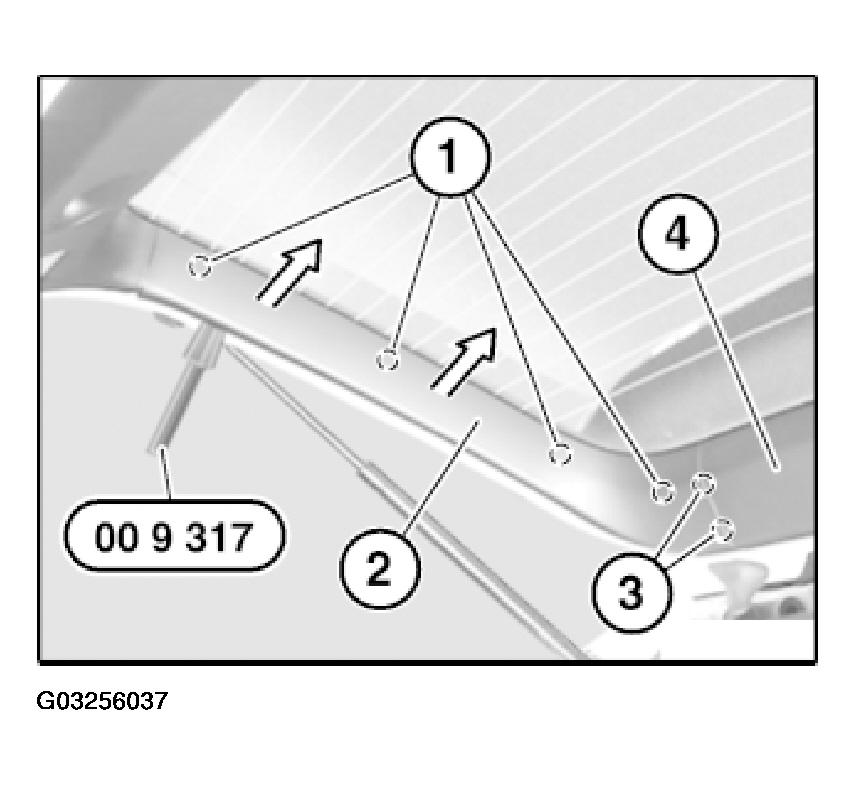

Fig 2: Using Special Tool Remove Clips From Side Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, detach clips (1) from trim (3) and insert in rear lid.

Mounts (2) must not be damaged.

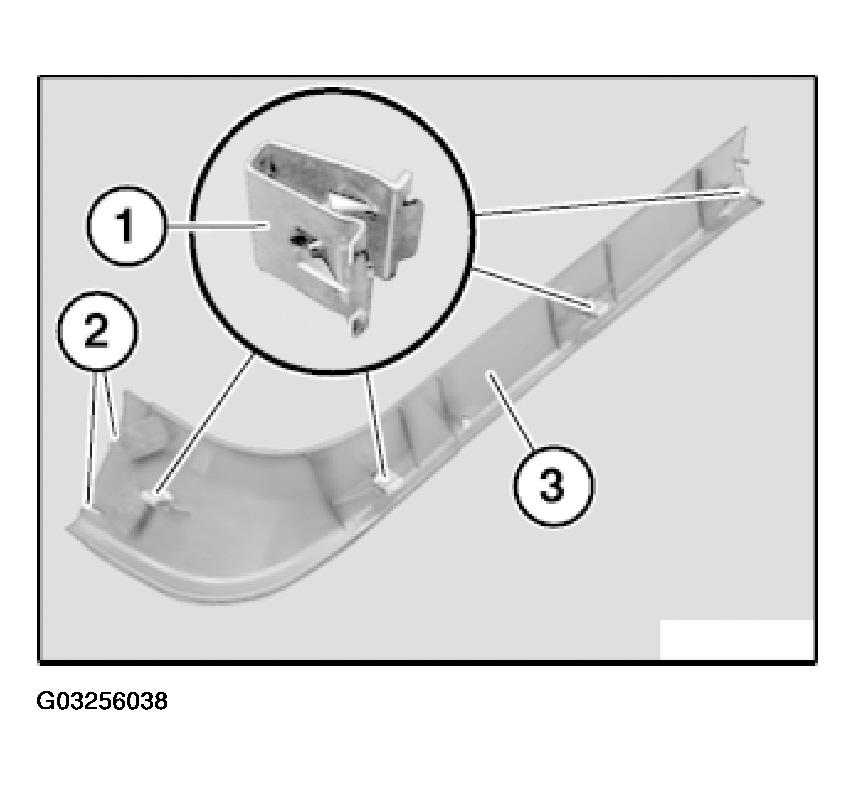

Fig 3: Detaching Clips From Trim And Inserting In Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.
