51 22 090 Removing and installing/replacing door lock on left or right rear door

Raise the door window.

Remove sound insulation on rear door. Refer to 51 48 ... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN REAR DOOR, LEFT OR RIGHT .

Disconnect plug connection (1) on door lock (2).

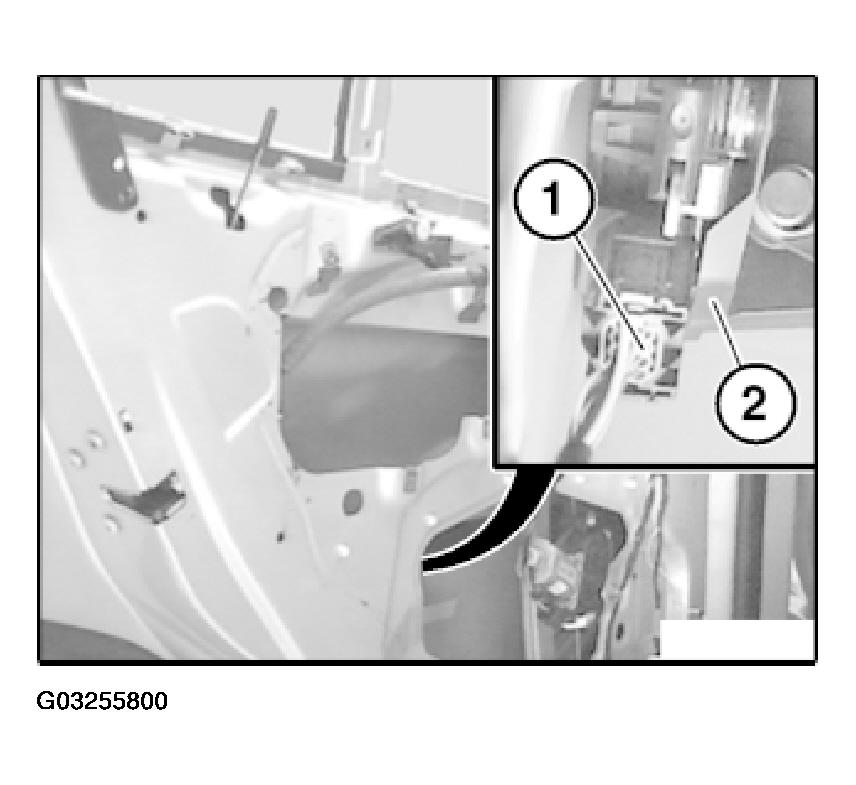

Fig 1: Disconnecting Plug Connection On Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip ball head (1).

Detach Bowden cable (2) from support (2) on door lock.

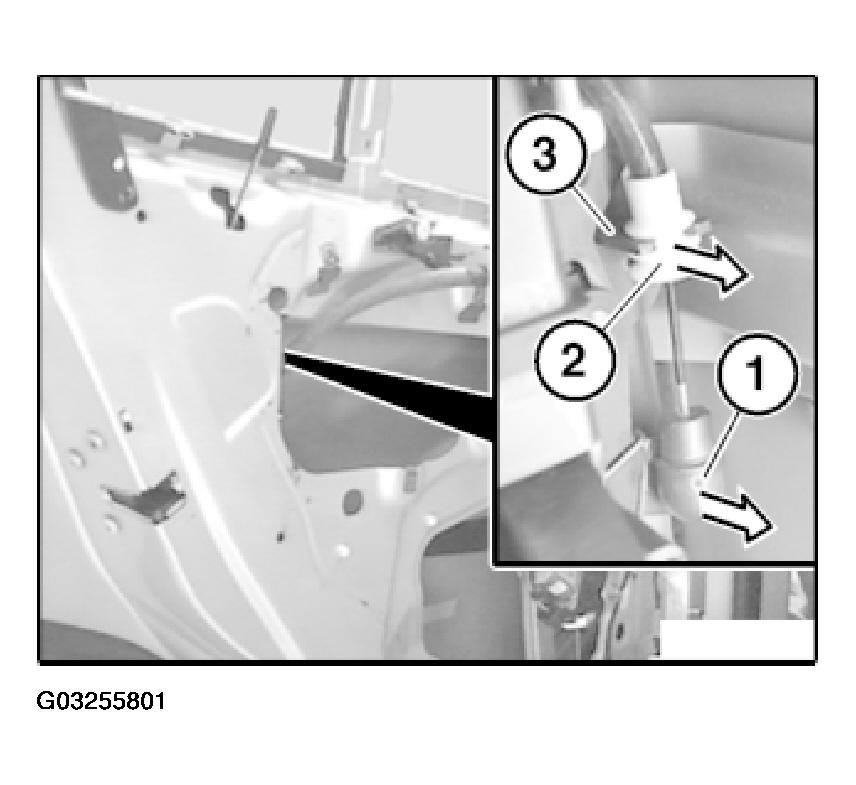

Fig 2: Detaching Bowden Cable From Support

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove door lock (2) with linkage (3).

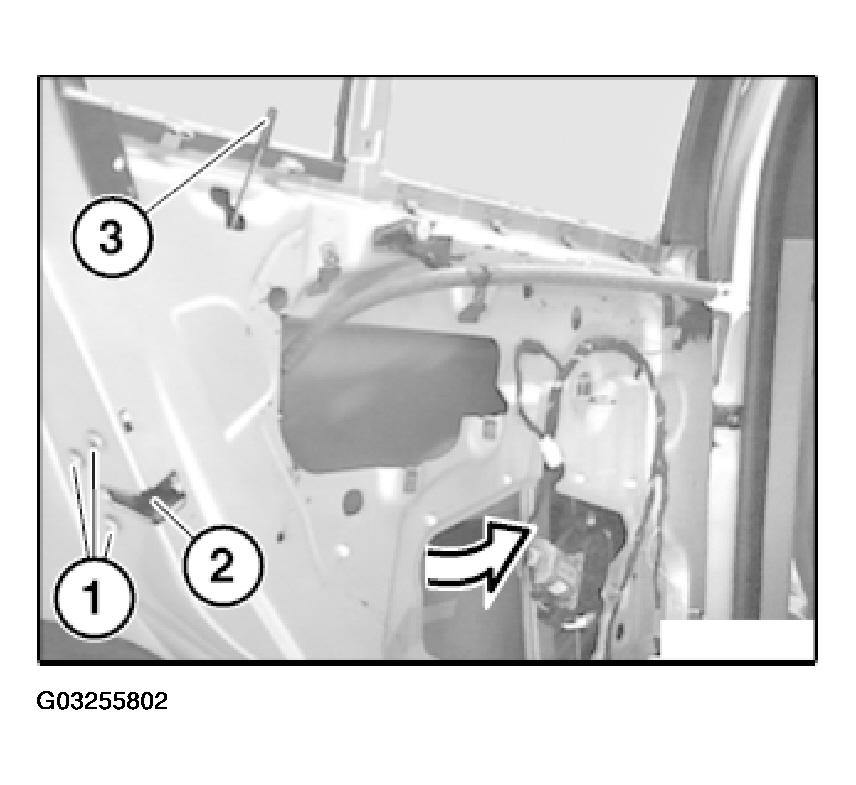

Fig 3: Removing Door Lock With Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert linkage for locking knob through opening in inner door plate.

Do not bend linkage (3).

Replace screws (1).

Tightening torque, (9 N.m.).

Installation:

Carry out function check only with door open.

• Close rotary latch lock (1) with a screwdriver.
• Lock car with car key.
• Unlock car with car key.
• Open rotary latch lock (1) with outside door handle.
• If rotary latch lock opens, then O.K.
• If rotary latch lock fails to open:
• A new lock actuator must be fitted.

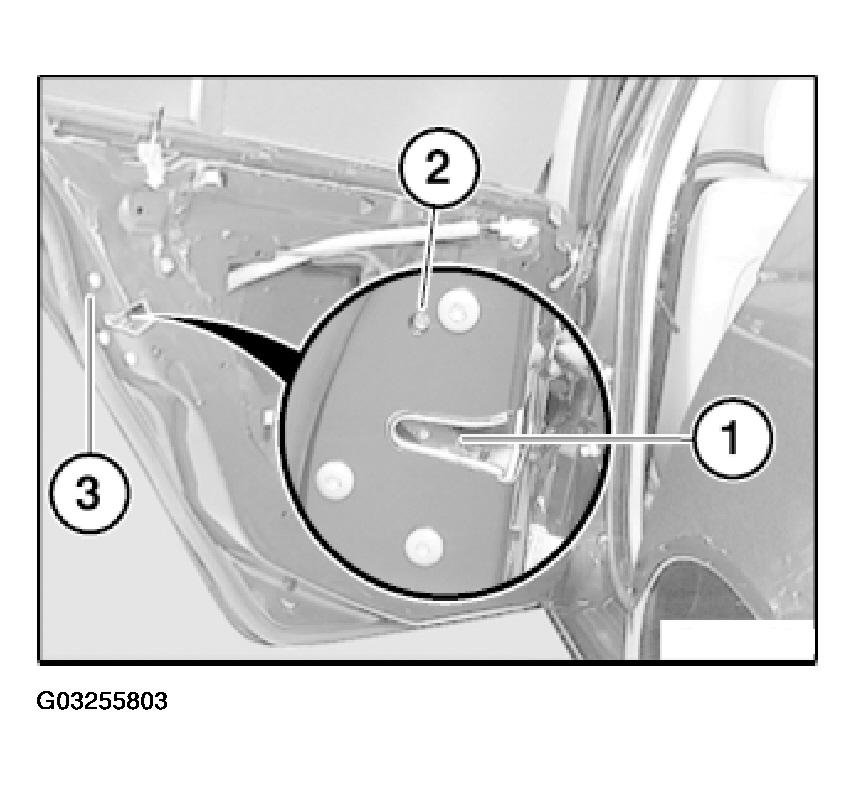

Fig 4: Identifying Rotary Latch Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Only replacement:

Lift out lock (1) and detach Bowden cable (2) from fixture (3).

Fig 5: Lifting Out Lock And Detaching Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

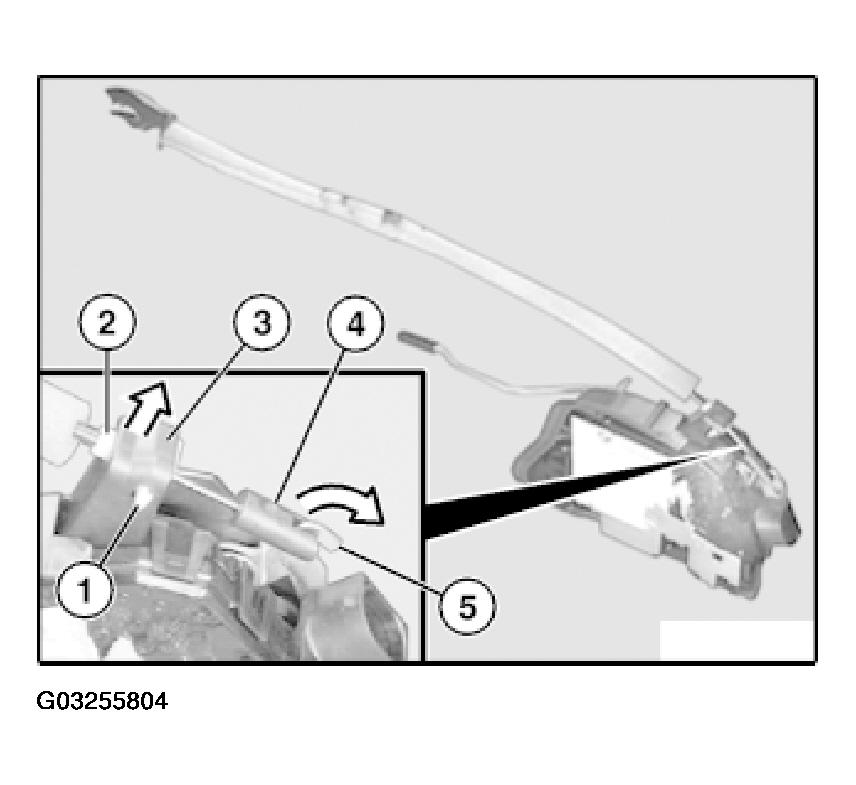

Remove Bowden cable nipple (4) from lever (5).

Only Replacement:

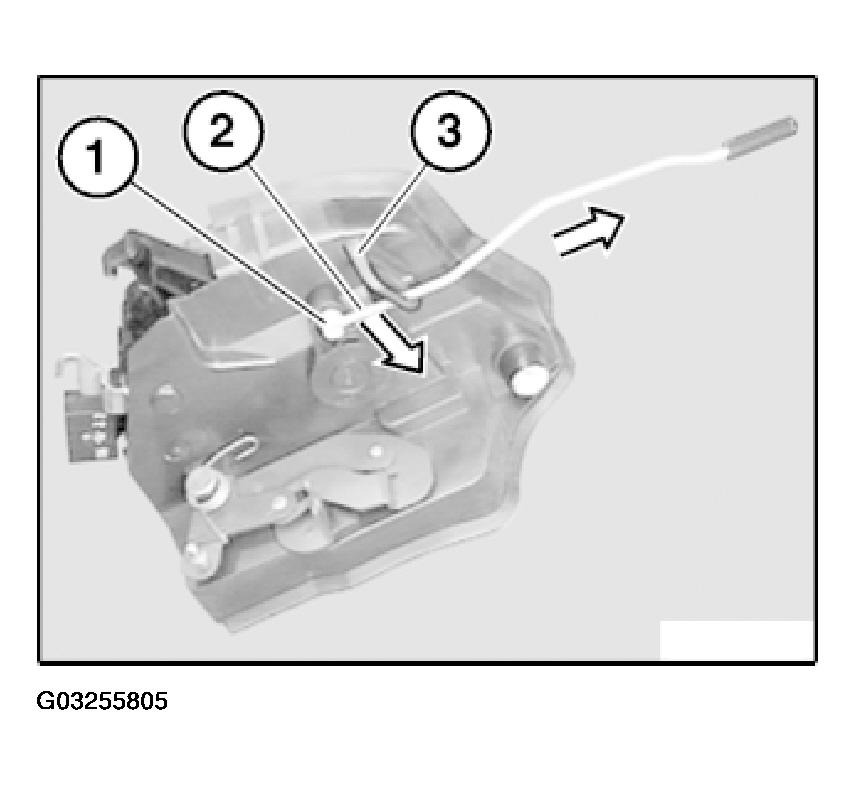

Unclip linkage for locking knob (2) from support (1) and feed out of guide (3).

Fig 6: Unclipping Linkage For Locking Knob From Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged or missing:

1. Spring.
2. Support for Bowden cable of lock plate.
3. Mount for linkage of locking knob.
4. Lever for child safety catch.

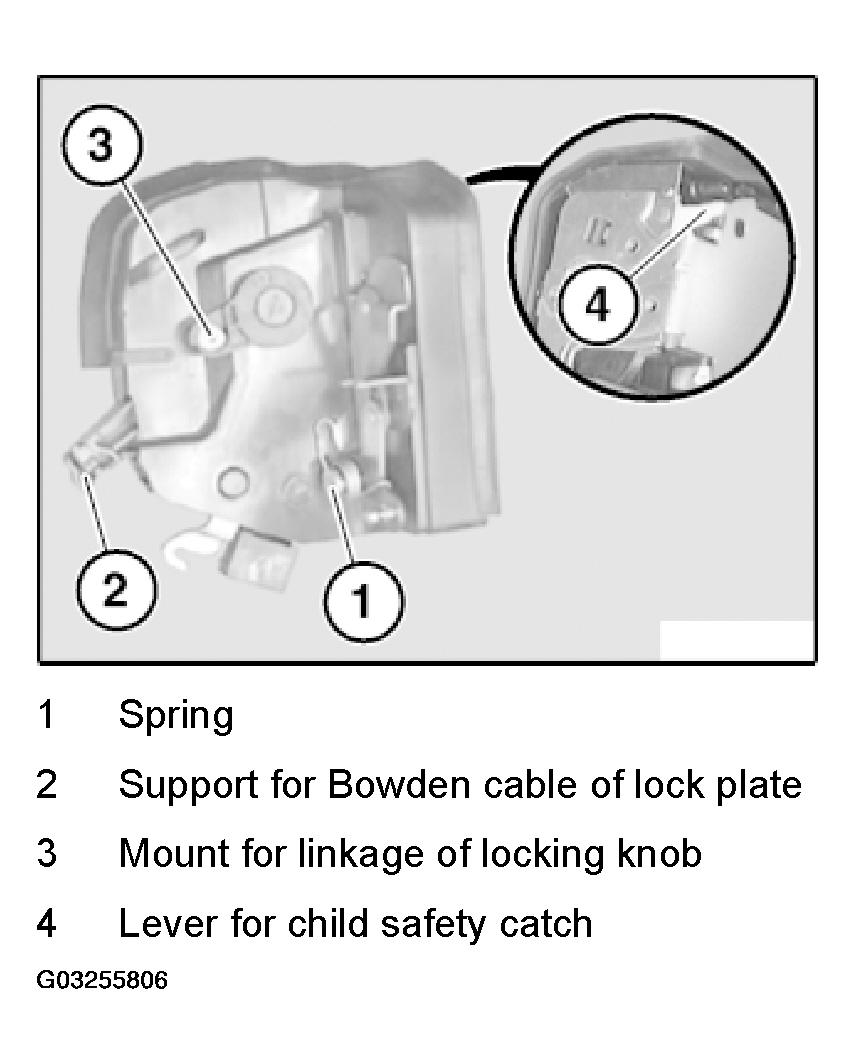

Fig 7: Identifying Door Lock Components

Courtesy of BMW OF NORTH AMERICA, INC.
