51 12 801 Replacing bracket for rear bumper at left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

(Bumper Removed)

If necessary, remove rear bumper completely. Refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER

Release screw (1) on wheel arch.

Press together catches (2) and remove holder (3) outwards/forwards.

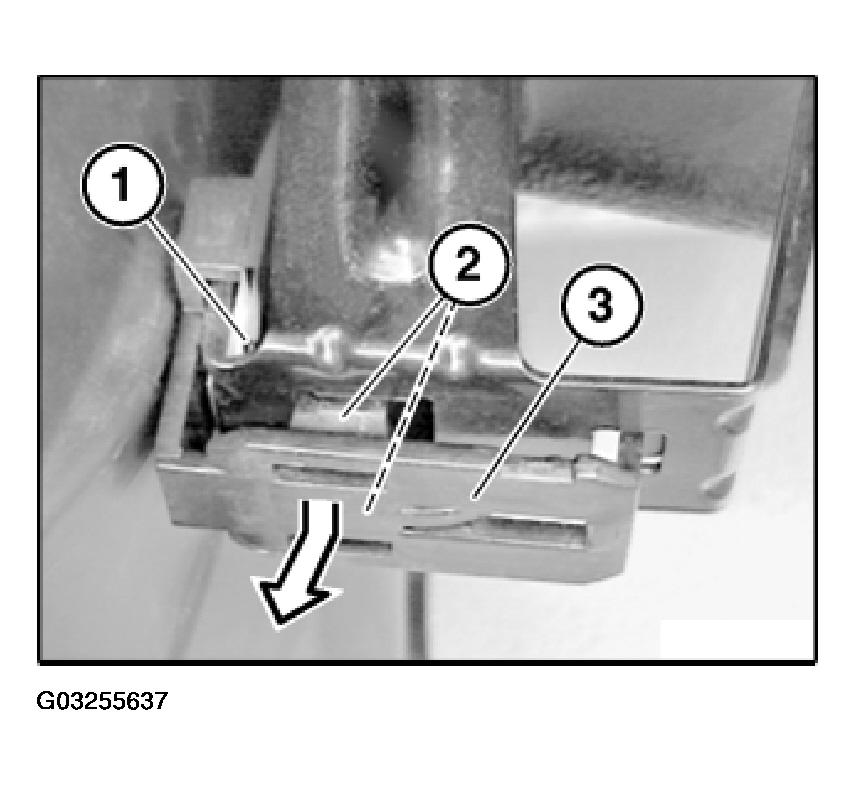

Fig 1: Locating Catches On Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and guides (2) must not be damaged.

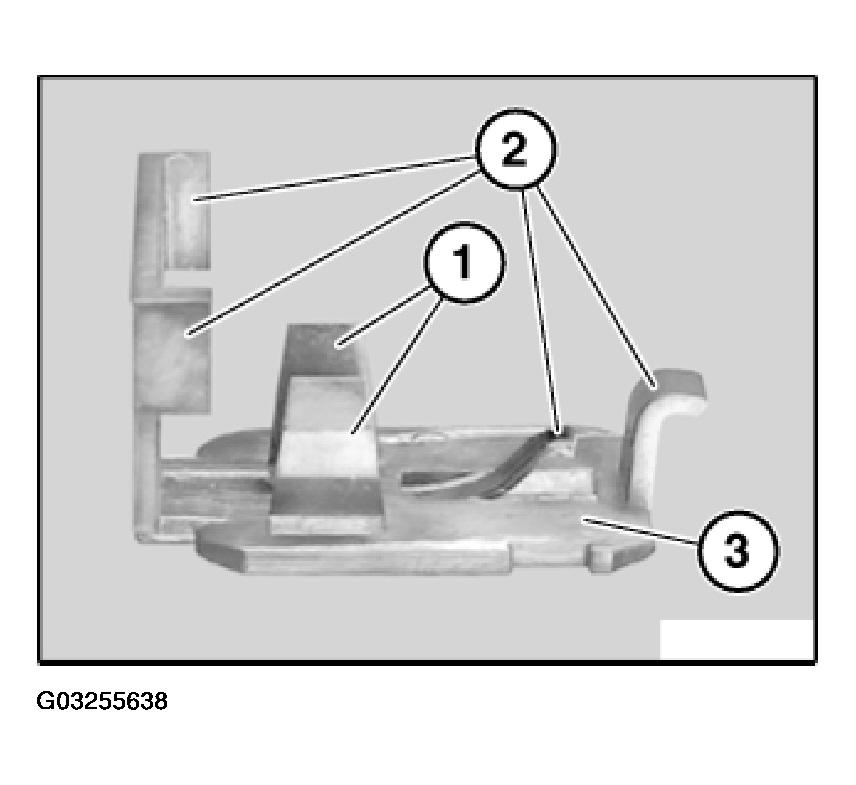

Fig 2: Identifying Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove holder (2).

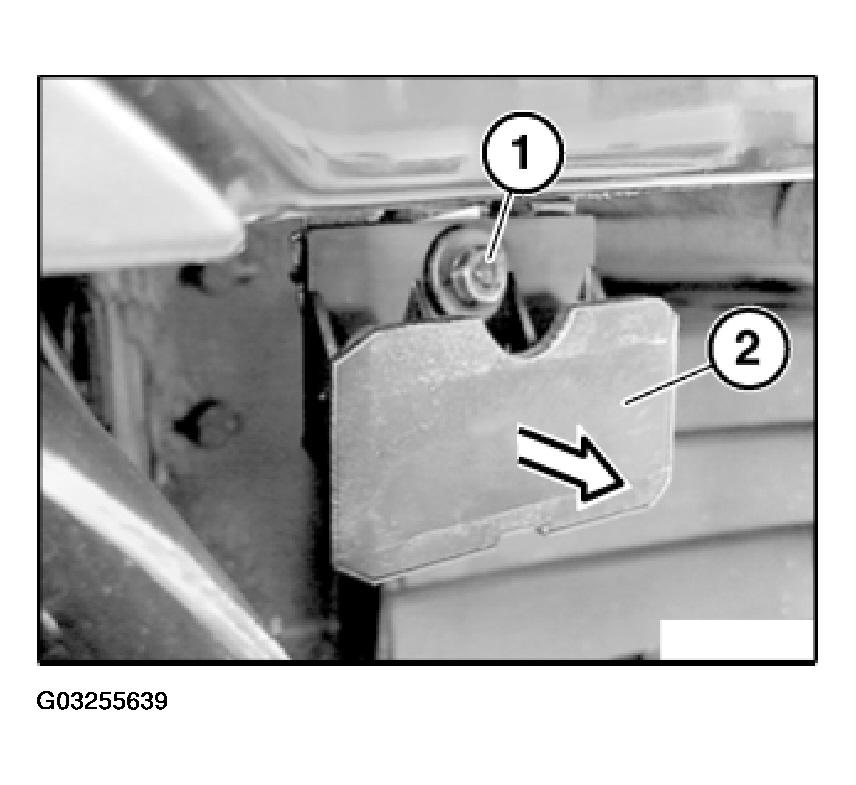

Fig 3: Releasing Screw And Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) on holder (2) must not be damaged.

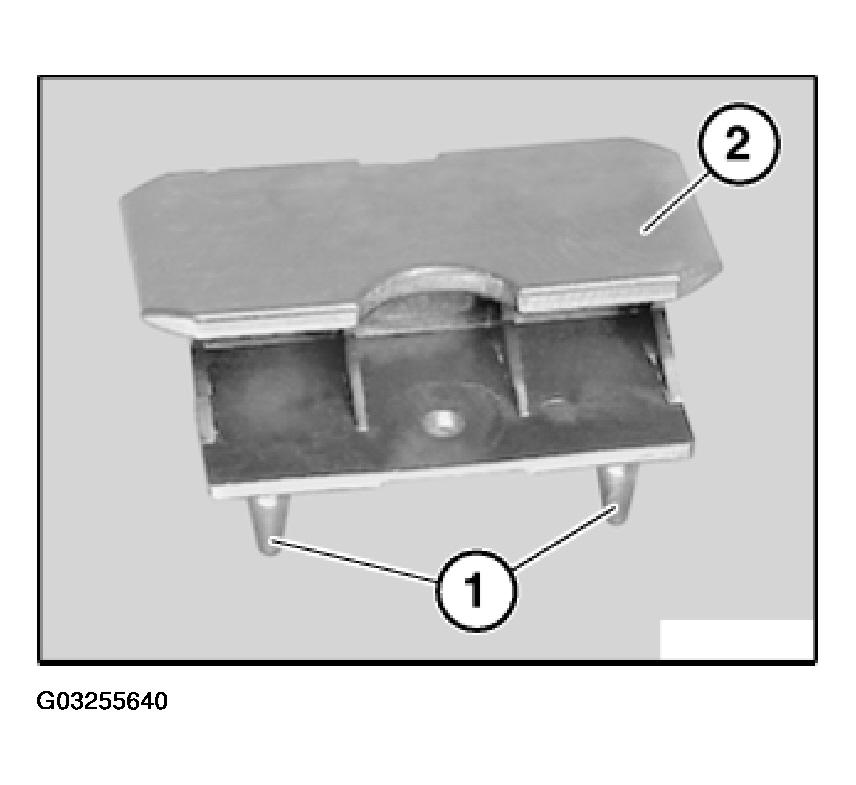

Fig 4: View Of Guides On Holder

Courtesy of BMW OF NORTH AMERICA, INC.
