51 12 000 Removing and installing complete rear bumper

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

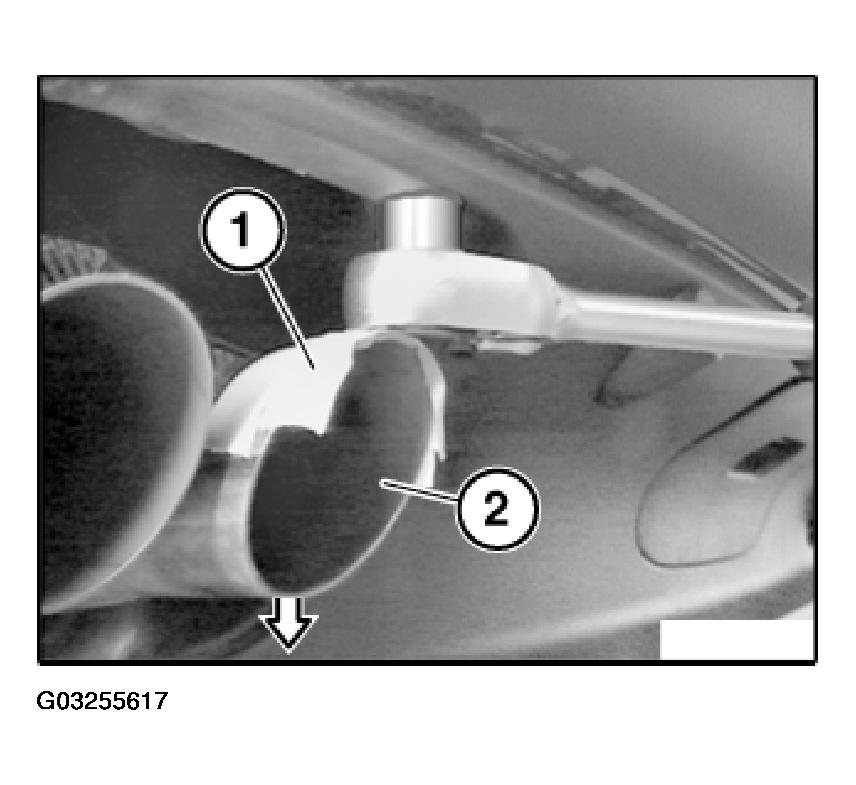

Attach fabric adhesive tape (1) to inner tail pipes (2) (risk of damage).

Pull tail pipes (2) downwards and release screw with commercially available Torx T55 and ratchet.

Installation:

Tightening torque, (55 N.m.).

Fig 1: Removing Bumper Screw

Courtesy of BMW OF NORTH AMERICA, INC.

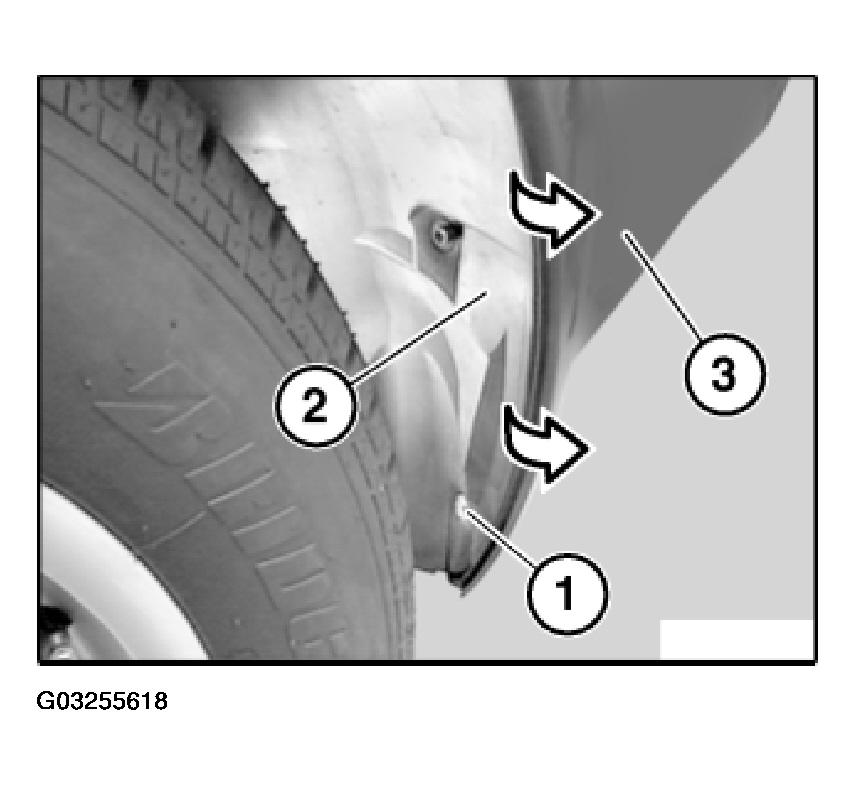

Release left/right screws (1).

Version Without Park Distance Control (PDC):

Open rear lids.

Lever out trim (2) on wheel arch on left/right and pull off bumper (3).

Fig 2: Removing Bumper From Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

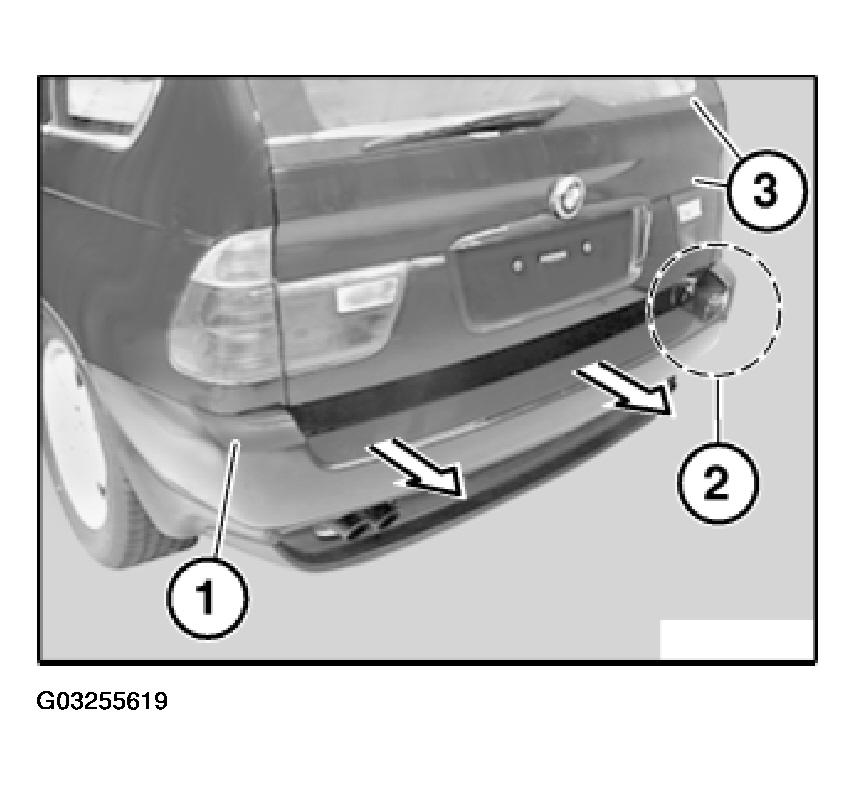

Version With Park Distance Control (PDC):

Open rear lids (3) for detaching and then close again.

Pull back bumper (1) in right area (2) until plug connection for PDC is accessible.

In right area (2), disconnect plug connection and unclip cable holders.

Fig 3: Locating Plug Connection And Cable Holders

Courtesy of BMW OF NORTH AMERICA, INC.

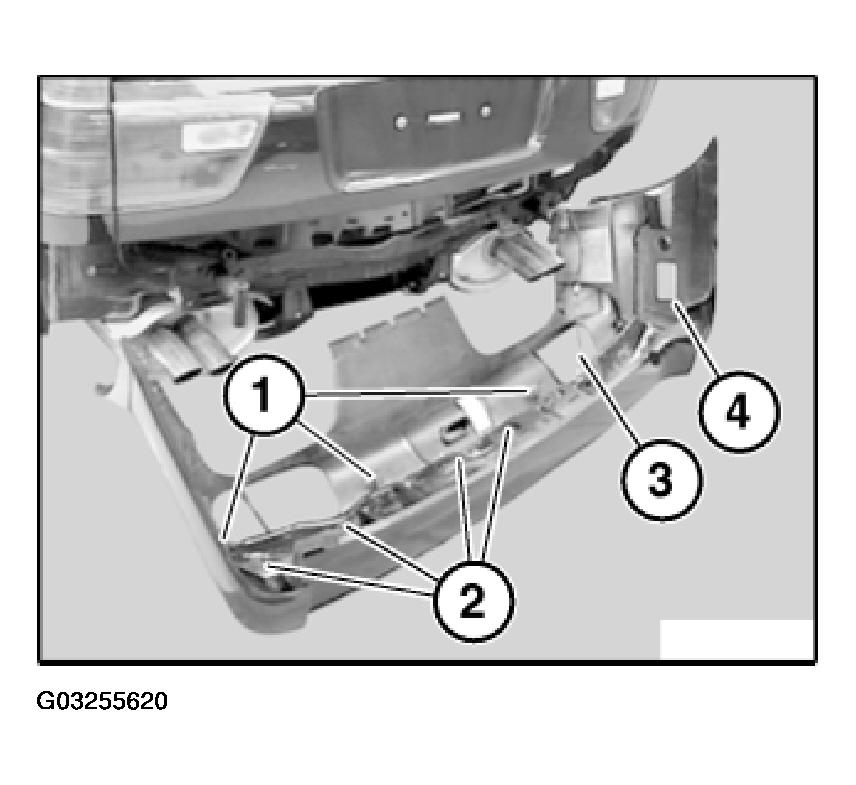

Version with Park Distance Control (PDC):

Disconnect remaining plug connections (1).

Unclip all cable holders (2).

Fig 4: Identifying Plug Connection And Cable Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out cable (3) from bumper (4) and set down on a clean surface.
