51 12 001 Replacing rear bumper

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Replacing Rear Bumper Center Section (Carrier) (51 12 011):

Remove complete rear bumper. Refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER .

Release expansion rivets (1).

Remove cover (2) on left/right.

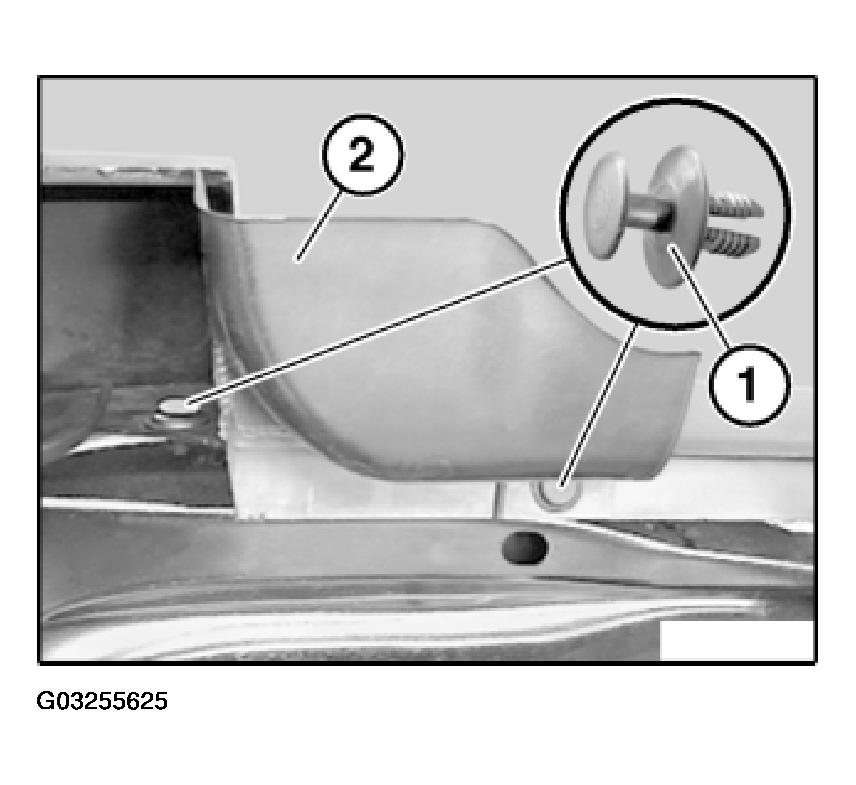

Fig 1: View Of Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1) and remove bumper center section (2) (carrier).

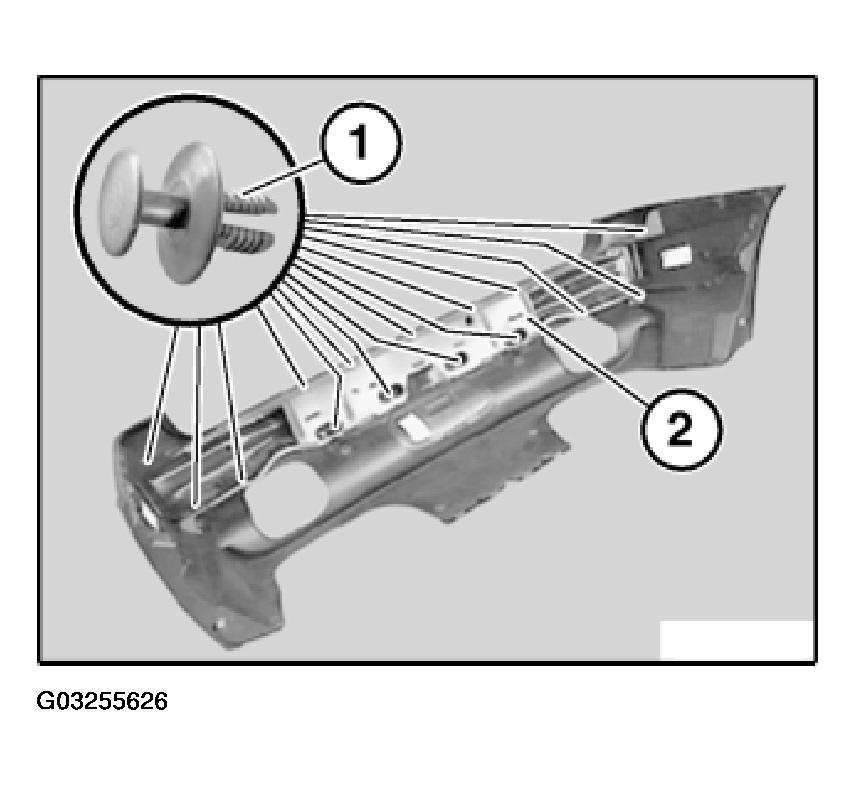

Fig 2: Releasing Expansion Rivets From Bumper Center Section

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The work steps for "Replacing rear bumper center section (carrier)" ends here.

Replacing Rear Bumper Trim (51 12 157) And Replacing Rear Bumper (51 12 001):

Unclip flap (1) on handle from bumper (2).

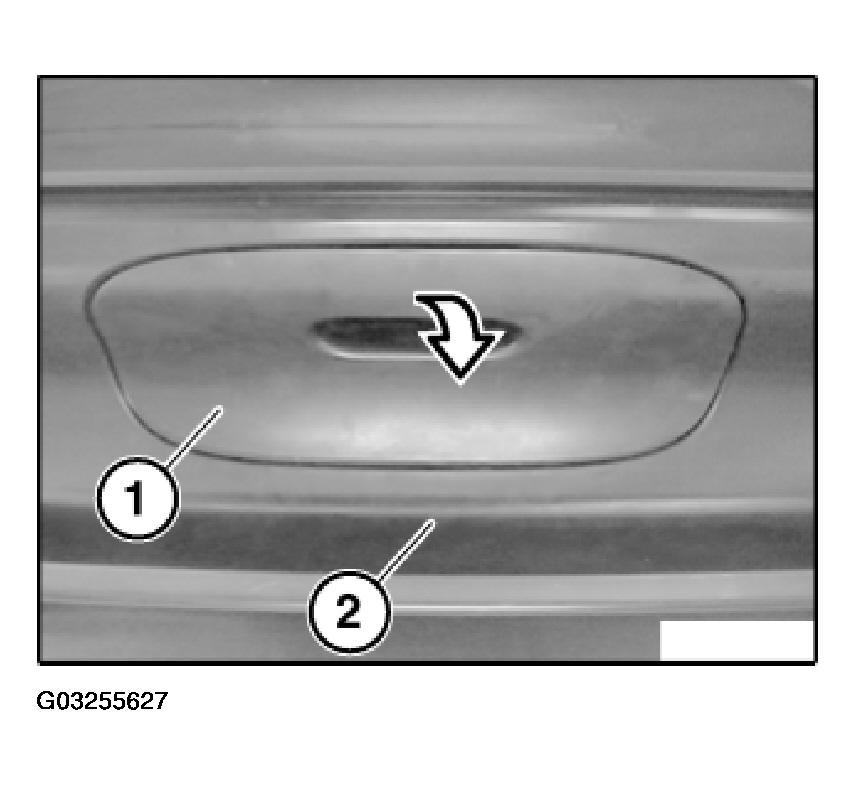

Fig 3: Removing Flap On Handle From Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Remove speed nuts (1).

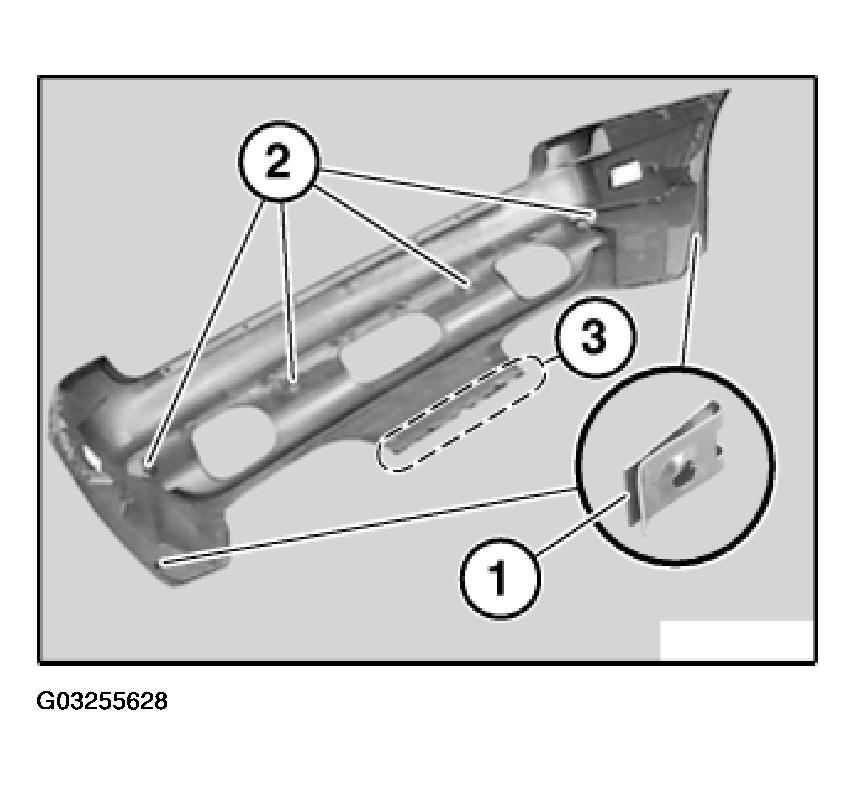

Fig 4: Identifying Speed Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Park Distance Control (PDC):

If necessary, remove all rear ultrasonic transducers. Refer to 66 20 540 REMOVING AND INSTALLING/REPLACING A REAR ULTRASONIC TRANSDUCER (PARK DISTANCE CONTROL) .

Mounts must not be damaged in area (2).
