51 71 415 Removing and installing rear spoiler lower section

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear spoiler. Refer to 51 71 412 REMOVING AND INSTALLING REAR SPOILER .
Disconnect plug connection for antenna (AM pickup). Refer to 65 24 010 REMOVING AND INSTALLING/REPLACING ANTENNA AMPLIFIER (REAR LID UPPER SECTION) .

Disconnect plug connection (1) for auxiliary brake light and expose lead.

Detach water hose (2) from jet nozzle and expose.

Release nuts (3) and remove rear spoiler lower section (4).

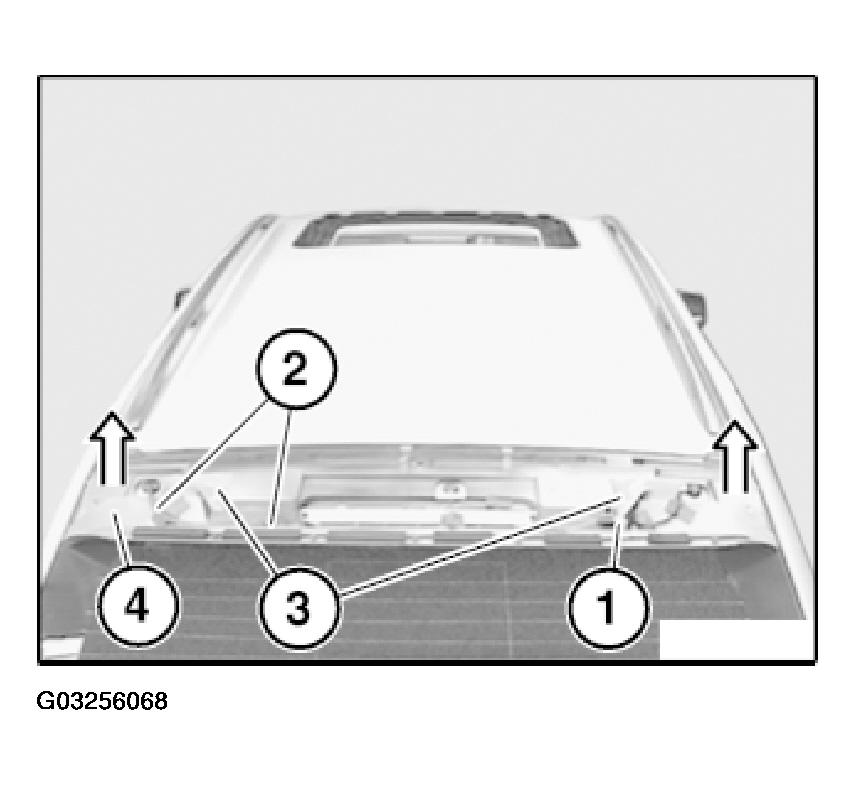

Fig 1: Detaching Water Hose From Jet Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit attachment parts. Refer to 51 71 417 REPLACING REAR SPOILER LOWER SECTION .

Tightening torque, (3 N.m.).
