51 13 115 Removing and installing/replacing cowl panel cover

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove both windshield wiper arms. Refer to 61 61 100 REMOVING AND INSTALLING/REPLACING BOTH WINDSHIELD WIPER ARMS .

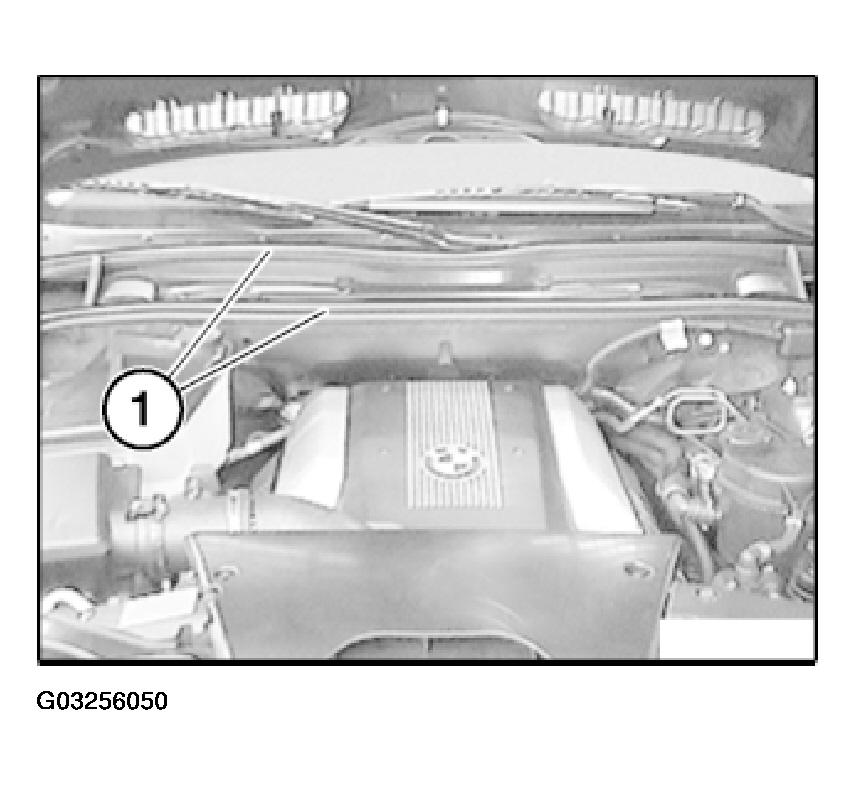

Detach seals (1).

Fig 1: Detaching Seals

G03256050

Courtesy of BMW OF NORTH AMERICA, INC.

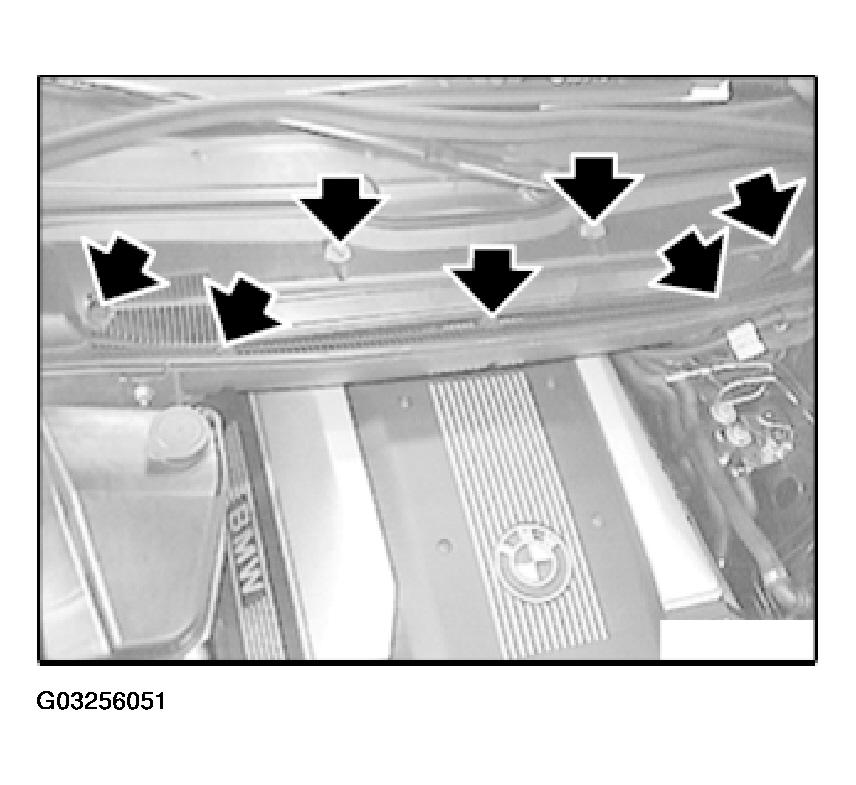

Turn tommy bar through 90° and lift off cover.

Fig 2: Lifting Off Cover

G03256051

Courtesy of BMW OF NORTH AMERICA, INC.

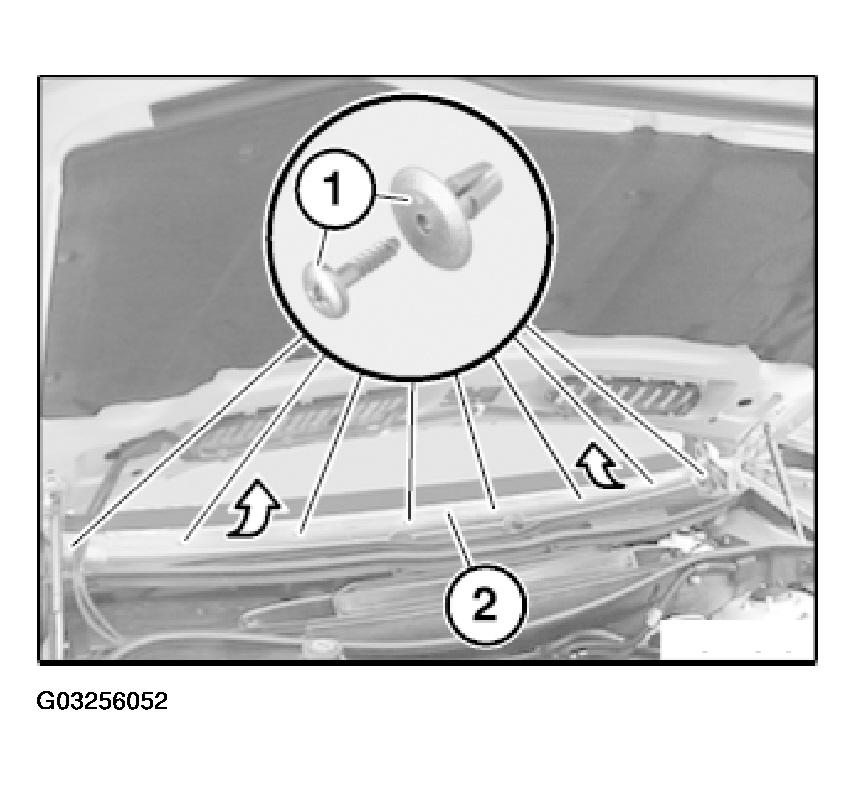

Release expansion rivets (1).

Remove cover (2) for cowl panel.

Fig 3: Identifying Expansion Rivets

G03256052

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

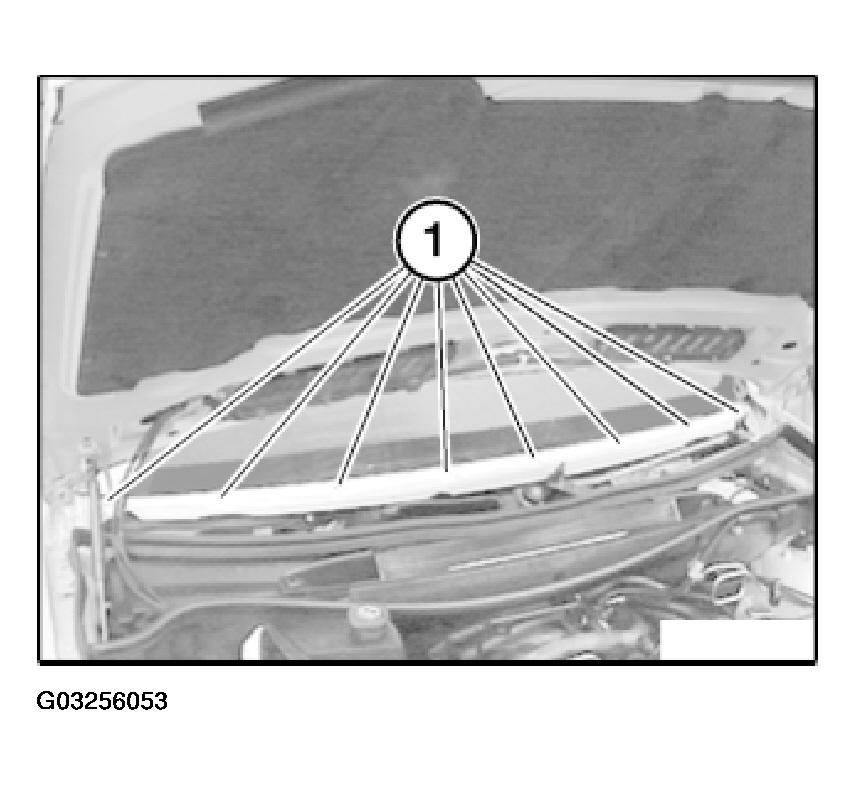

If necessary, replace defective grommets (1).

Fig 4: Locating Grommets

G03256053

Courtesy of BMW OF NORTH AMERICA, INC.

Only Replacement:

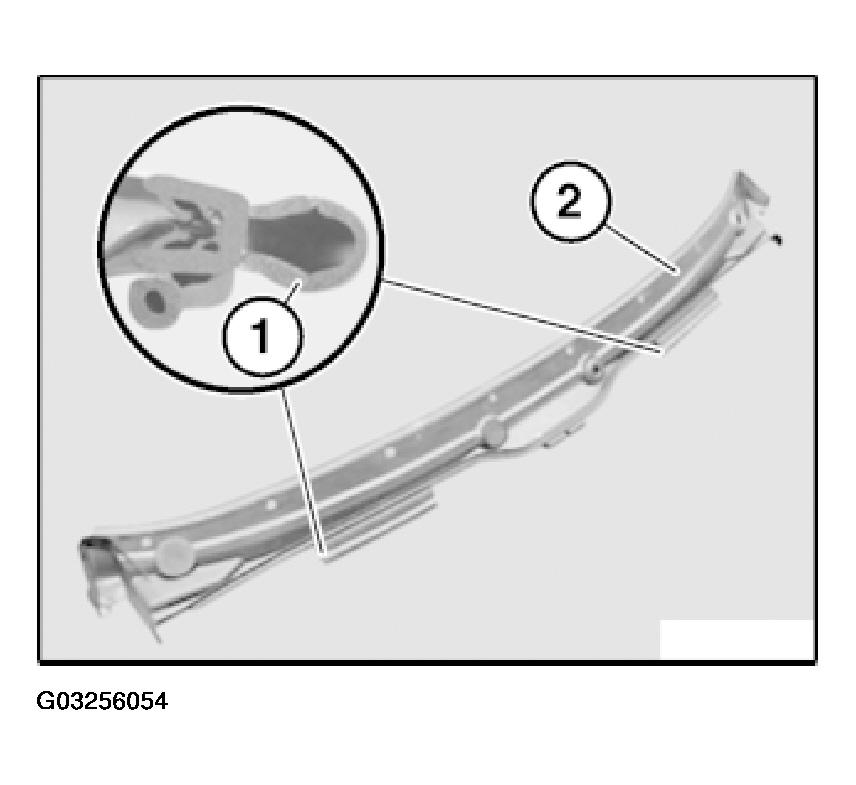

If necessary, detach seals (1) from cover (2).

Fig 5: Detaching Seals From Cover

G03256054

Courtesy of BMW OF NORTH AMERICA, INC.
