51 32 160 Removing and installing/replacing cover (anti-trapping protection) on door window frame, left or right, inside

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Rear for outside trim only:

Carefully lever out clip (1) and lever out cover (2) in rear area.

Additionally for complete removal:

Disconnect plug connection (3).

Carefully lever out clip (4) and lever out cover (2) completely.

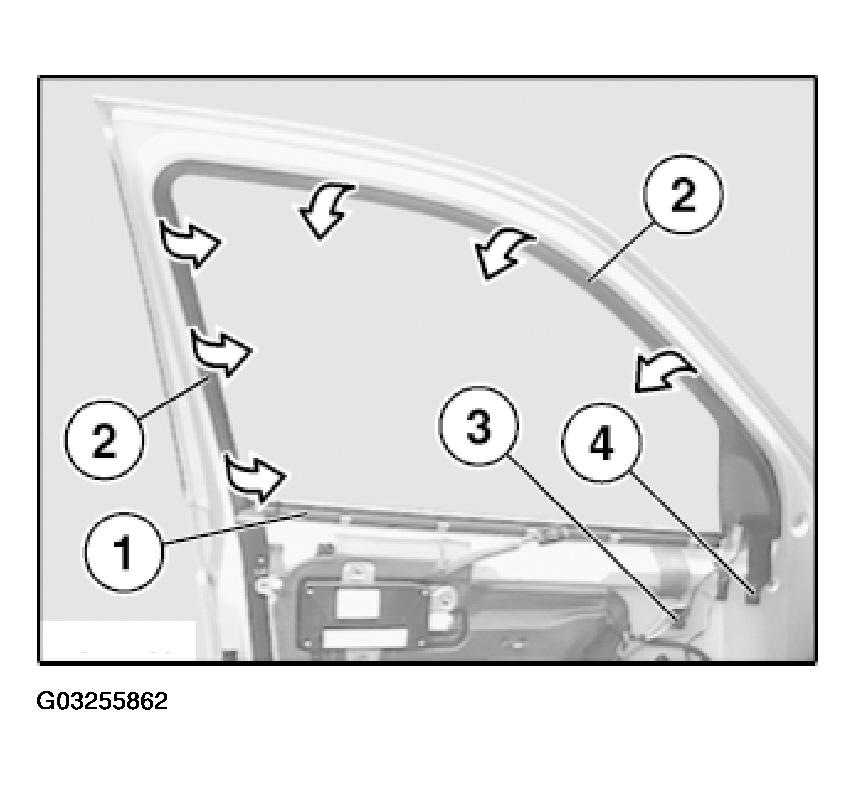

Fig 1: Removing Cover On Door Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If applicable, replace defective clips (1).

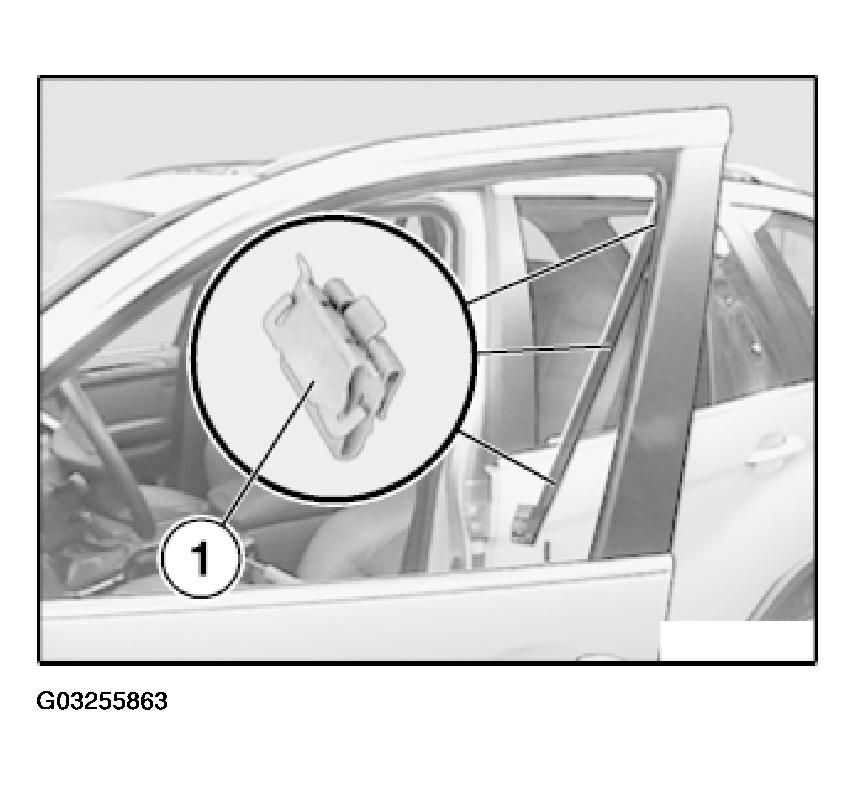

Fig 2: Identifying Door Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) on cover (2) must not be damaged.

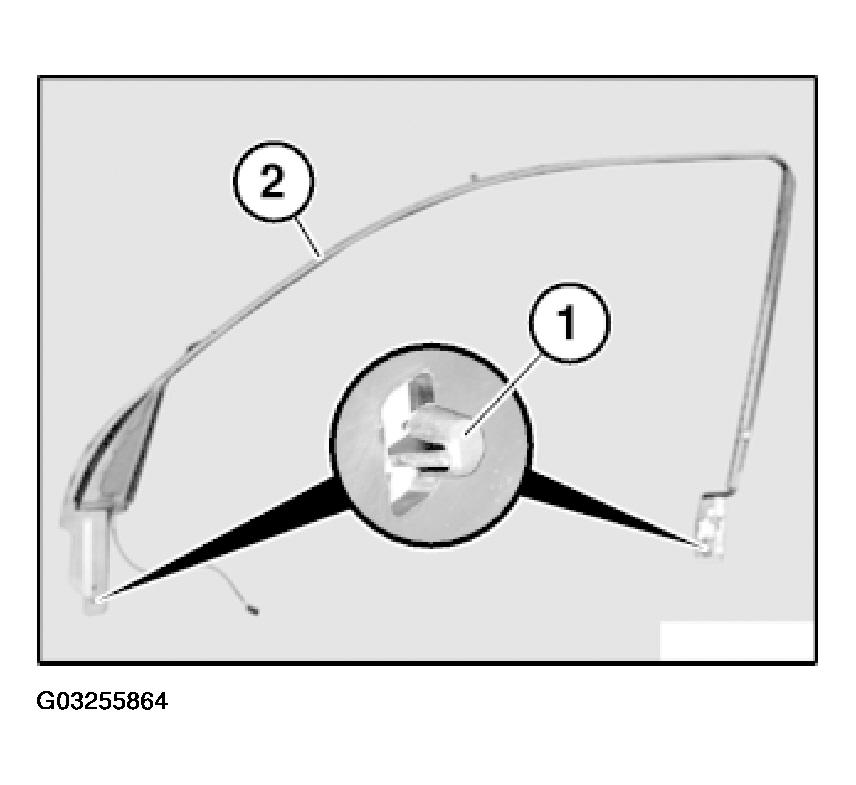

Fig 3: Identifying Clips On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
