63 31 020 Removing and installing/replacing footwell light

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

In Footwell:

Lever out footwell light (1) in direction of arrow.

Disconnect plug connection and remove footwell light (1).

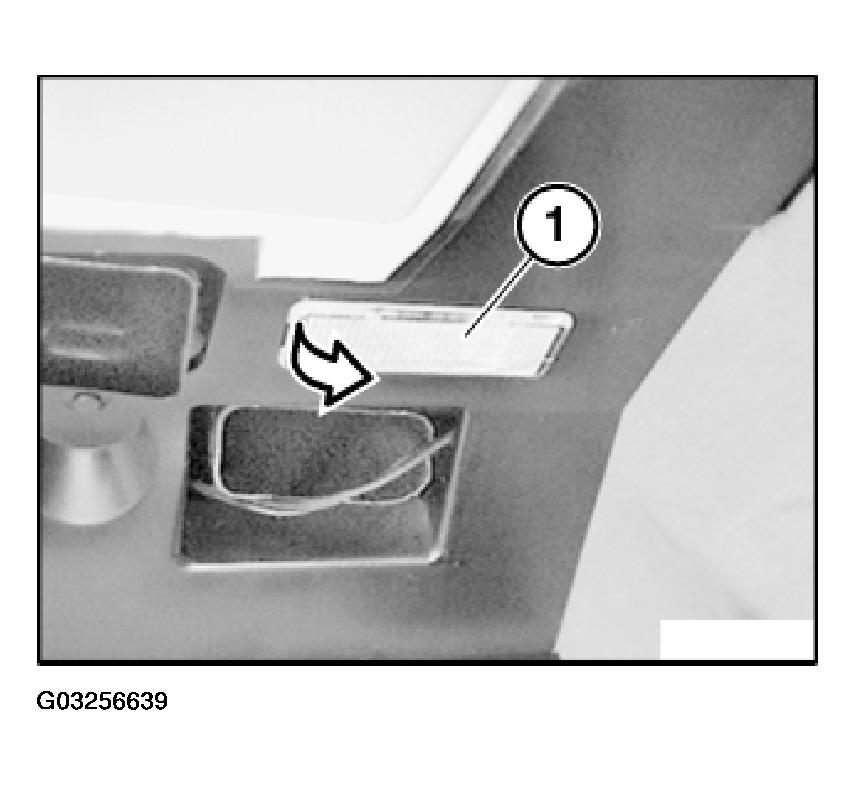

Fig 1: Removing Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.

On Bottom Of Door:

Lever out footwell light (1) in direction of arrow.

Disconnect plug connection and remove footwell light (1).

Fig 2: Removing Footwell Light On Bottom Of Door

Courtesy of BMW OF NORTH AMERICA, INC.
