11 40 000 Checking engine oil pressure

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

11 4 050
13 3 061
13 3 063
13 6 051
13 6 054

NOTE: For engine oil pressure to be checked, oil pressure switch must be removed and special tools must be installed and connected.

To avoid an excess discharge of oil when removing oil pressure switch:

Unscrew oil filter cap; the engine oil flows out of the oil filter housing into the oil sump.

Installation:

Replace sealing ring.

Tightening torque, refer to 11 42 2AZ in ENGINE - TIGHTENING TORQUES .

Remove oil pressure switch.

Installation:

Tightening torque, (27 N.m.).

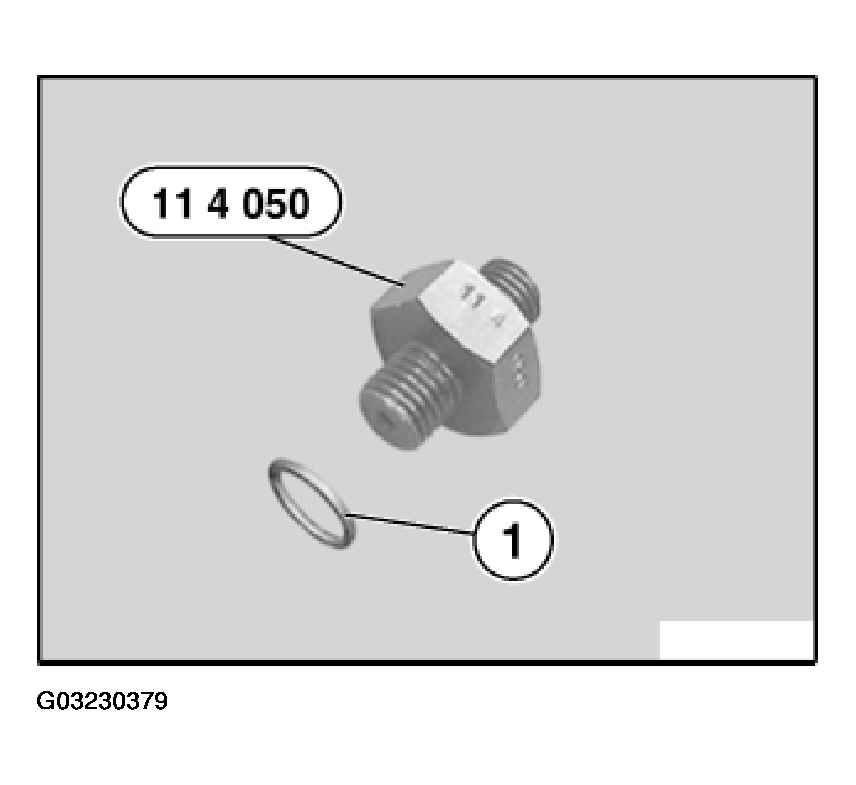

Install special tool 11 4 050 with sealing ring (1) in place of oil pressure switch.

Fig 1: Identifying Oil Pressure Switch Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Checking Engine Oil Pressure With DIS Tester:

Attach special tool 13 6 054 with sealing ring (1) and special tool 13 6 051 and connect to DIS Tester.

Checking Engine Oil Pressure With Pressure Gauge:

Install special tool 13 3 063 and special tool 13 3 061 (pressure gauge).

Start engine and check engine oil pressure.

Specified value, refer to ENGINE - TECHNICAL DATA .

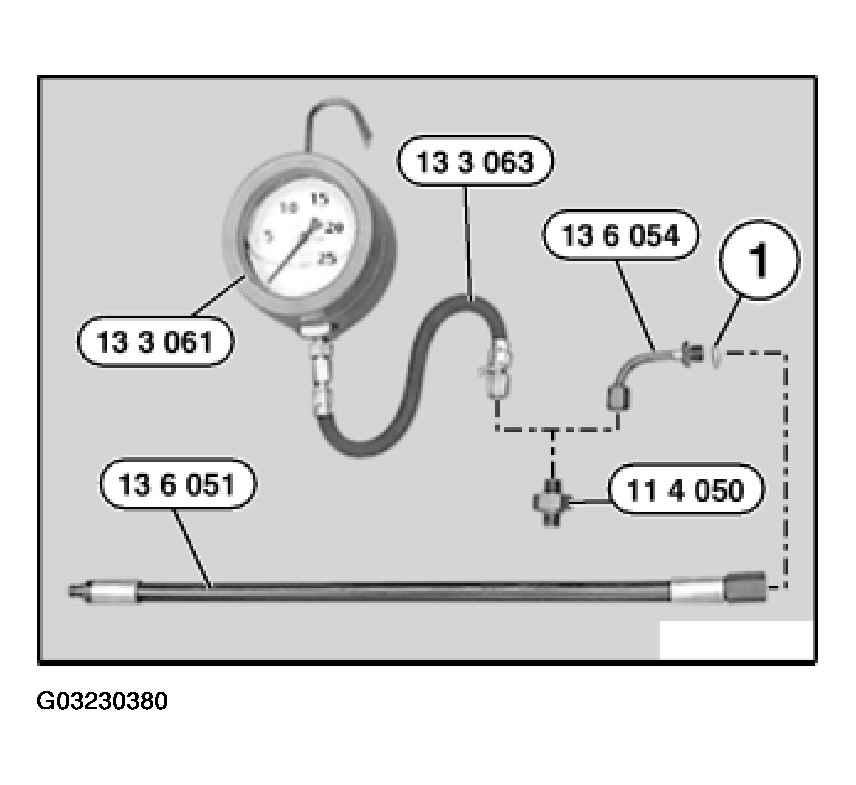

Fig 2: View Of Pressure Gauge Assembly

Courtesy of BMW OF NORTH AMERICA, INC.
