11 61 050 Removing and installing intake air manifold (M54)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Instructions for disconnecting and connecting battery, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Disconnect negative battery lead.

Remove engine cover.

CAUTION: Do not mix up oxygen monitor sensors for cylinders 1 to 3 and 4 to 6 at plug connection to wiring harness. Mark plug connections.

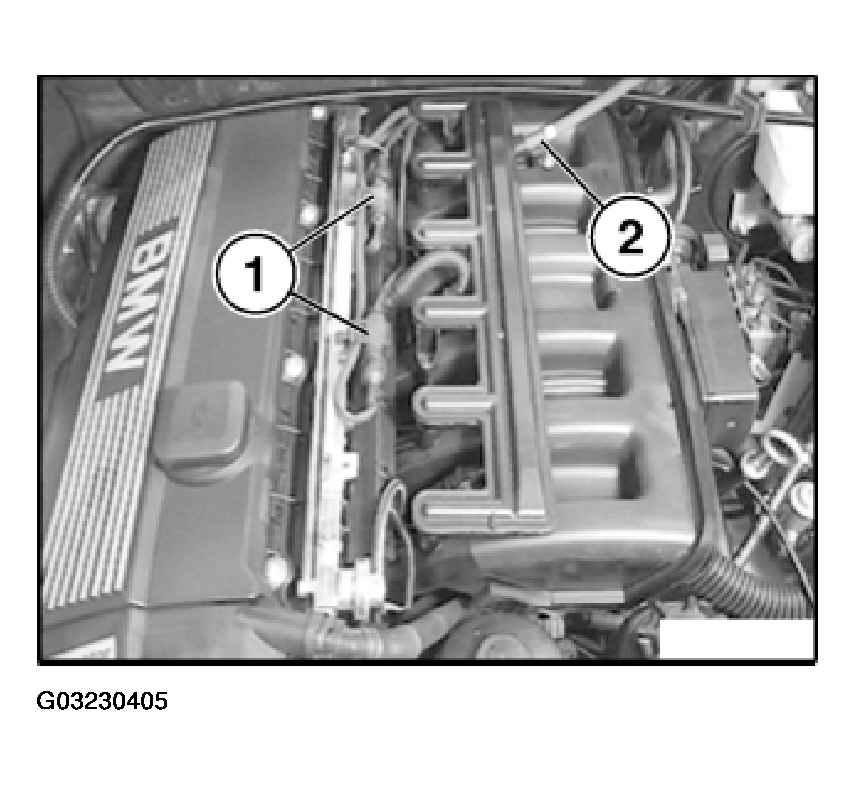

Unclip plug connections (1) from holders.

Detach battery positive lead from intake air manifold.

Detach retainer (2) from battery positive lead.

Fig 1: Detaching Retainer From Battery Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.

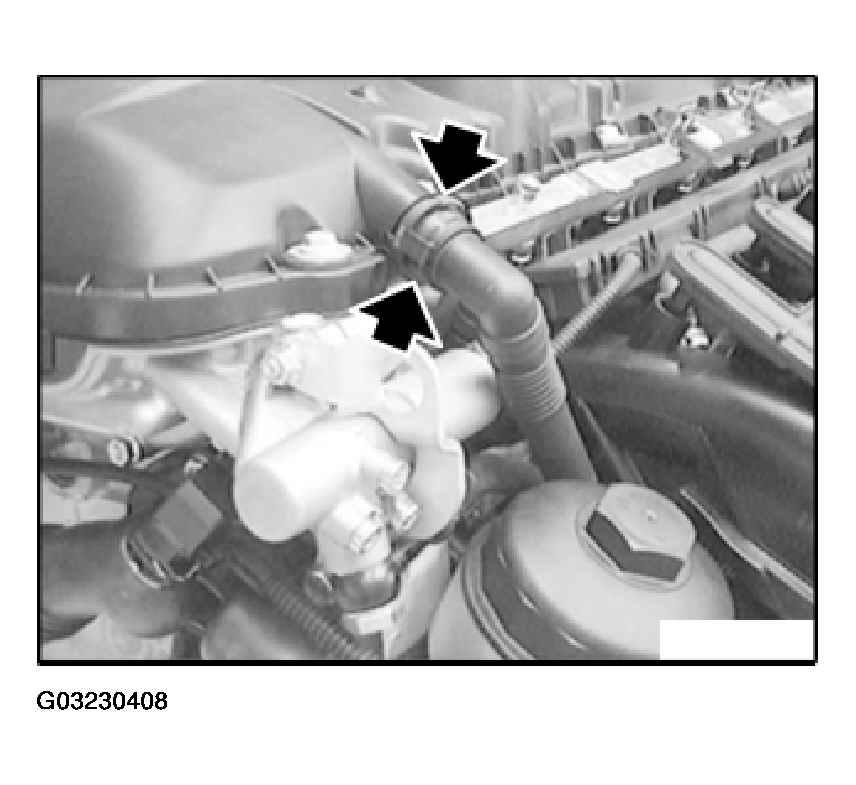

Press lock and detach vent hose from cylinder head cover.

Fig 2: Detaching Vent Hose From Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

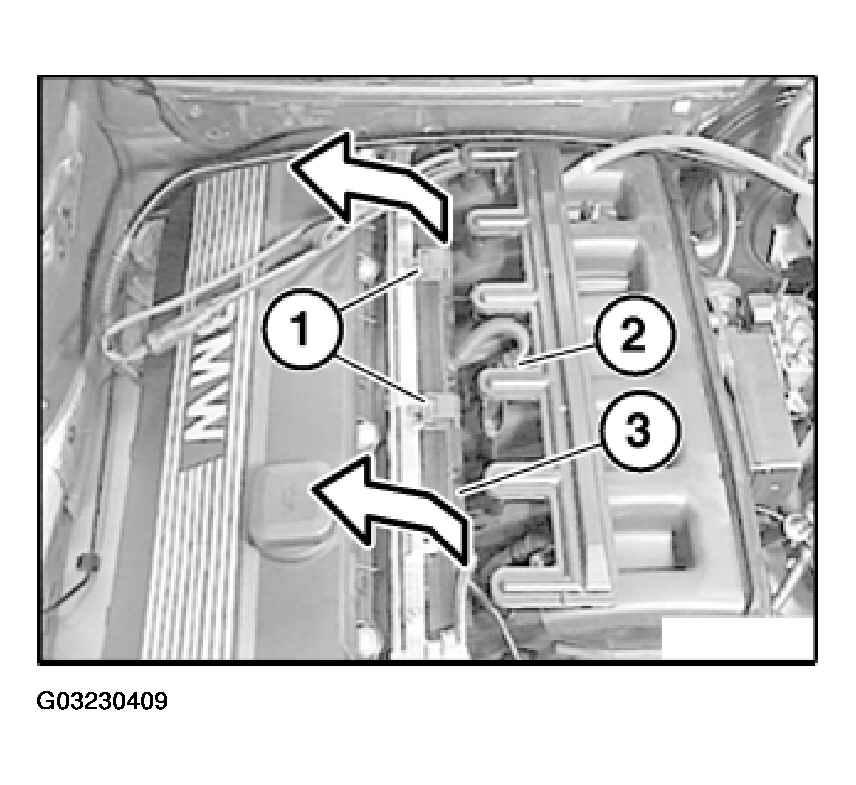

Pull off retainer (1).

Disconnect plug connection (2) for intake air temperature sensor.

Detach terminal strip (3) from fuel injectors and place to one side.

Fig 3: Removing Retainer, Plug Connections And Terminal Strip

Courtesy of BMW OF NORTH AMERICA, INC.

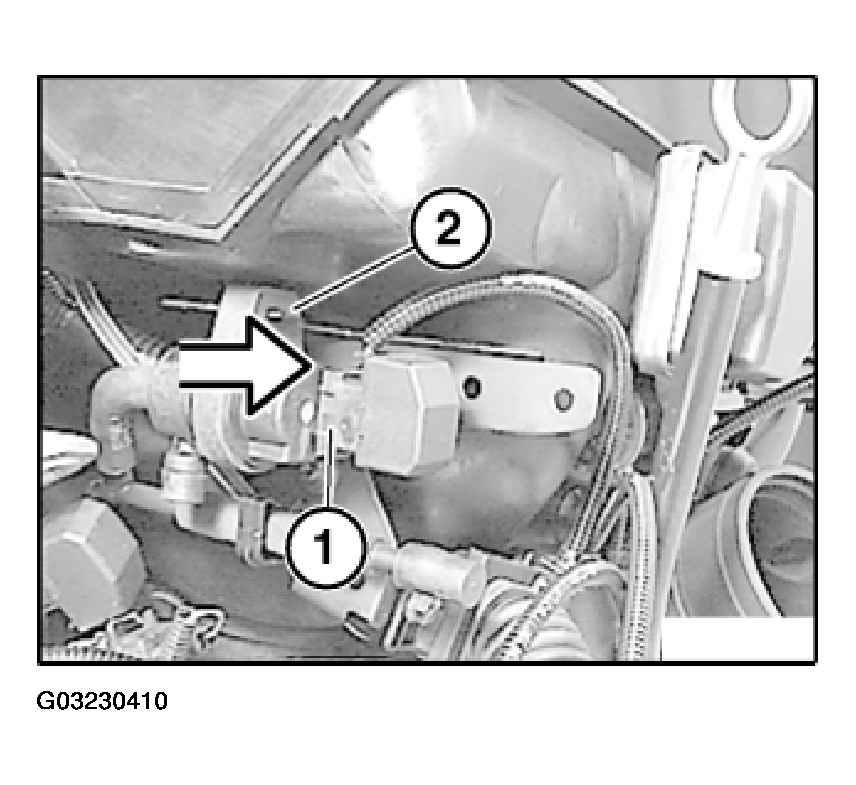

Disconnect plug connection (1) on tank venting valve.

Remove tank venting valve from retainer (2) on manifold.

Fig 4: Removing Tank Venting Valve And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For a better overview, this work step is shown on an engine that has been removed.

CAUTION: Catch and dispose of fuel as it escapes.

Instructions for removing and installing fuel hoses, refer to 13 53 540 REPLACING, SEALING FUEL HOSES .

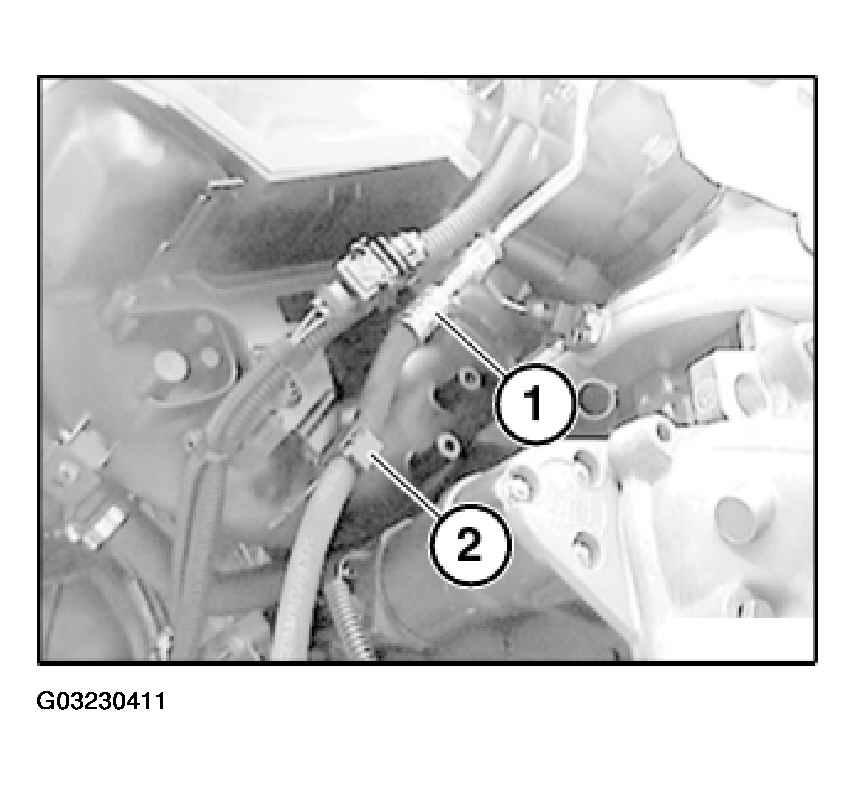

Unclip fuel line (1) from holder (2).

Unlock fuel line (1).

Fig 5: Unclipping Fuel Line

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen guide tube for dipstick.

Press lock and detach return line from guide tube for oil dipstick.

Remove throttle assembly, refer to 13 54 030 REMOVING AND INSTALLING/SEALING THROTTLE ASSEMBLY (M54) .

Disconnect plug connections and lay cable duct to one side.

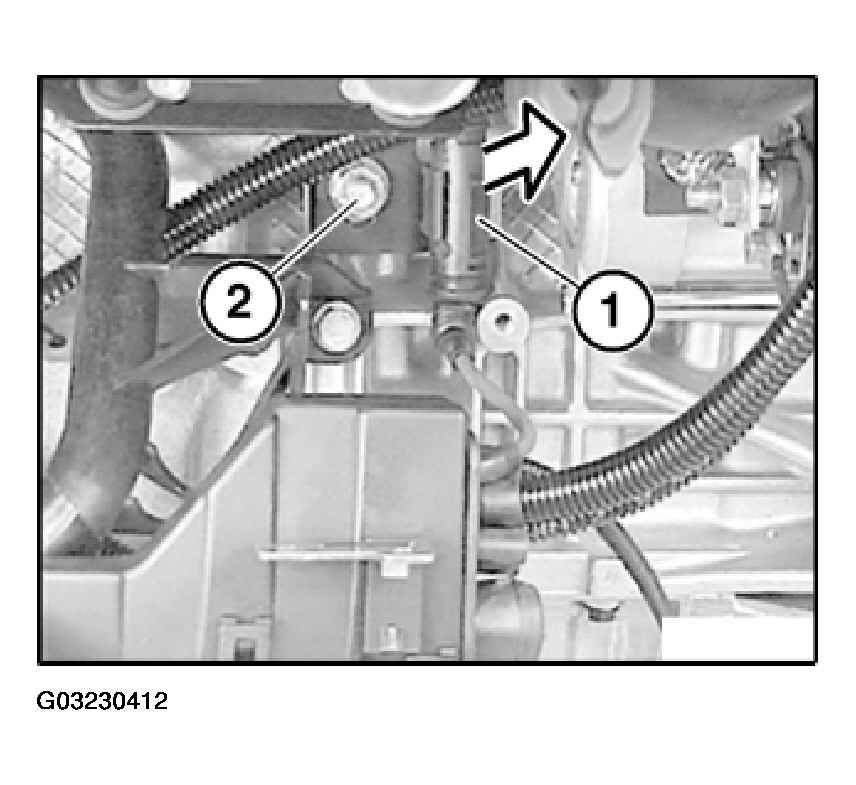

Unclip plug connection (1) for knock sensors from holder.

Release nut (2) on manifold support.

Fig 6: Releasing Plug Connection And Nut On Manifold Support

Courtesy of BMW OF NORTH AMERICA, INC.

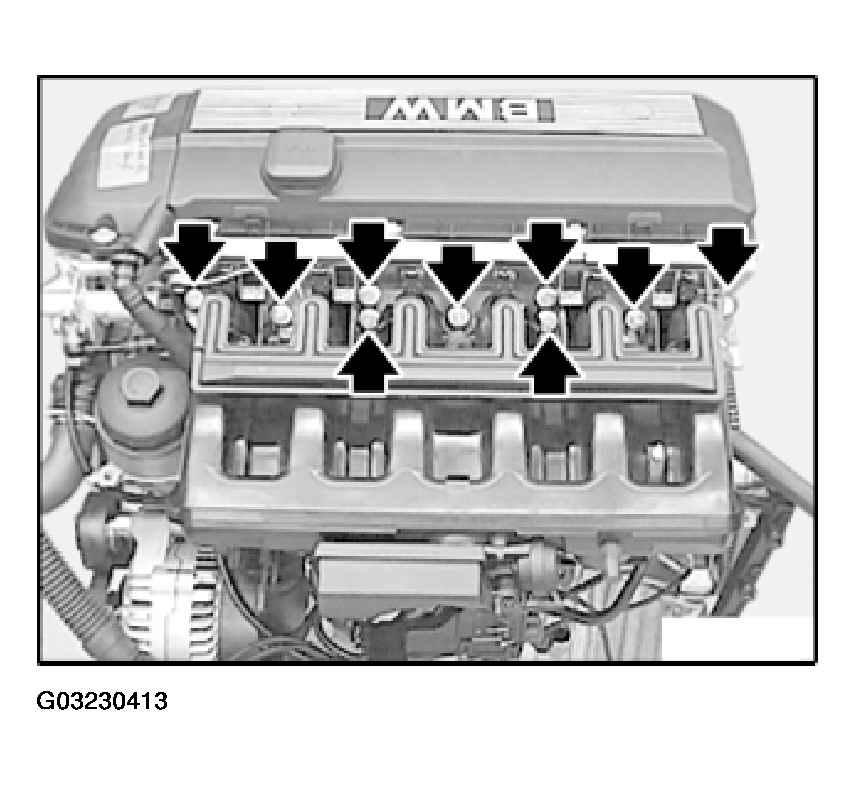

Release nuts on manifold.

NOTE: Engines with air injection:

Detach vacuum line on reverse side of intake air manifold.

Remove intake air manifold.

Fig 7: Locating Nuts On Intake Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

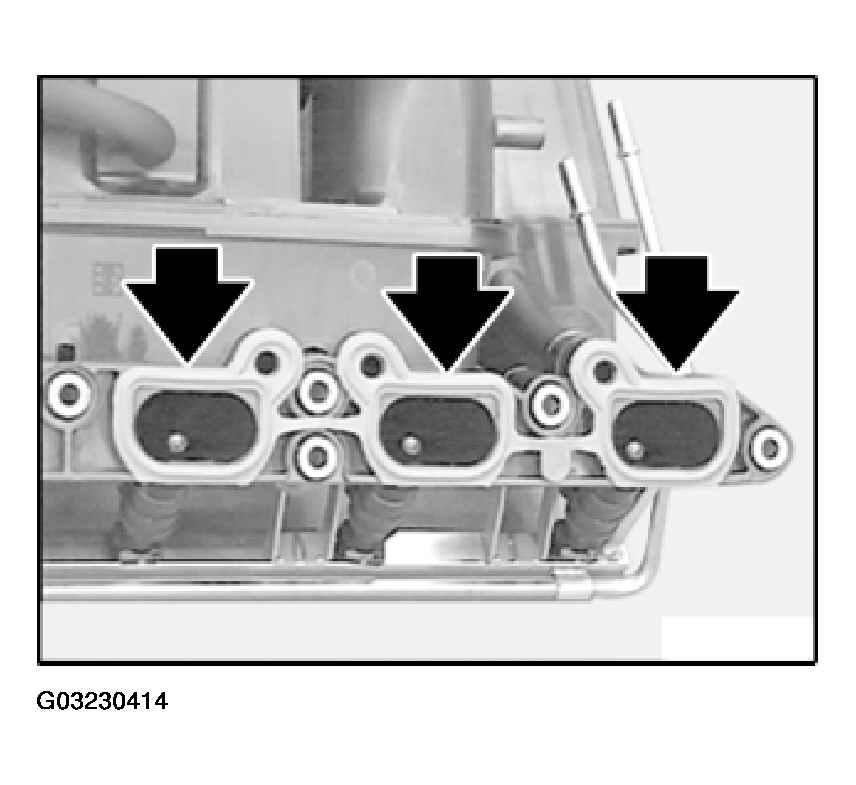

Check gaskets on all cylinders and replace if necessary.

Fig 8: Identifying Intake Manifold Gaskets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

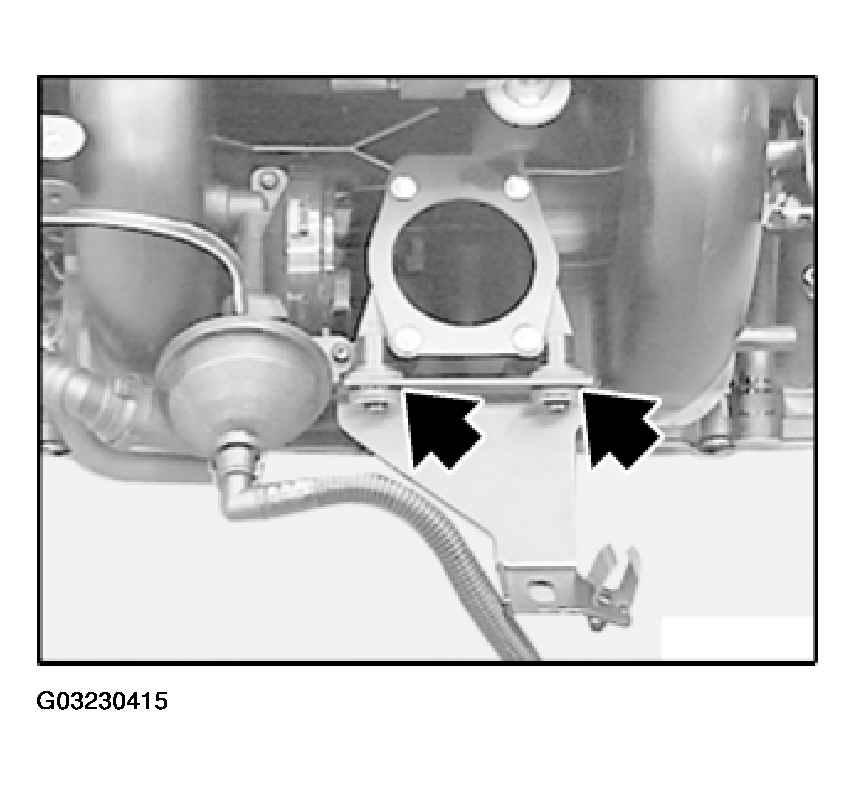

Check rubber dampers and if necessary replace together with manifold support.

Fig 9: View Of Intake Manifold Rubber Dampers

Courtesy of BMW OF NORTH AMERICA, INC.
