11 14 141 Replacing radial seal in lower timing case cover

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

11 2 380
11 2 383
11 2 385
11 3 280

NOTE: This repair instruction is valid for the following engines:

M50 / M52 / M52TU / M54 / M56

Remove vibration damper, refer to 11 23 010 REMOVING AND INSTALLING OR REPLACING VIBRATION DAMPER (M52TU / M54 / M56) .

Fit special tool 11 2 383 to crankshaft.

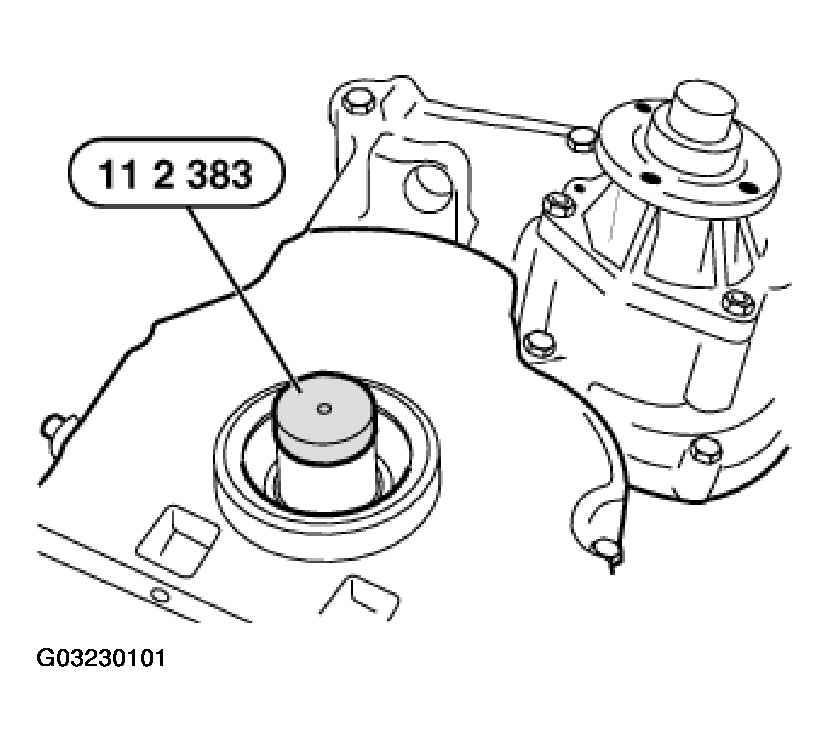

Fig 1: Installing Puller To Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 2 385 to crankshaft.

Align groove of special tool 11 2 385 to featherkey of crankshaft.

NOTE: Special tool 11 2 385 centers special tool 11 2 380 .

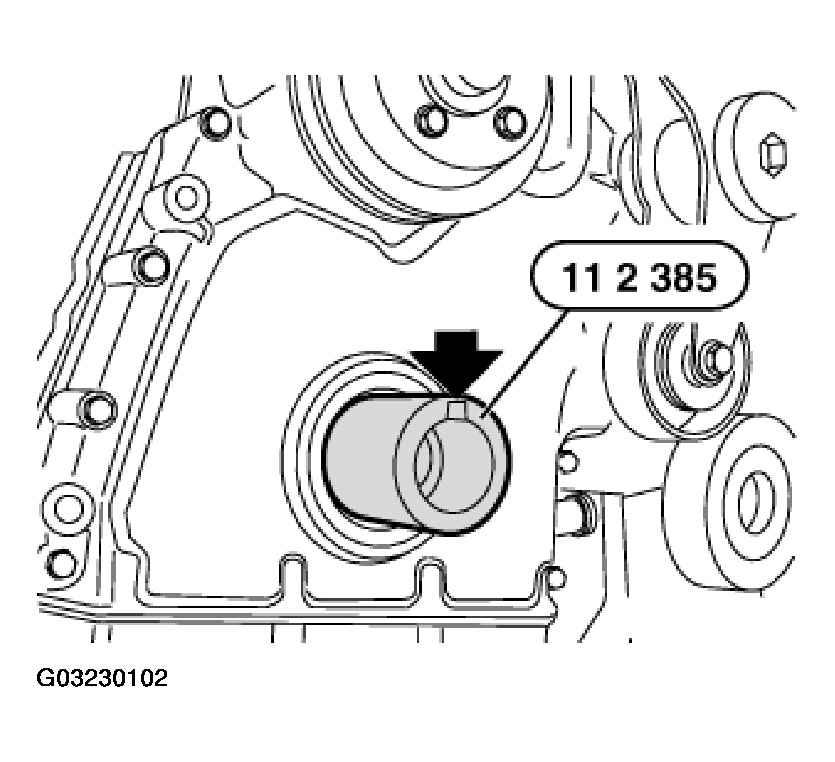

Fig 2: Aligning Groove In Puller To Featherkey Of Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 11 2 380 until it has made firm contact with radial seal.

Remove radial seal by tightening screw on special tool.

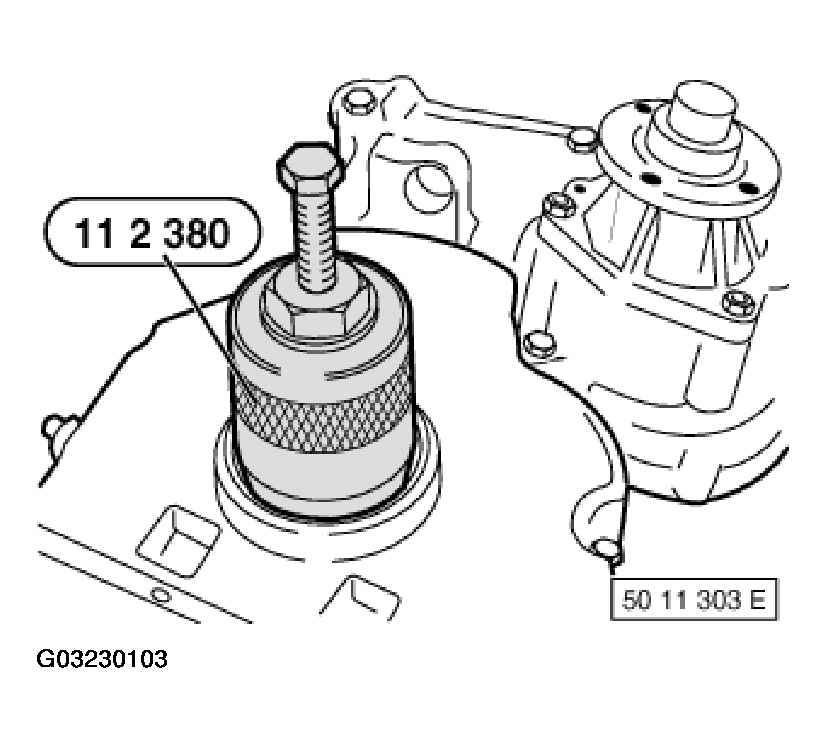

Fig 3: Removing Radial Seal With Puller

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat sealing lips of new radial sealing ring with oil.

Using special tool 11 3 280 and centering screw, install new radial seal flush with timing case cover.

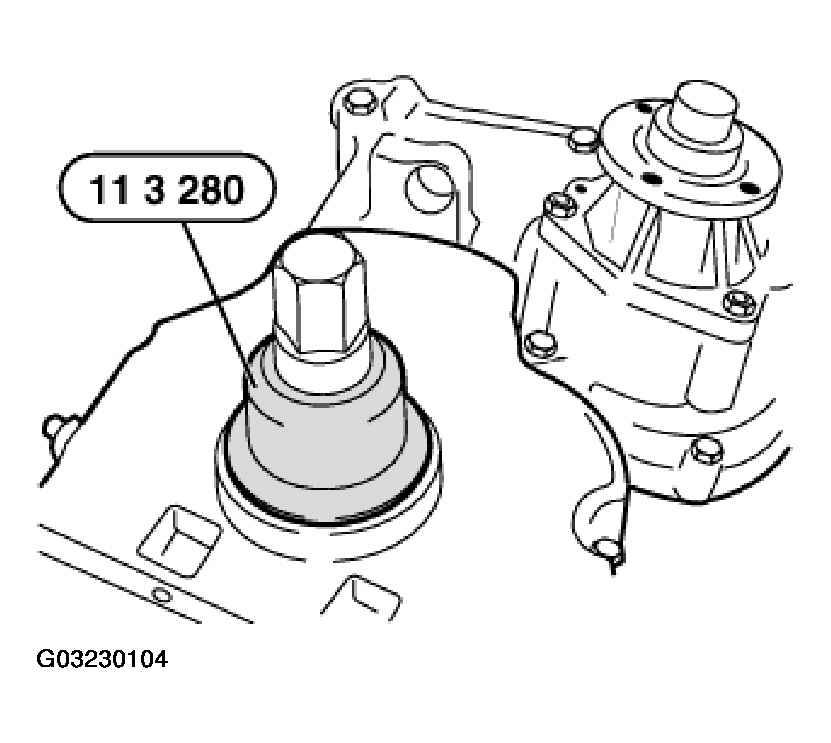

Fig 4: Installing Radial Seal Using Puller

Courtesy of BMW OF NORTH AMERICA, INC.
