11 14 110 Removing and installing lower timing case cover (M52 / S52 / M52TU / M54)
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Remove VANOS adjustment unit, refer to 11 36 010 REMOVING AND INSTALLING OR REPLACING DOUBLE VANOS ADJUSTMENT UNIT (M52TU / M54 / M56) .
Remove coolant thermostat, refer to 11 53 000 REMOVING AND INSTALLING/REPLACING COOLANT THERMOSTAT (M52TU / M54 / M56) .
Remove alternator drive belt and drive belt tensioner.

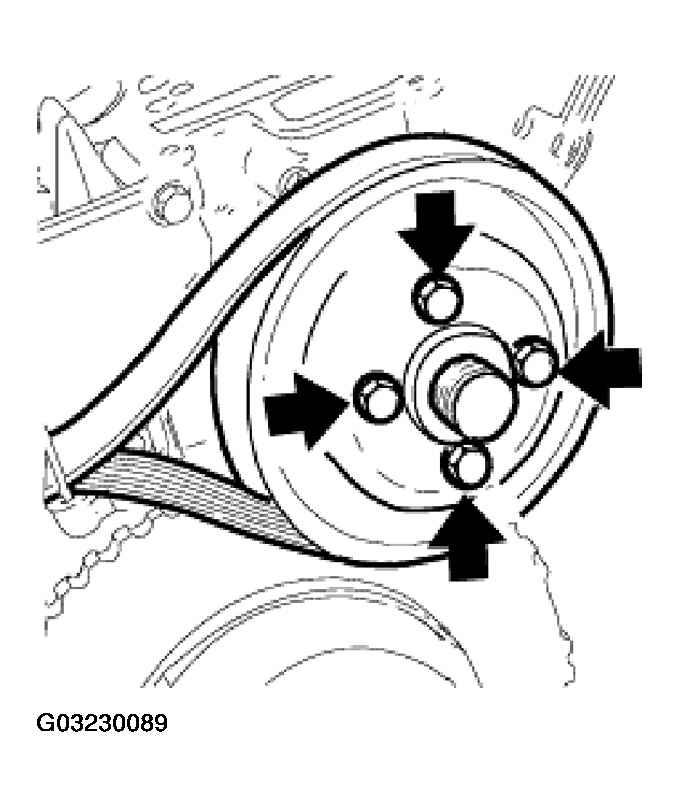

Brace pulley for water pump with drive belt and unfasten screws.
