11 22 513 Replacing roller bearing for dual-mass flywheel

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

21 2 051
21 2 052

NOTE: Flywheel removed!

Using hydraulic press (1) and special tool 21 2 051 , press out dual-mass flywheel downwards on engine side.

Important!

Risk of damage:

Roller bearing must not be driven out.

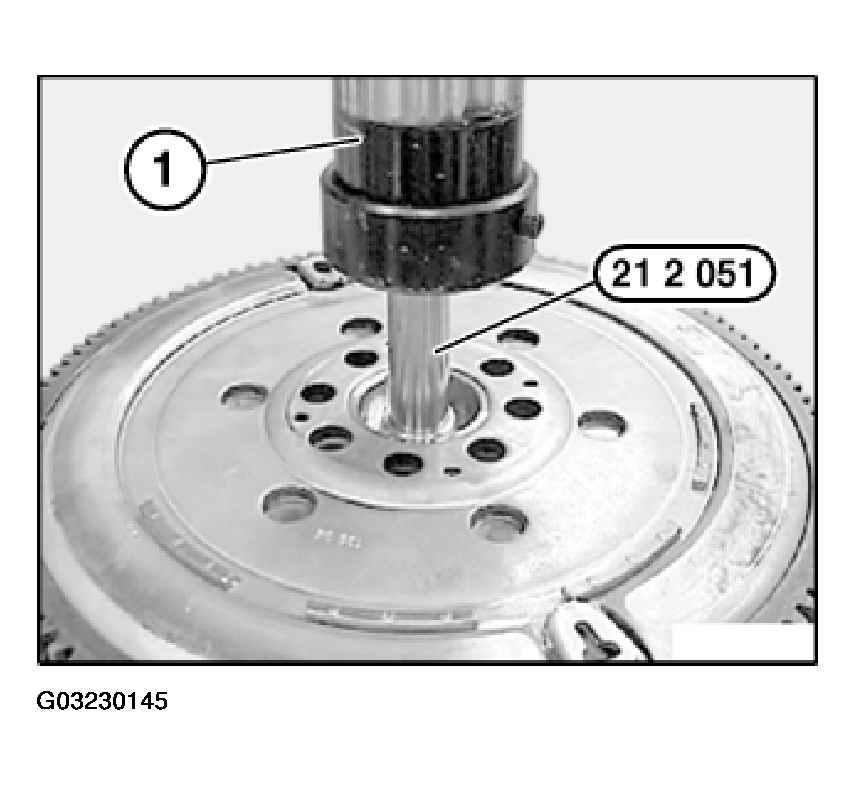

Fig 1: Pressing Out Dual-Mass Flywheel Using Mandrel

Courtesy of BMW OF NORTH AMERICA, INC.

Push roller bearing (2) onto special tool 21 2 052 .

Using hydraulic press (1), press roller bearing into dual-mass flywheel as far as it will go on clutch side.

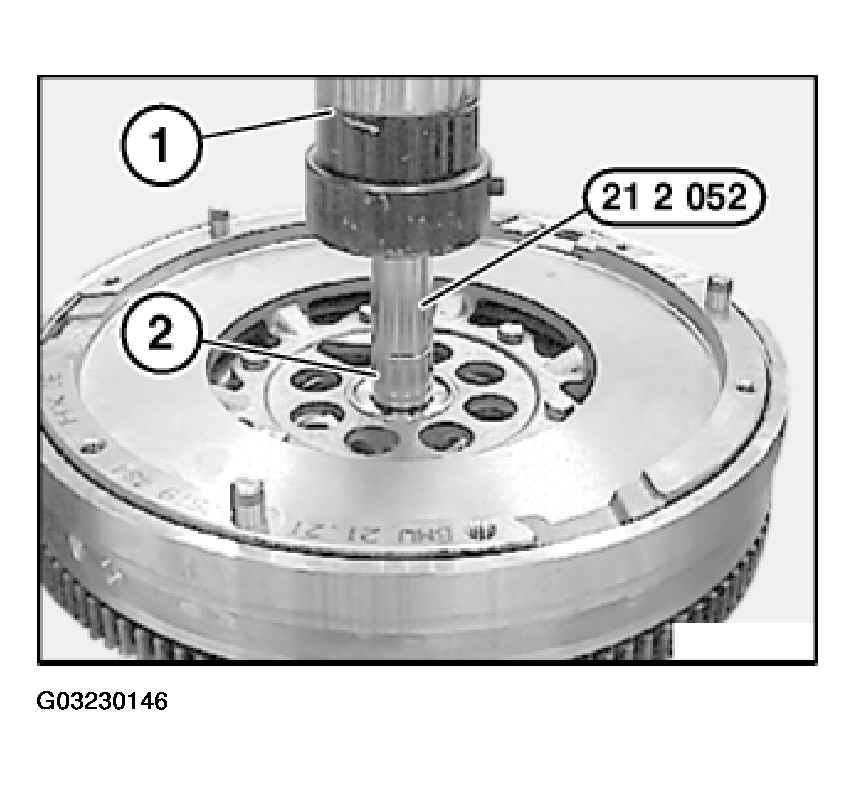

Fig 2: Installing Roller Bearing Into Dual-Mass Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Important!

Risk of damage:

Observe press-in instruction:

Roller bearing must not be driven in.
Roller bearing mounting force/travel monitored:
Min. 2000N 1 mm before end of pressing in.

Max. 15000N during entire press-in procedure.
