11 22 500 Removing and installing or replacing flywheel (M52 / S52 / M52TU / M54 / S54)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

11 2 170

(Clutch removed.)

Lock flywheel with special tool 11 2 170 .

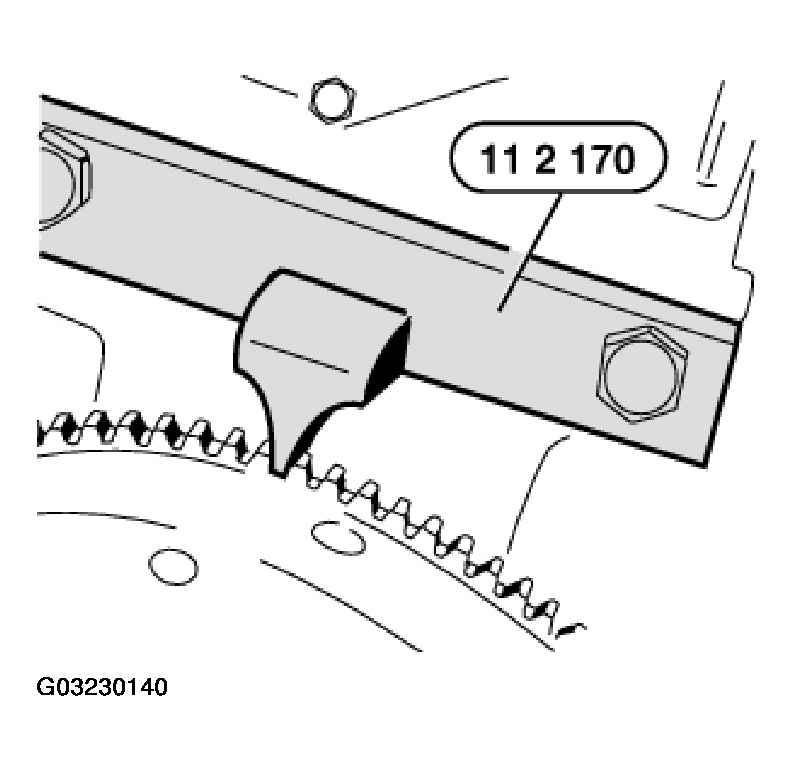

Fig 1: Securing Flywheel Using Holder

G03230140

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove flywheel.

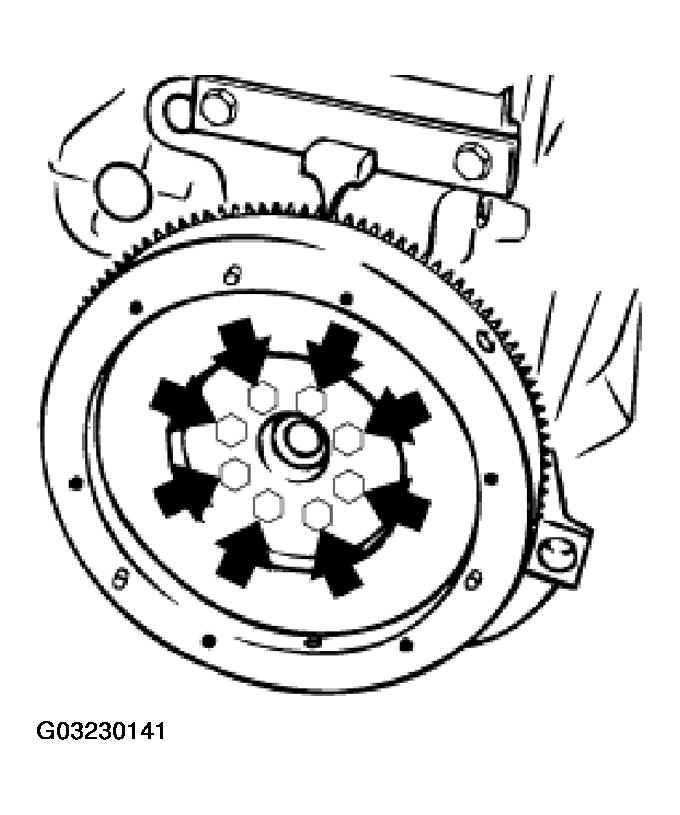

Fig 2: Removing Flywheel

G03230141

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check dowel sleeve for damage and correct installation position.

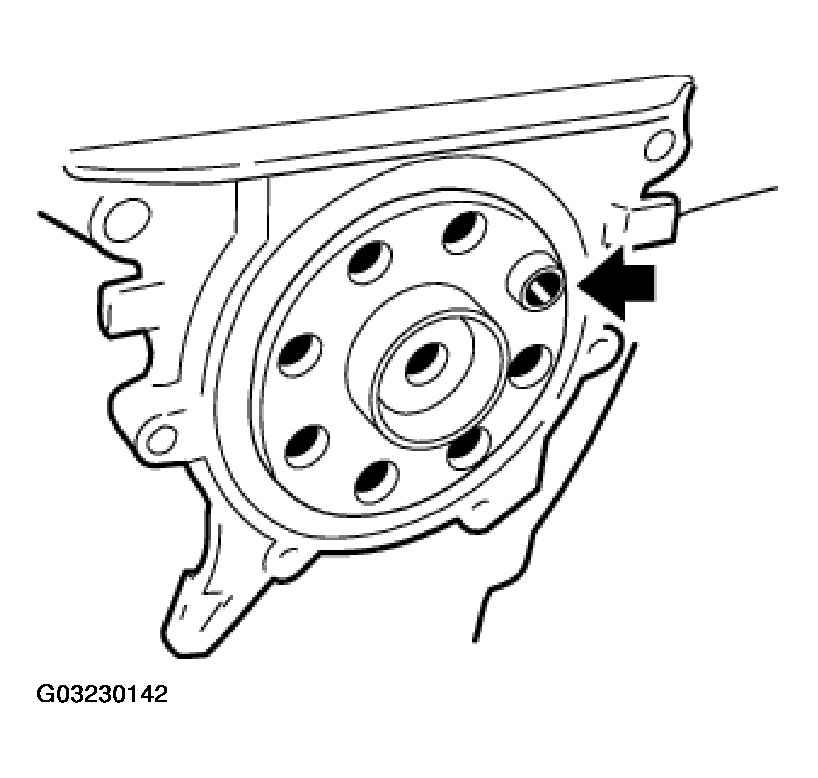

Fig 3: Checking Dowel Sleeves

G03230142

Courtesy of BMW OF NORTH AMERICA, INC.

Position of dowel sleeve (1) in dual-mass flywheel is identified by two notches next to associated bolt hole.

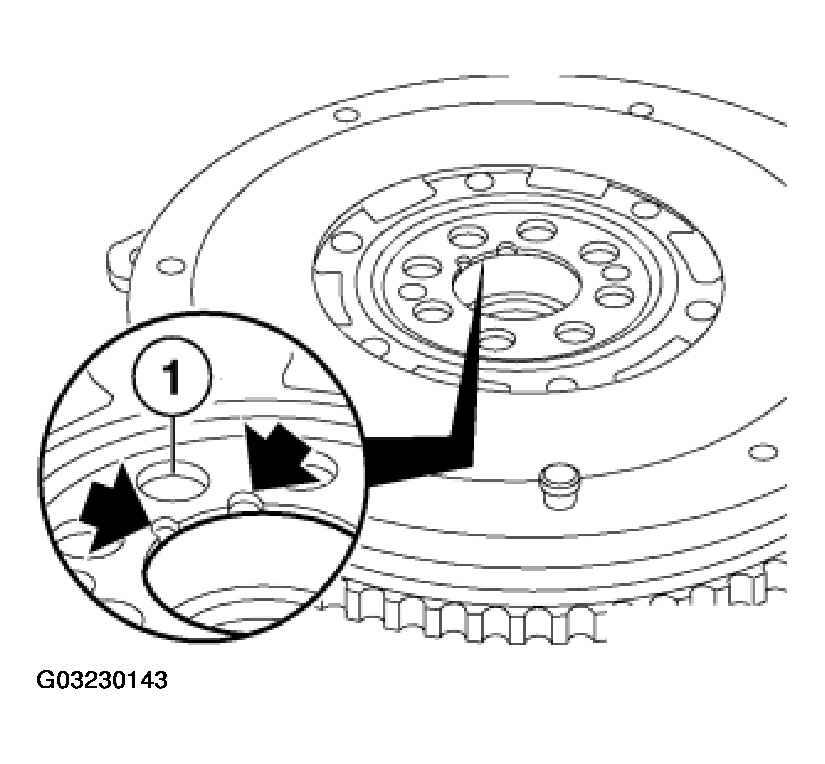

Fig 4: Identifying Notches In Dual-Mass Flywheel

G03230143

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean thread and install new micro-encapsulated screws.

Tightening torque, refer to 11 22 1AZ in ENGINE - TIGHTENING TORQUES .

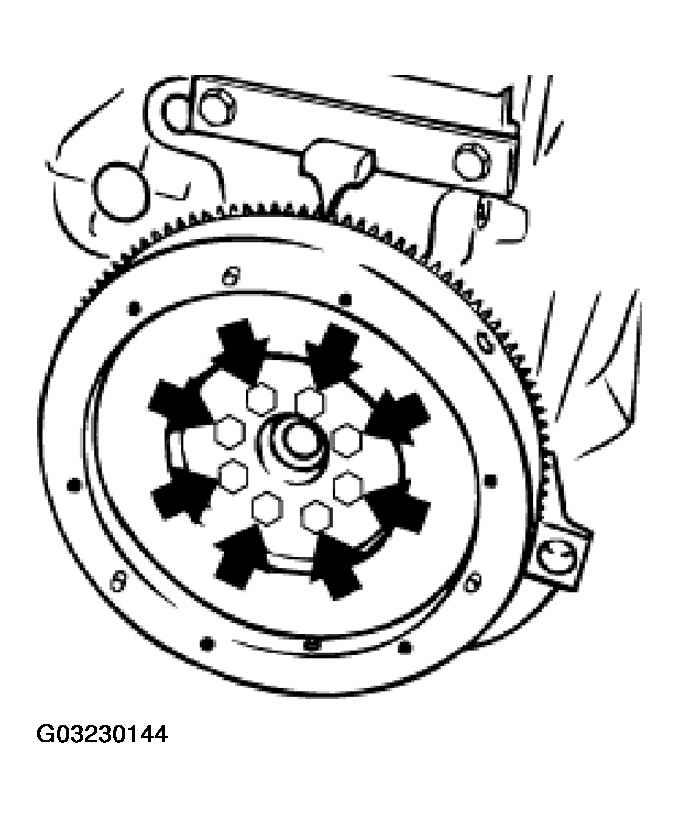

Fig 5: Installing Micro-Encapsulated Screws

G03230144

Courtesy of BMW OF NORTH AMERICA, INC.
