11 12 000 Removing and installing, sealing cylinder head cover (M52TU / M54 / M56)

Remove engine cover.

Remove ignition coils, refer to 12 13 511 REPLACING IGNITION COIL (M52, M52TU, M54) .

Remove wiring harness of ignition coils from cylinder head cover and place to one side.

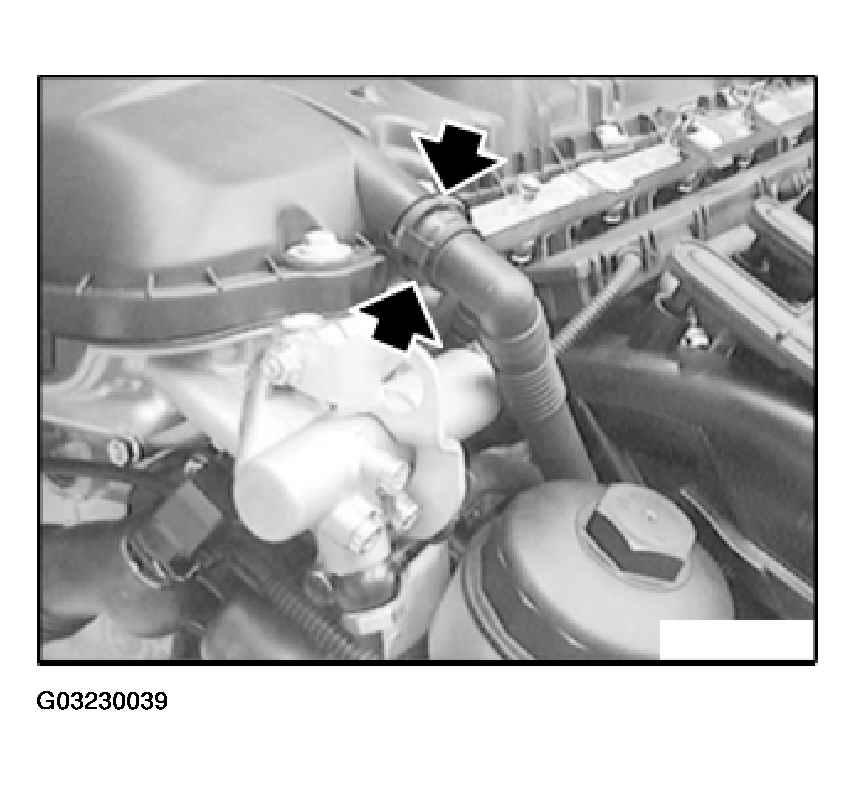

Fig 1: Removing Hose For Engine Breather

Courtesy of BMW OF NORTH AMERICA, INC.

Remove grounding straps (1).

Remove cylinder head cover, refer to 11 12 000 REMOVING AND INSTALLING, SEALING CYLINDER HEAD COVER (M52TU / M54 / M56) .

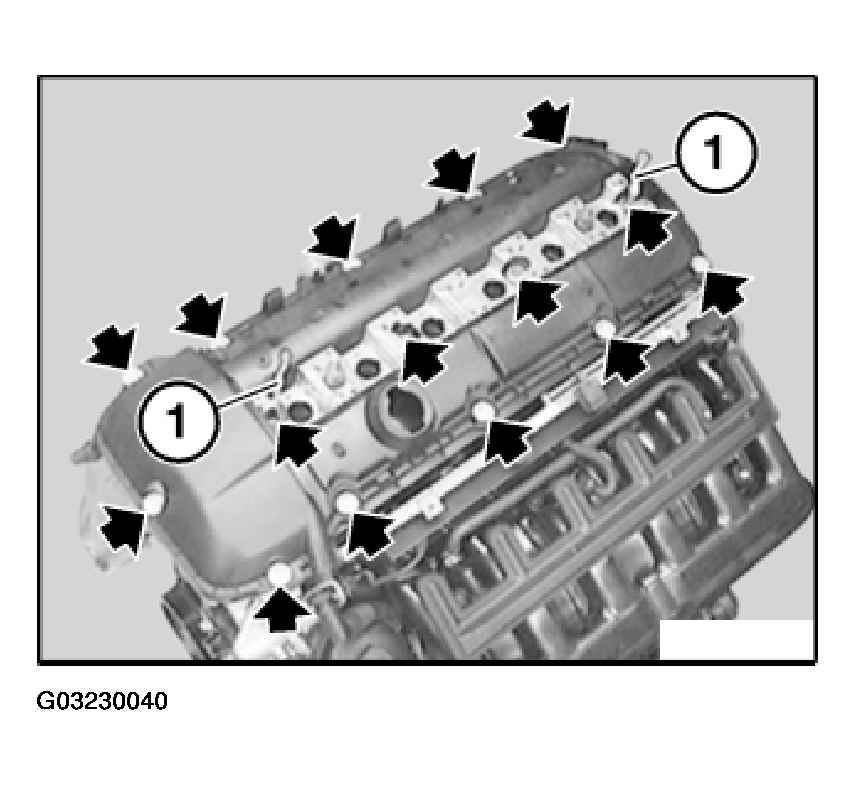

Fig 2: Removing Grounding Straps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove sealing debris from sealing faces of cylinder head and cylinder head cover.

Apply a sealing bead of Drei Bond 1209 on left and right sides at transition between cylinder head and VANOS adjustment unit.

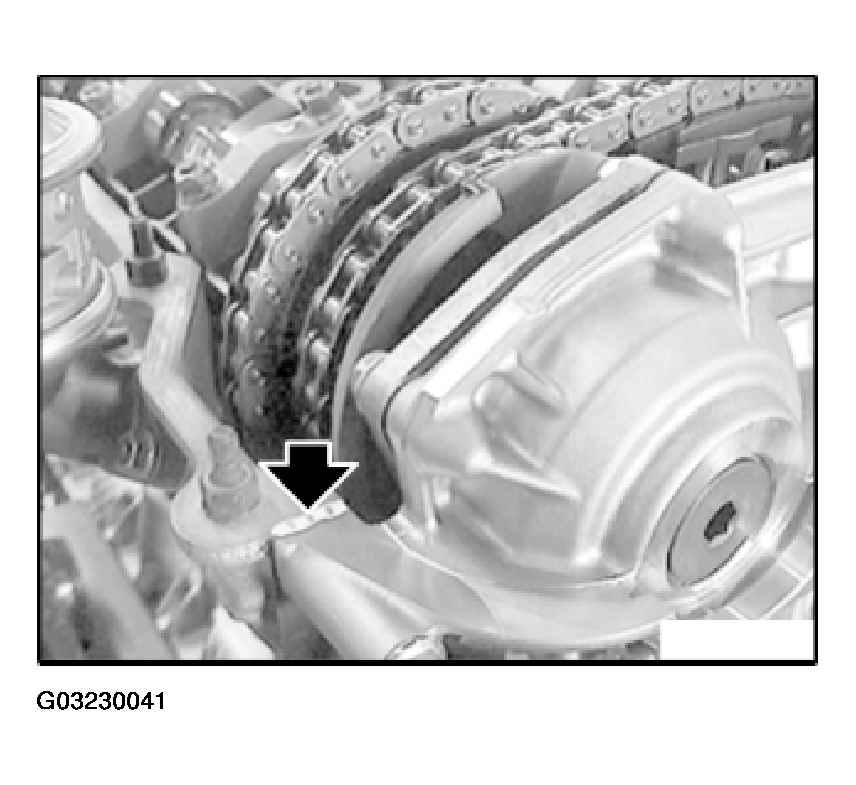

Fig 3: Applying Sealant Between Cylinder Head And VANOS Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Apply a thin and even sealing bead of Drei Bond 1209 at transition to half-moon sections at VANOS adjustment unit.

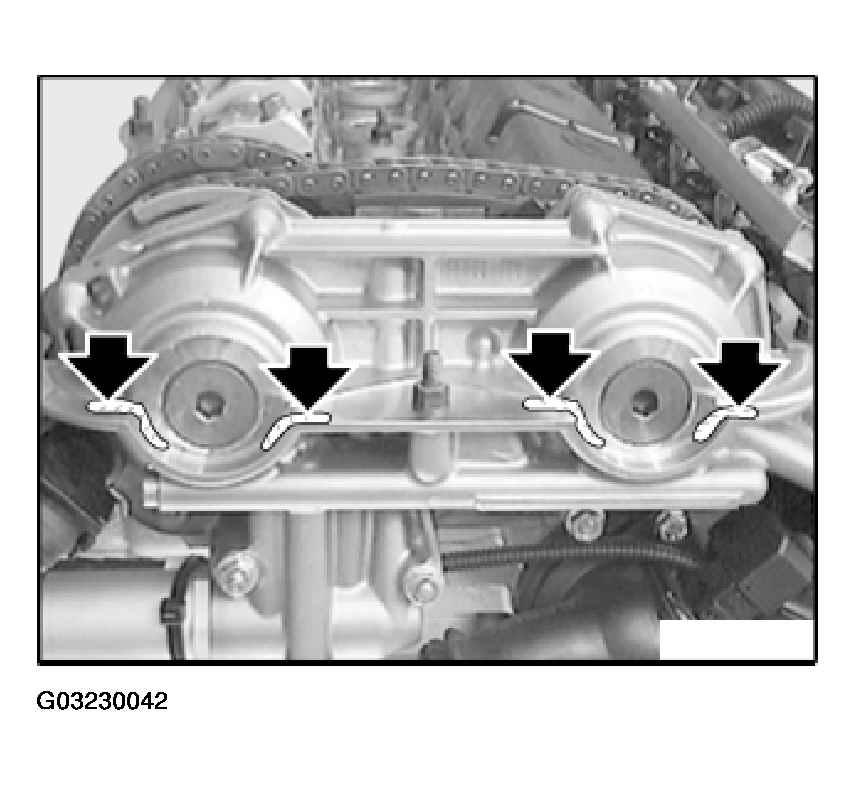

Fig 4: Applying Sealant To VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Apply a thin and even sealing bead of Drei Bond 1209 at transition to half-moon sections at rear of cylinder head.

Check seals and replace if necessary.

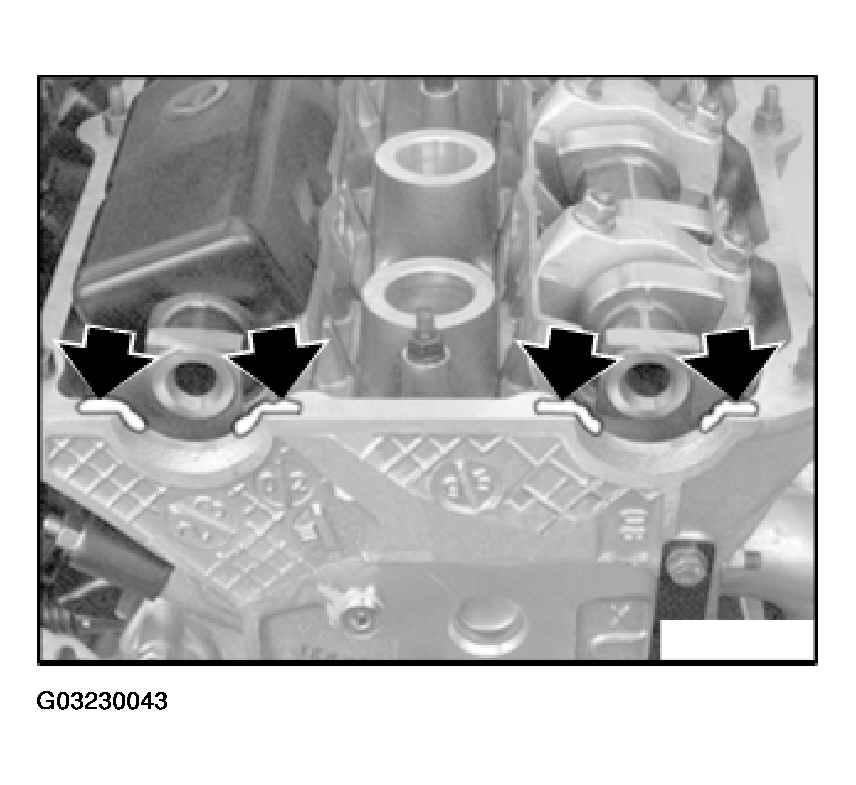

Fig 5: Applying Sealant To VANOS Adjustment Unit (Rear)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure gasket is correctly seated on rear and front ends of cylinder head.

Install cover bolts and align cylinder head cover.

Hand-tighten all cover bolts without preload. Tighten cap nuts crosswise from inside to outside.

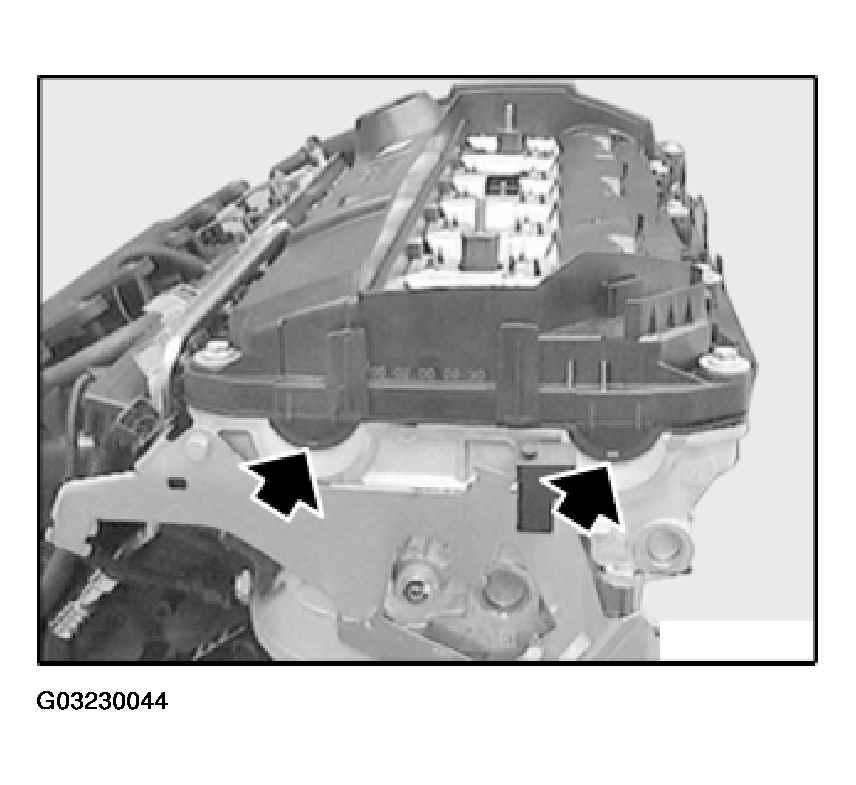

Fig 6: Locating Half-Moon Gaskets On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.
