65 12 070 Removing and installing or replacing amplifier (Z3 roadster Harmann Kardon)

Partly remove panel for luggage compartment separating wall, refer to 51 47 140 REMOVING AND INSTALLING / REPLACING PANEL FOR LUGGAGE COMPARTMENT SEPARATING WALL (Z3 ROADSTER, M ROADSTER) .

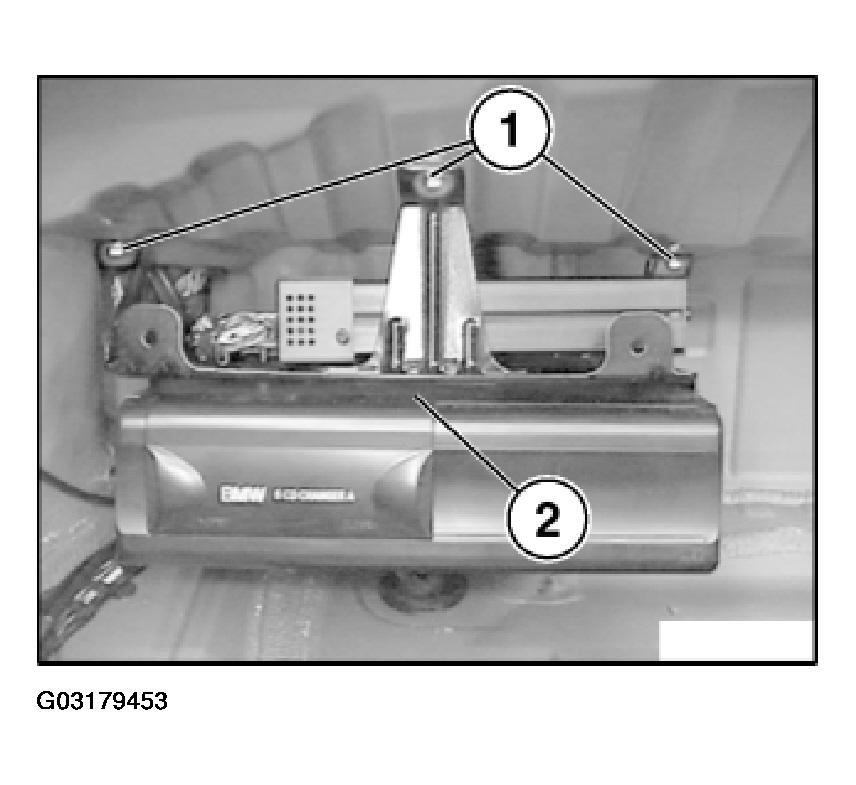

Unfasten screws (1) and lower entire bracket with amplifier and, if installed, CD changer.

Fig 1: Removing Amplifier (Z3 Roadster Harmann Kardon)

Courtesy of BMW OF NORTH AMERICA, INC.

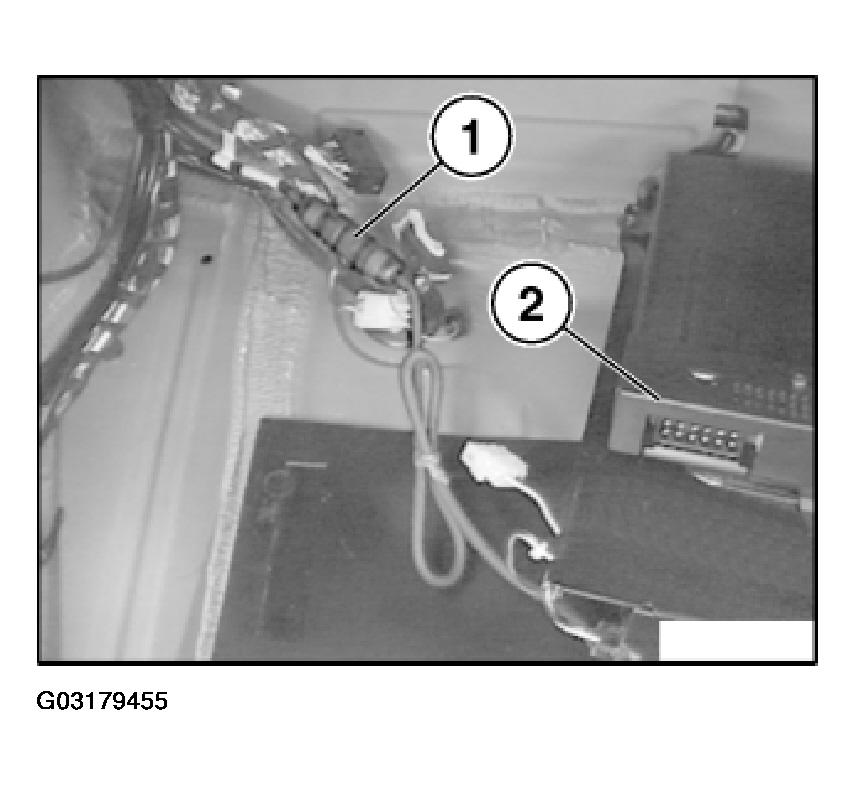

Pull connector (1 and 2) on amplifier.

Fig 2: Pulling Connector Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

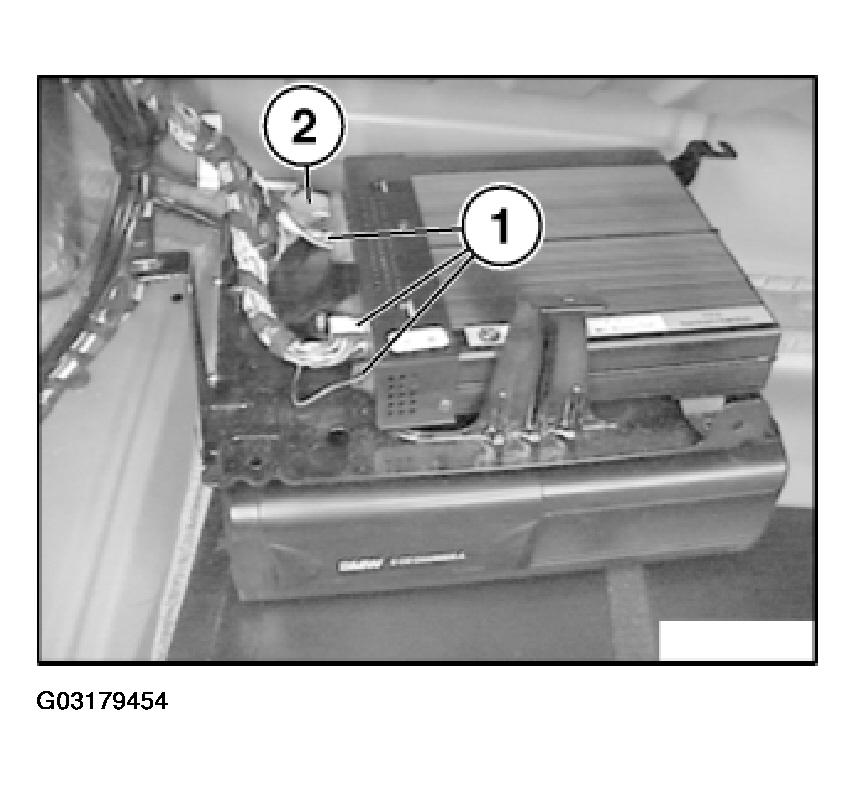

If necessary, disconnect plug connector from CD changer and remove bracket with amplifier and, if installed, CD changer.

Fig 3: Disconnecting Plug Connector From CD Changer

Courtesy of BMW OF NORTH AMERICA, INC.

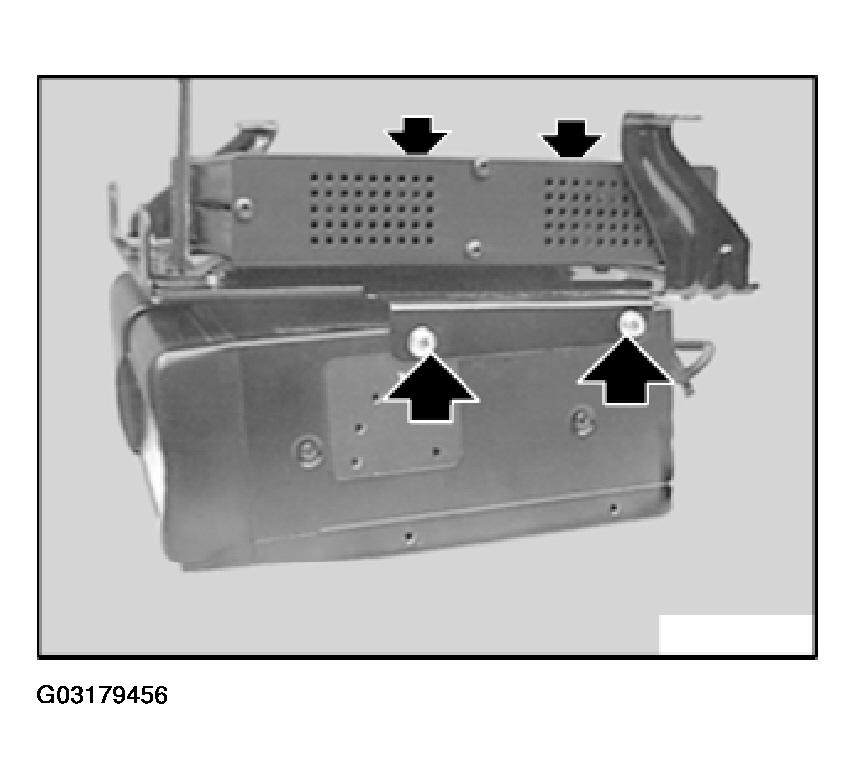

If necessary, unfasten screws on right and left and take CD changer off bracket.

Fig 4: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

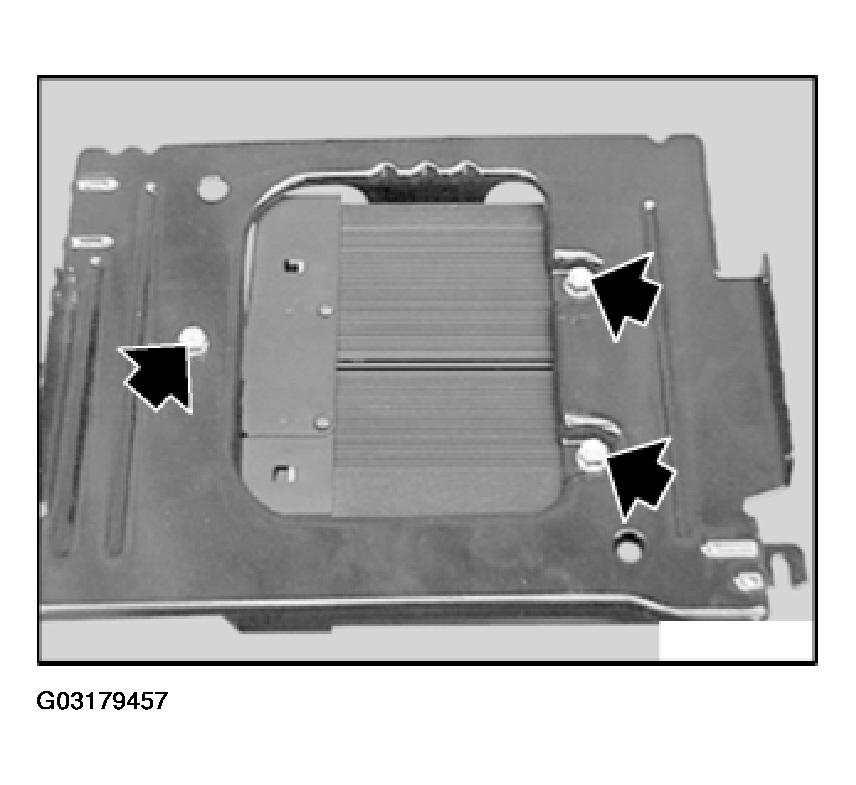

Unfasten screws and remove amplifier.

Fig 5: Removing Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.
