51 47 140 Removing and installing / replacing panel for luggage compartment separating wall (Z3 Roadster, M Roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing/replacing left trunk wheel housing trim, refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT TRUNK WHEEL HOUSING TRIM (Z3 ROADSTER, M ROADSTER) .

Removing and installing/replacing right trunk wheel housing trim, refer to 51 47 161 REMOVING AND INSTALLING / REPLACING RIGHT TRUNK WHEEL HOUSING TRIM (Z3 ROADSTER, M ROADSTER) .

Removing and installing luggage compartment light, refer to 63 31 080 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT LIGHT (Z3, M ROADSTER) .

Version Without Hi-Fi System, Without CD Changer:

Unfasten clips (1) and remove trim (2) for luggage compartment separating wall.

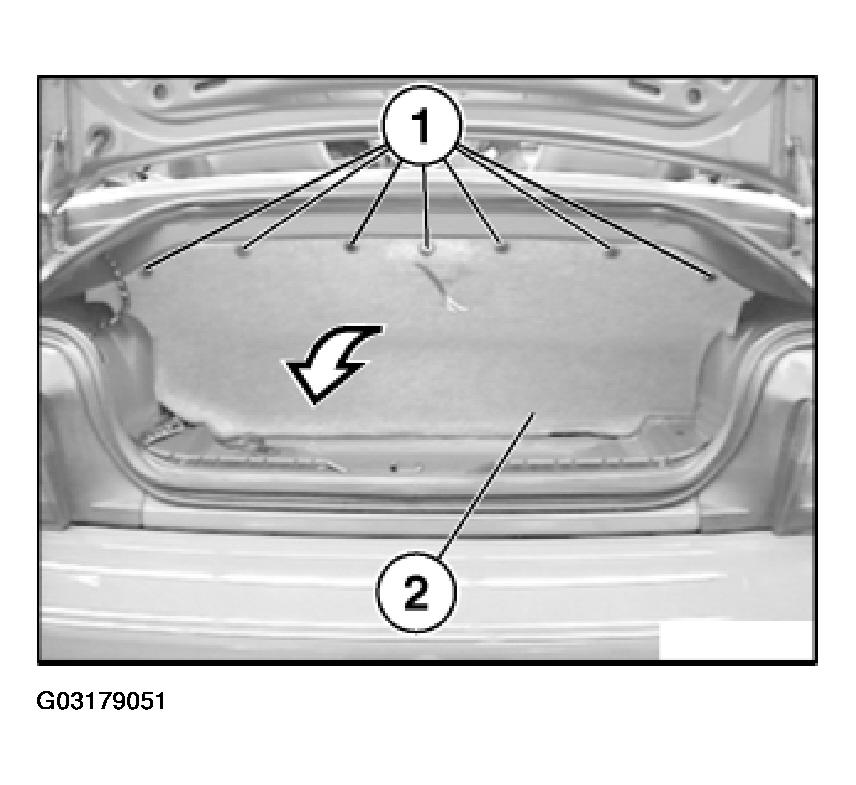

Fig 1: Removing Trim For Luggage Compartment (Without Hi-Fi System)

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Hi-Fi System:

Unfasten clips (1) and remove trim (2) for luggage compartment separating wall.

Fig 2: Removing Trim For Luggage Compartment (With Hi-Fi System)

Courtesy of BMW OF NORTH AMERICA, INC.

Version With CD Changer (3):

Unfasten clips (1), lift out trim (2) for luggage compartment separating wall of CD changer (3) and remove.

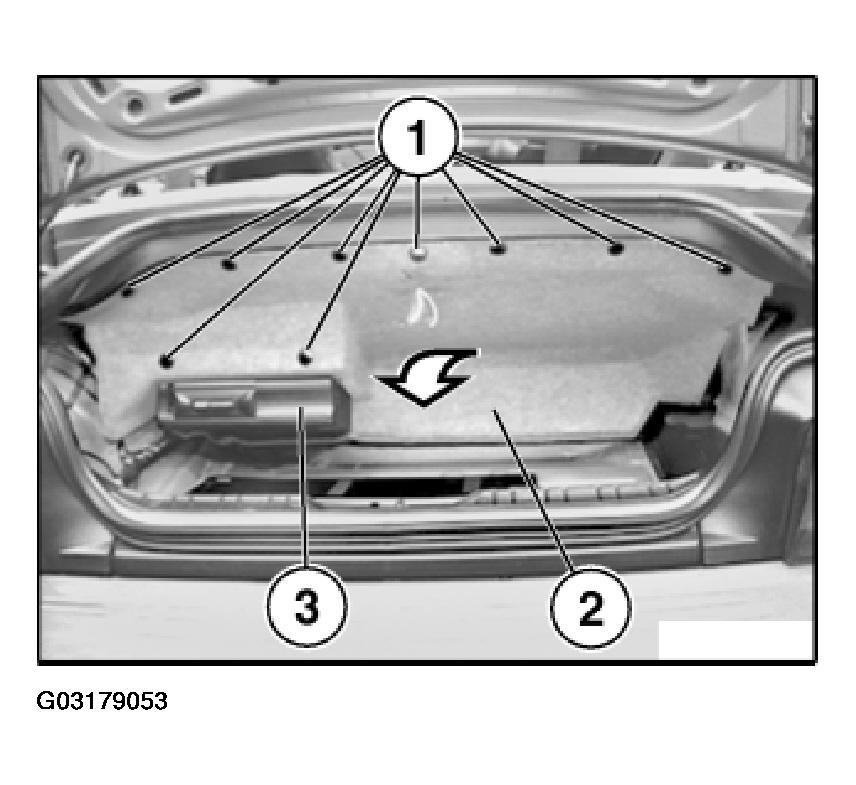

Fig 3: Removing Trim For Luggage Compartment (With CD Changer)

Courtesy of BMW OF NORTH AMERICA, INC.
