65 11 070 Removing and installing/replacing CD changer (Z3 roadster)

Necessary Preliminary Tasks:

• Partially remove panel for luggage compartment partition. Refer to 51 47 140 REMOVING AND INSTALLING / REPLACING PANEL FOR LUGGAGE COMPARTMENT SEPARATING WALL (Z3 ROADSTER, M ROADSTER) .

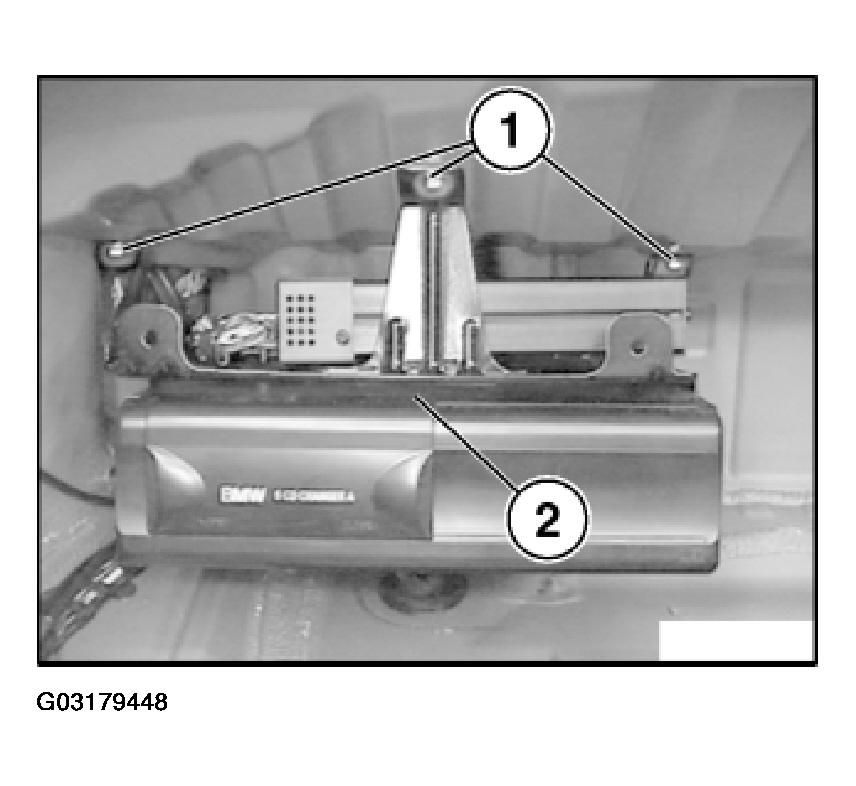

Release screws (1) and lower holder (2) complete with amplifier and CD changer.

Fig 1: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

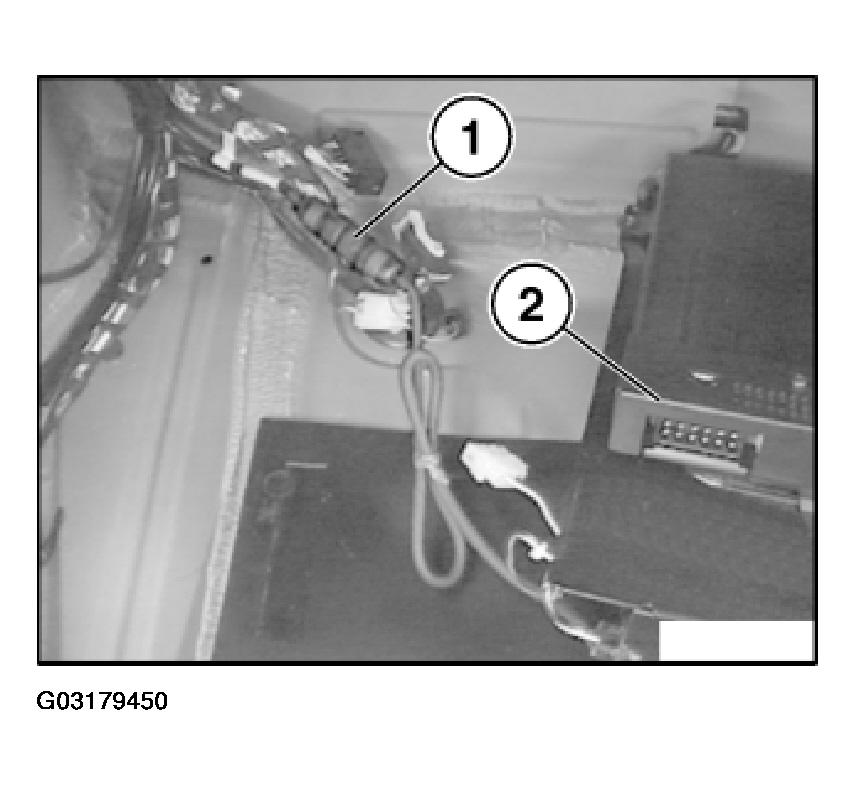

Disconnect plug connections (1) and (2) on amplifier.

Fig 2: Disconnecting Plug Connections Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

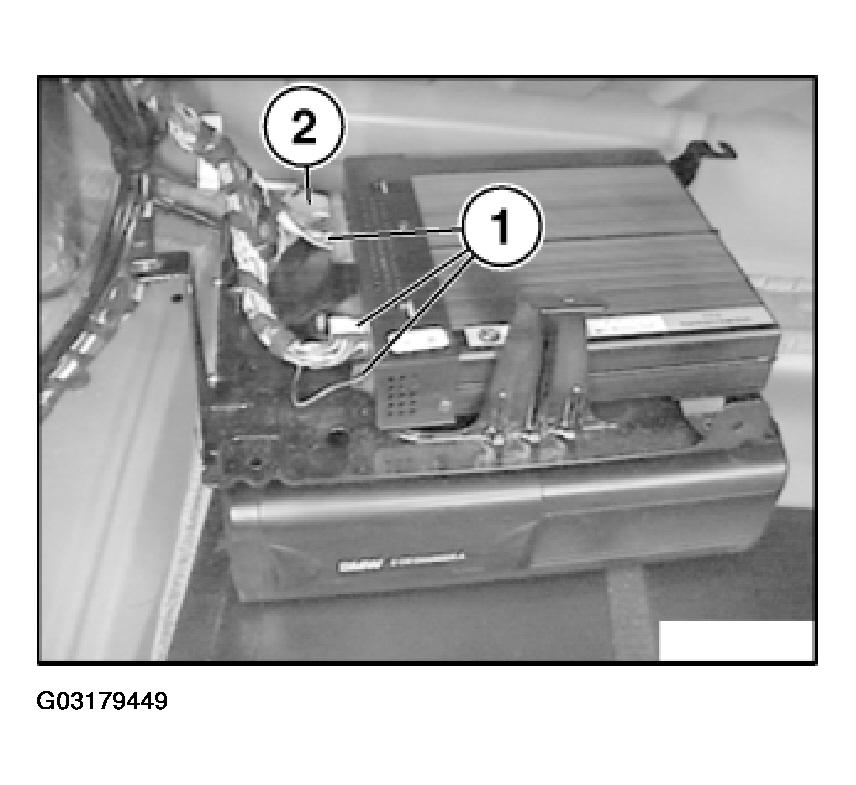

Disconnect plug connection (1) and remove holder (2) complete with amplifier and CD changer.

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

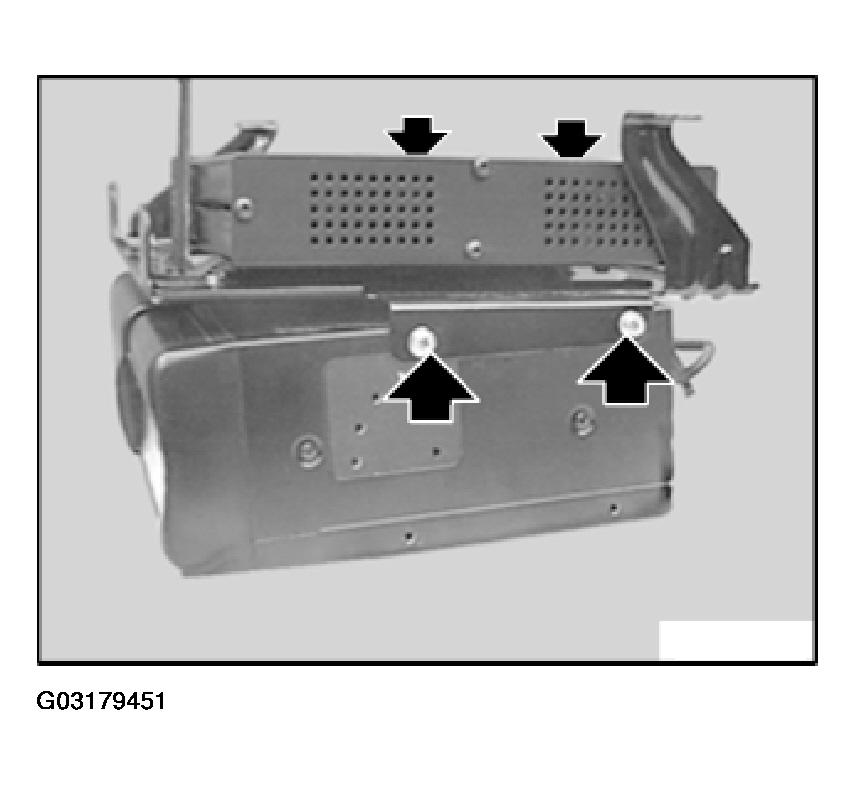

Release screws on both sides and remove CD changer from holder.

Fig 4: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

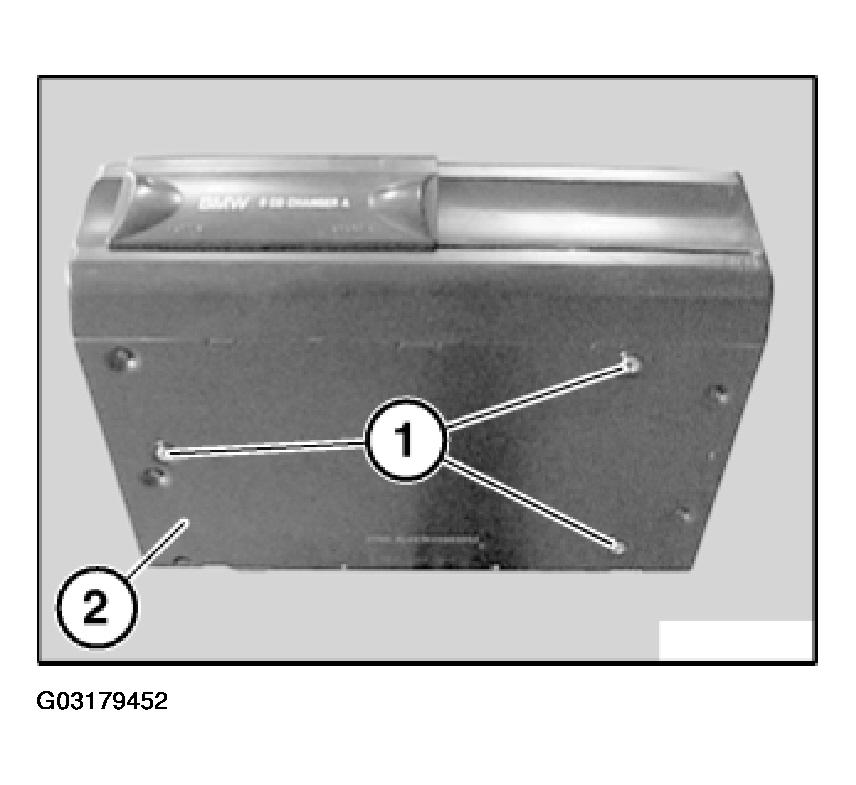

Unscrew transportation locks (1) from CD changer (2).

Fig 5: Removing Screws Transportation Locks

Courtesy of BMW OF NORTH AMERICA, INC.
