63 10 014 Adjusting foglights
WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Comply with test preconditions. Refer to 63 10 ... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT
.
Adjustment dimension (e) for foglights is 20 cm.

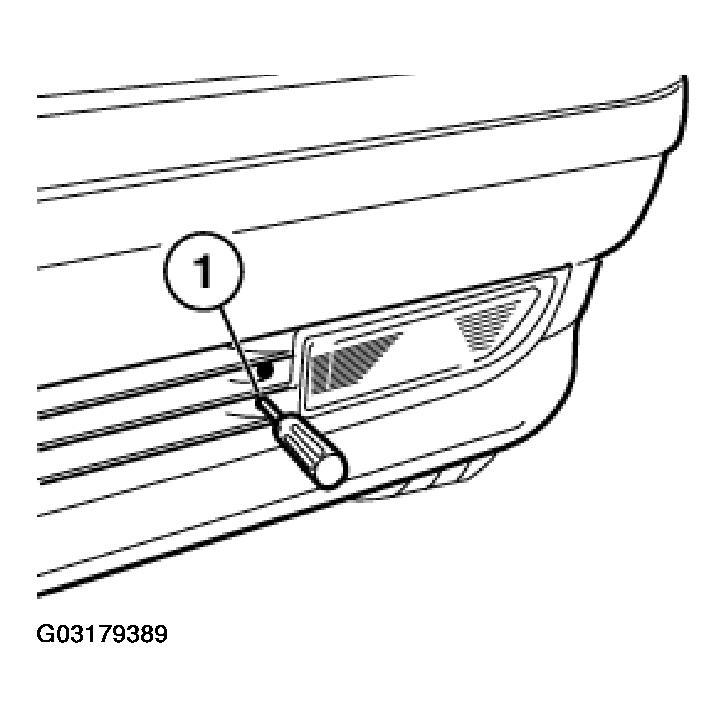

Foglight height adjustment at adjusting screw (1) at lower opening of air inlet grill.
