61 61 270 Removing and installing mounting bracket for windshield wiper system complete with motor (Z3 Roadster, Z3 Coupe, M Roadster, M Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove grill for air intake/heating. refer to 51 13 077 REMOVING AND INSTALLING/REPLACING GRILL FOR AIR INTAKE/HEATER (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

Unfasten screws.

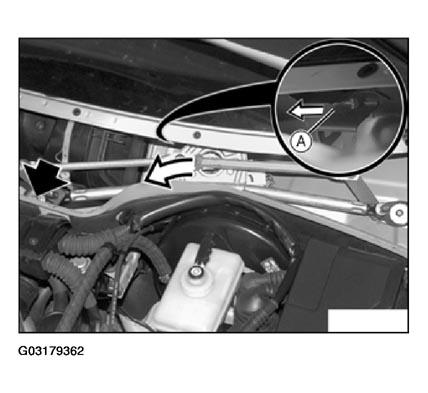

Feed mounting bracket for wiper system sideways out of upper guide (A) and pull out.

Fig 1: Feeding Mounting Bracket For Wiper System Sideways Out Of Upper Guide And Pulling Out

Courtesy of BMW OF NORTH AMERICA, INC.

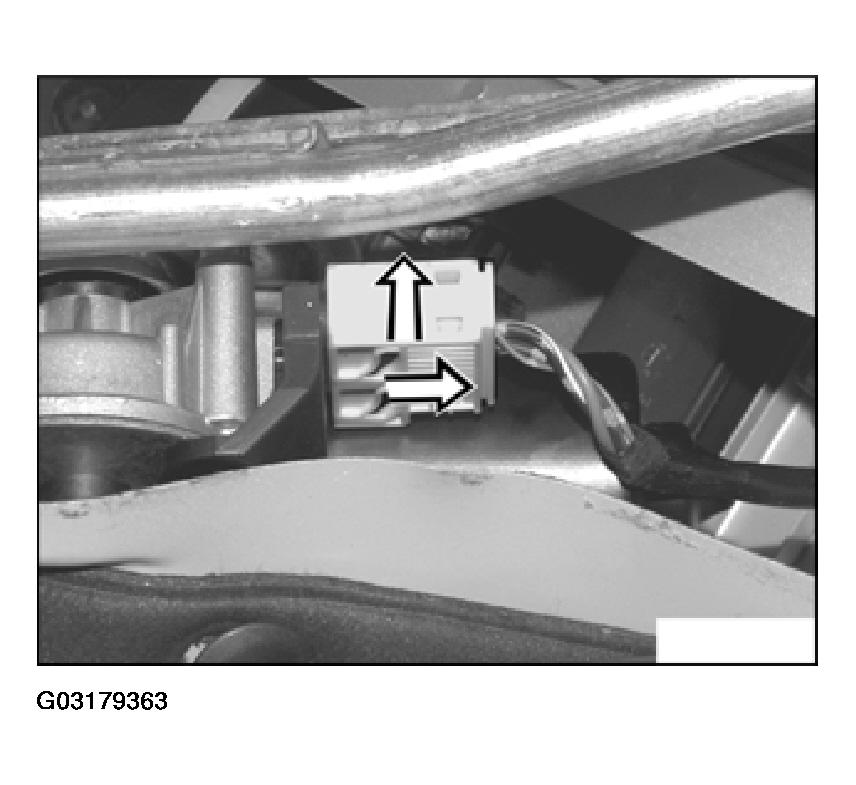

Unlock plug connection, disconnect and remove mounting bracket for wiper system completely.

Fig 2: Removing Mounting Bracket For Wiper System Completely

Courtesy of BMW OF NORTH AMERICA, INC.
