54 61 ... Removing and installing / replacing bracket for left or right rollover protection bar (Z3 Roadster, M Roadster)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing rear left or right lower section of side trim, refer to 51 43 015 REMOVING AND INSTALLING / REPLACING .

Version with Harman-Kardon Hi-Fi system:

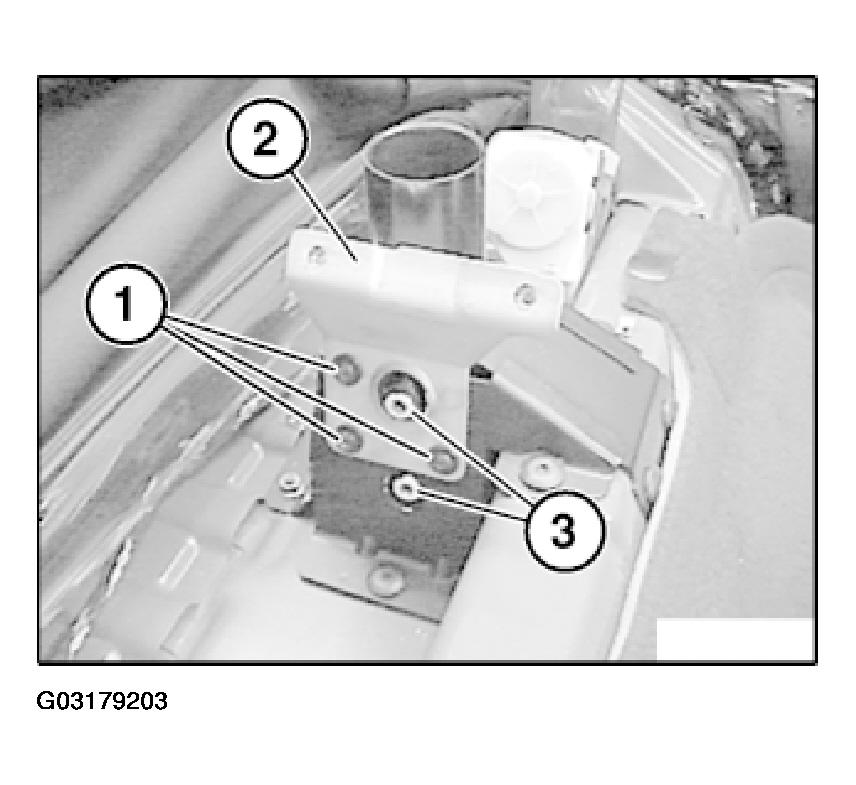

Unfasten screws (1) and remove bracket (2).

Fig 1: Removing Screws Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (3).

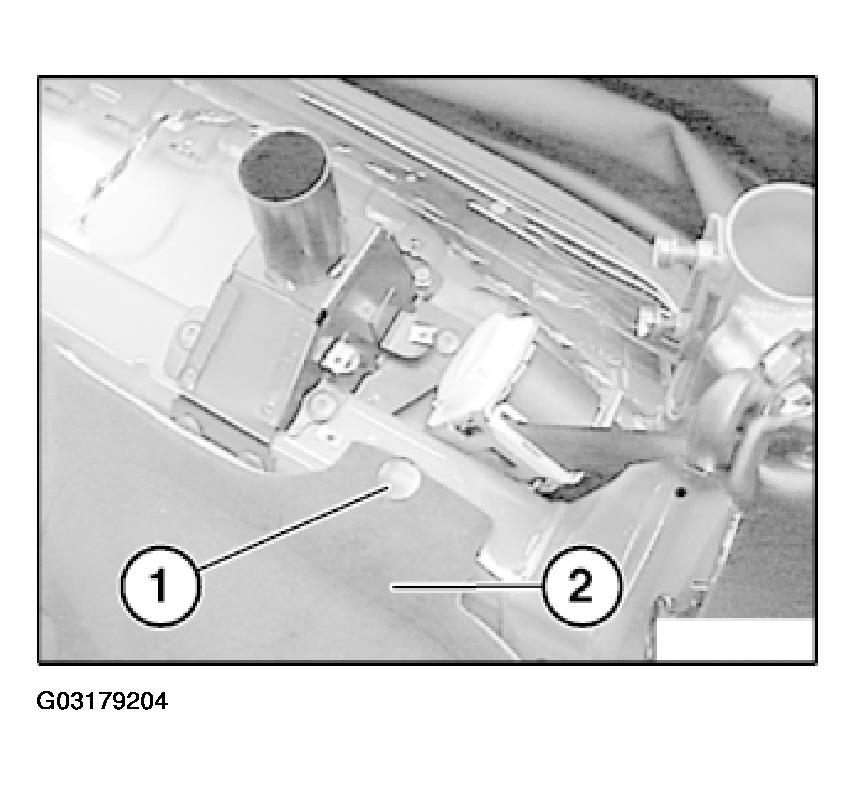

Unfasten clip (1).

Fig 2: Removing Clip

Courtesy of BMW OF NORTH AMERICA, INC.

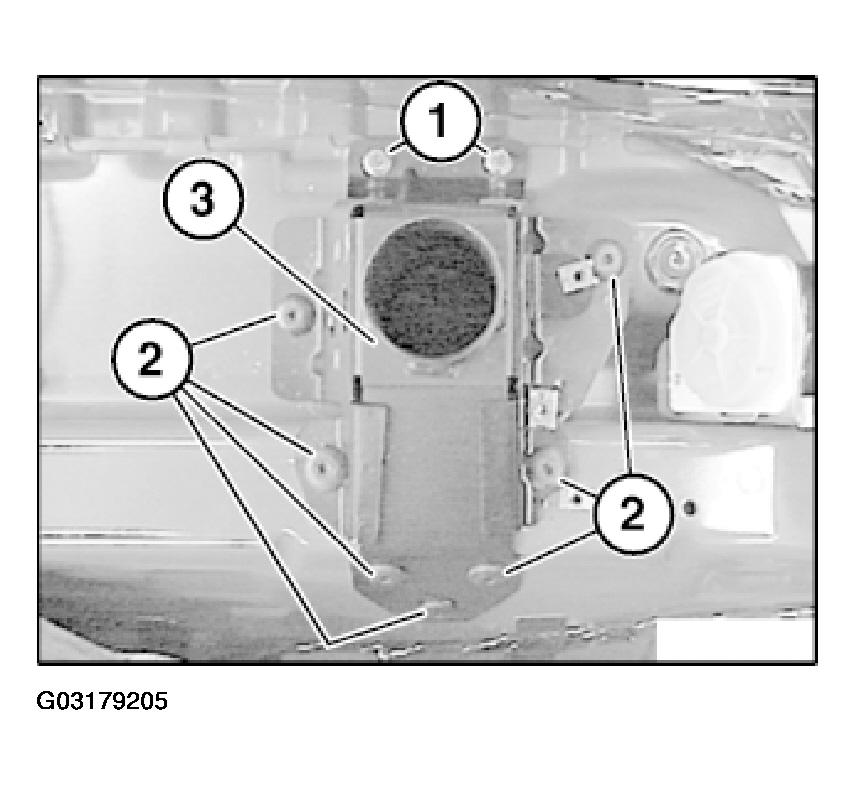

Unfasten nuts (1).

Tightening torque, 10 Nm.

Unfasten screws (2).

Tightening torque, 22 Nm.

Remove bracket (3) for rollover protection bar.

Fig 3: Removing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
