54 21 060 Removing and installing/replacing mounting plate, front left or right
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
Remove hard top, refer to 54 21 001 REMOVING HARD TOP .

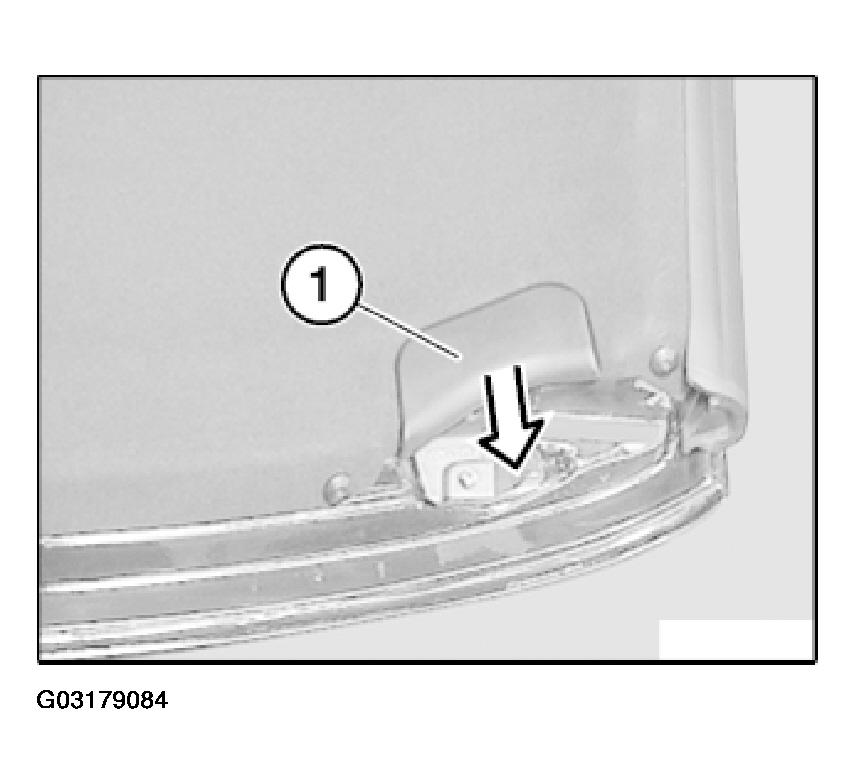

Detach cover (1) on mounting plate towards front.

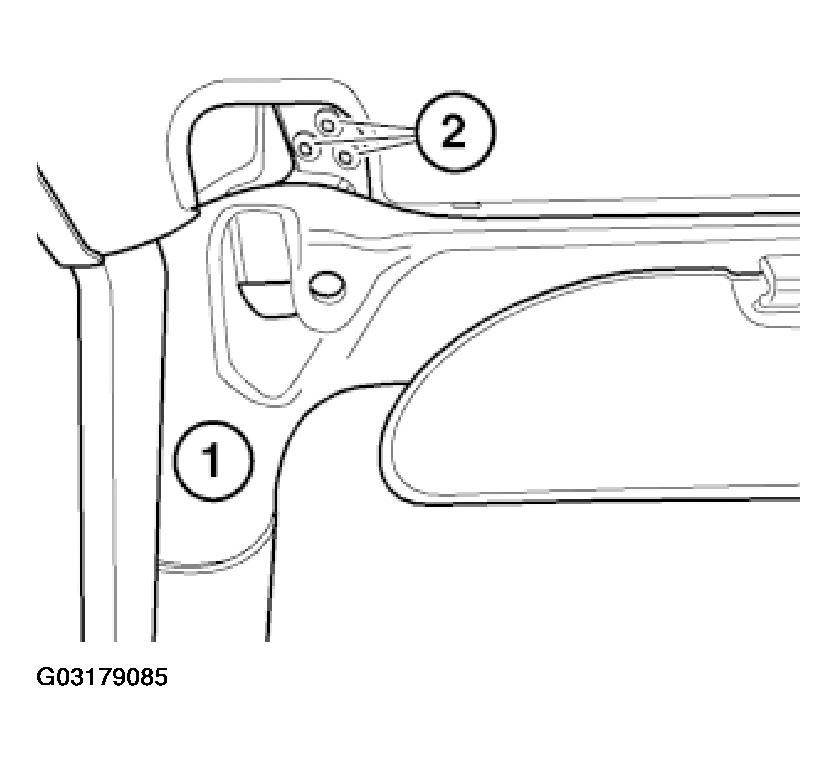

Release screws (2) and remove mounting plate.
(1) Cowl panel.
