54 21 010 Replacing rubber seal on hard top at front

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Remove hard top, refer to 54 21 001 REMOVING HARD TOP .

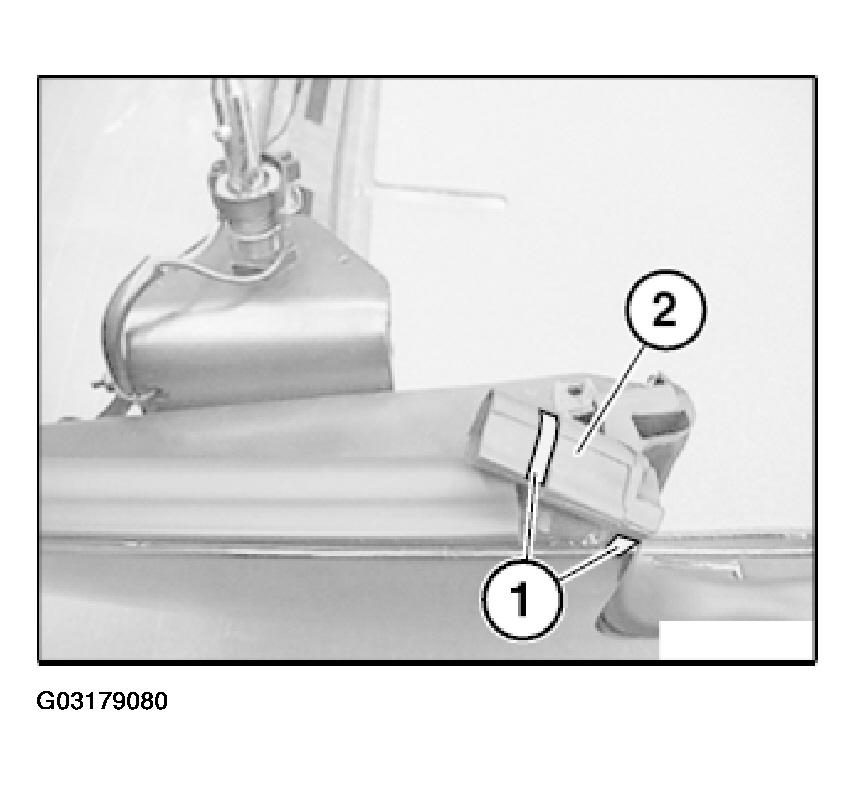

Detach rubber seal (2) at bonding points (1).

Installation:

Use profile rubber adhesive for bonding.

Fig 1: Removing Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

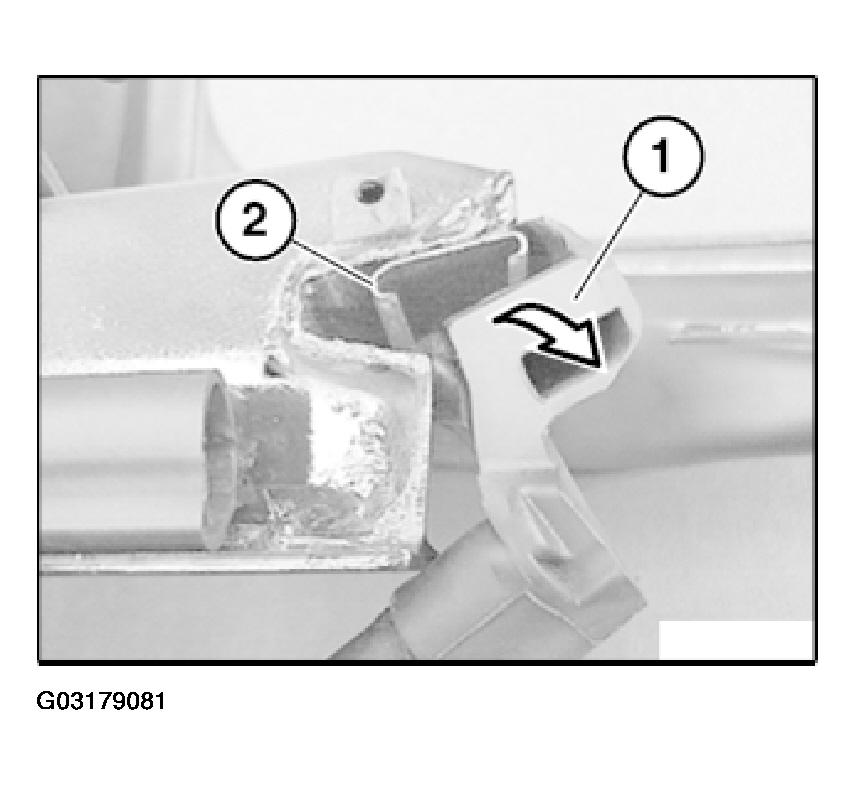

Carefully twist rubber seal (1) out of guide rail (2).

Fig 2: Removing Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

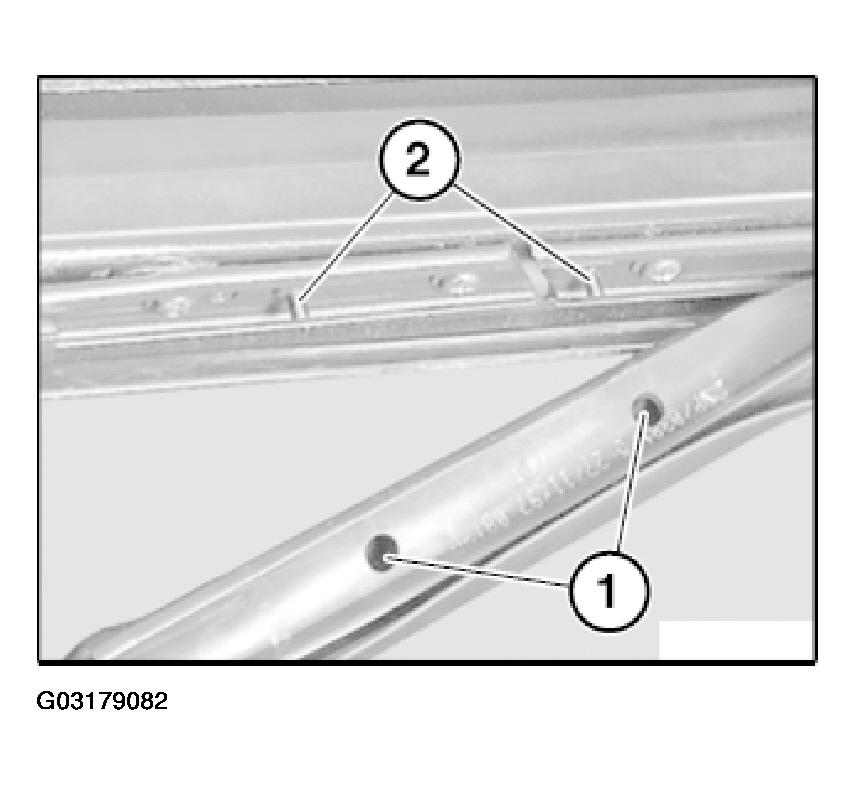

Holes (1) in rubber seal must line up with journals (2) on guide rail.

Fig 3: Locating Holes

Courtesy of BMW OF NORTH AMERICA, INC.
