54 31 055 Removing and installing / replacing gas spring strut on convertible top (Z3 Roadster, M Roadster)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing rear left lower section of side trim, refer to 51 43 015 REMOVING AND INSTALLING / REPLACING REAR LEFT OR RIGHT LOWER SECTION OF SIDE TRIM (Z3 ROADSTER, M ROADSTER) .

Pry out gas spring strut at top with special tool 00 9 319.

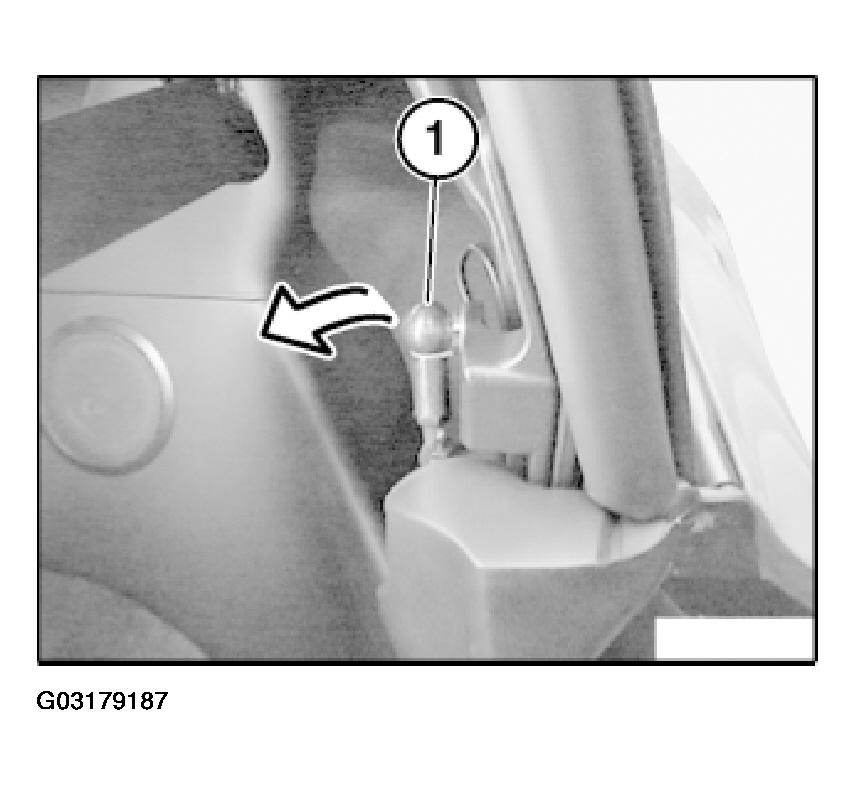

Fig 1: Prying Out Gas Spring Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Pry out gas spring strut (1) at bottom with special tool 00 9 319 and remove from the vehicle.

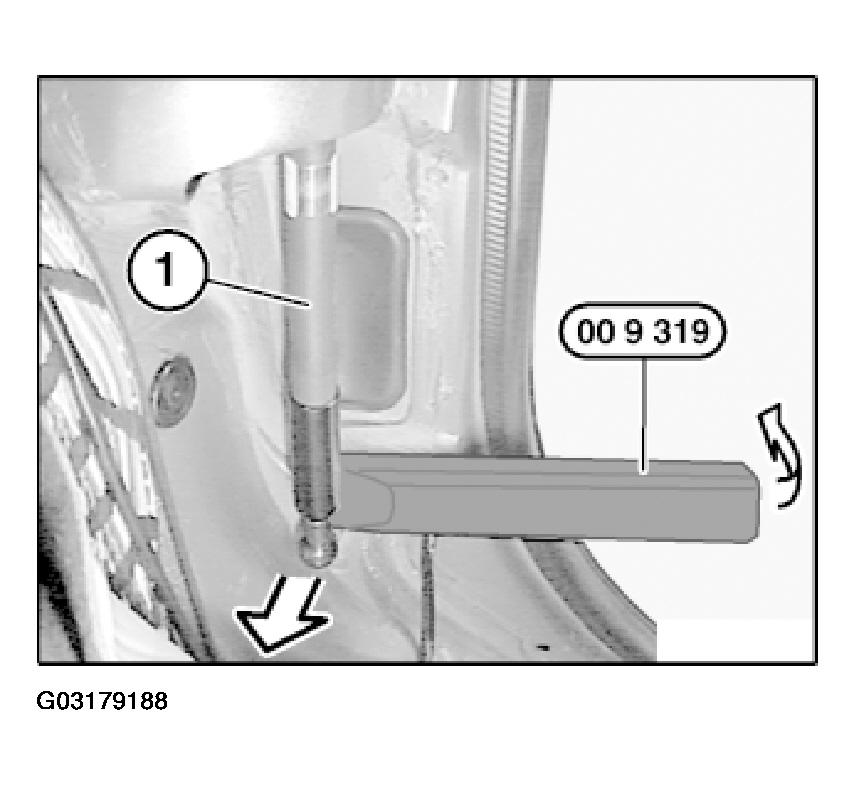

Fig 2: Installing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
