51 43 010 Removing and installing/removing rear left or right upper section of side trim panel (Z3 Roadster, M Roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing rear oddments box, refer to 51 16 240 REMOVING AND INSTALLING REAR ODDMENTS BOX (Z3 ROADSTER, M ROADSTER) .

Unfasten seatbelt screw (1).

Installation:

Tightening torque, refer to TORQUE SPECIFICATIONS .

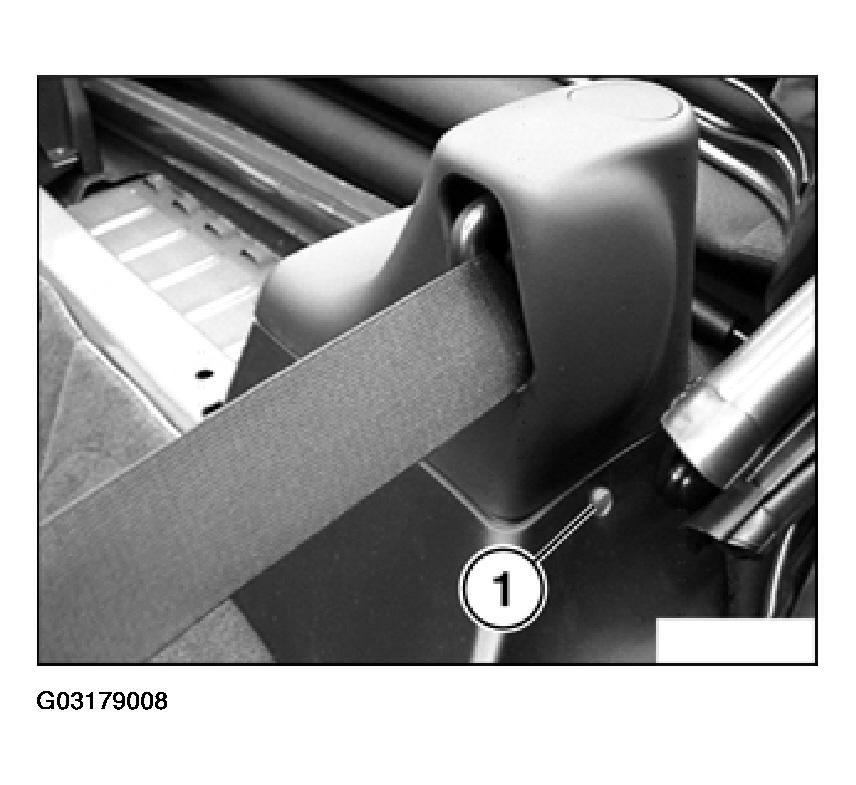

Fig 1: Removing Seatbelt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten cover cap (1) and screw.

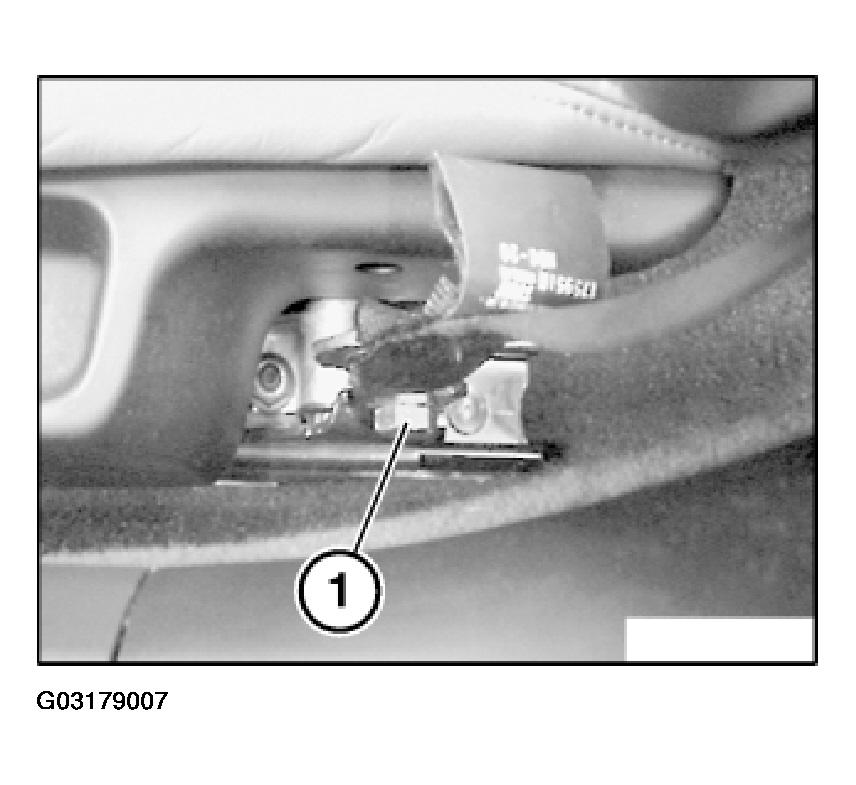

Fig 2: Removing Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Remove caps (1) and screws. Pull out upper section of side trim panel (2) upward/forward over the seat belt roller (3).

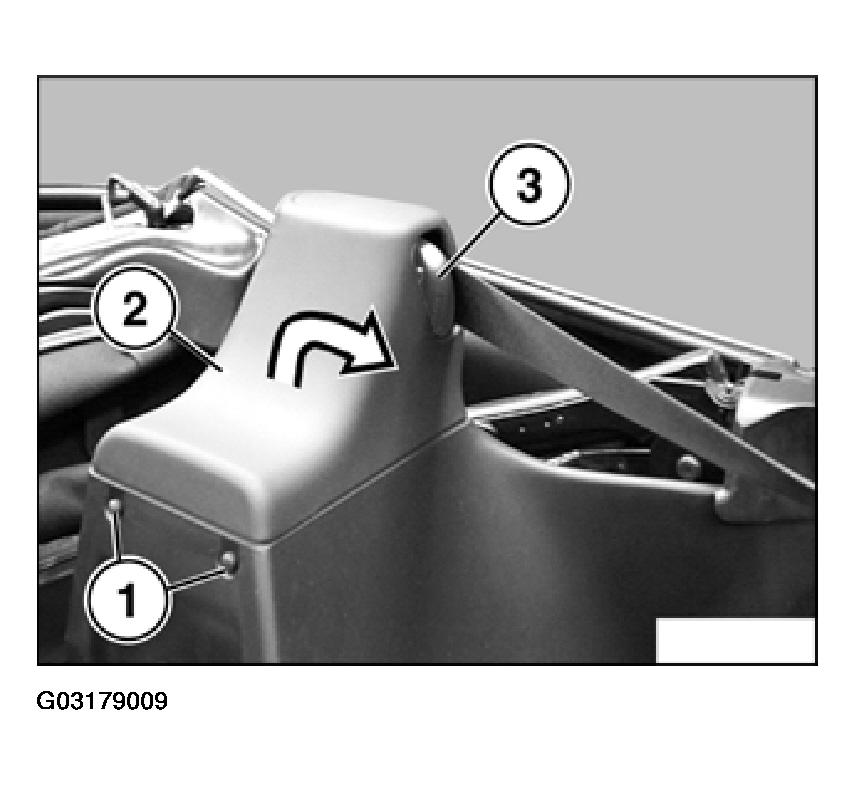

Fig 3: Removing Upper Section Of Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
