51 16 240 Removing and installing rear oddments box (Z3 Roadster, M Roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Loosen oddments tray (do not remove), refer to 51 16 200 REMOVING AND INSTALLING ODDMENTS TRAY (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

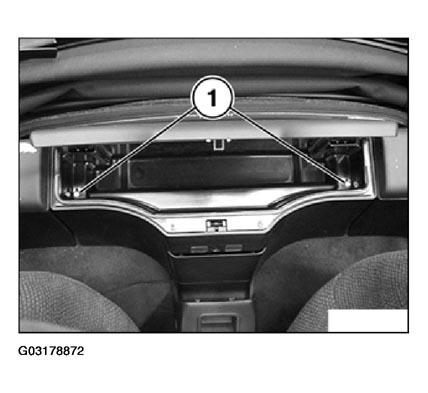

Press up oddments tray (1) and unfasten screws (2).

Fig 1: Removing Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Version (A):

Without rollover protection bar, without subwoofer, without "Harman-Kardon" Hi-Fi system:

Open cover and unfasten screws (1).

Fig 2: Opening Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Without rollover protection bar, without subwoofer, without "Harman-Kardon" Hi-Fi system:

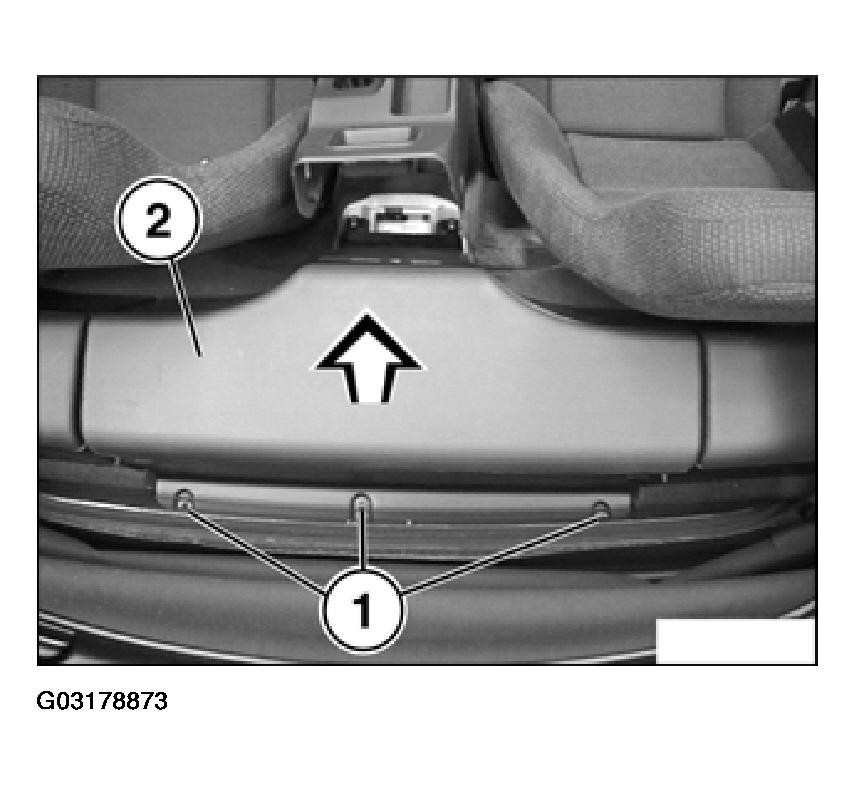

Unfasten screws (1) and remove oddments box (2).

Fig 3: Removing Oddments Box

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The procedures for "removing and installing rear oddments box" version (A) ends here.

Version (B):

With rollover protection bar:

Removing and installing rollover protection bar, refer to 54 61 001 REMOVING AND INSTALLING / REPLACING .

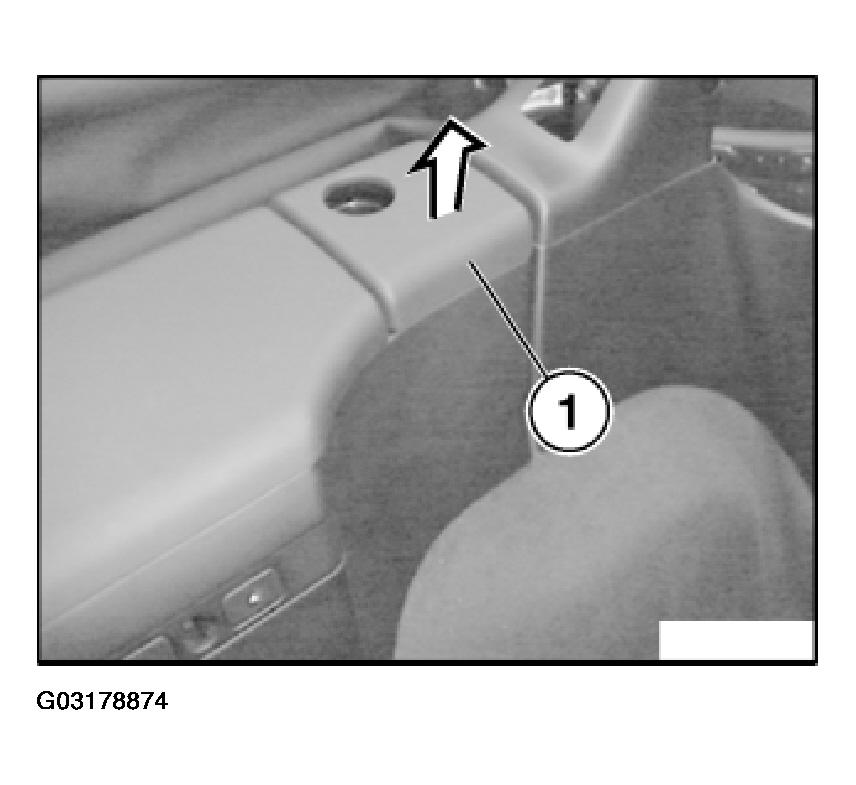

Pull off finisher (1) (lock) upward.

Fig 4: Removing Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Version (B):

With rollover protection bar:

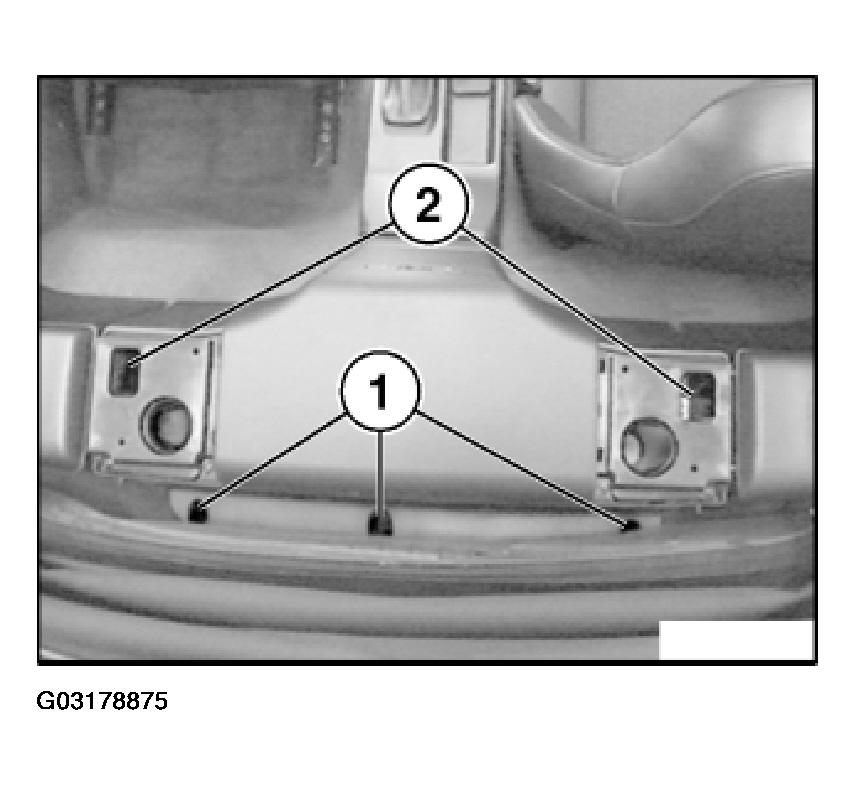

Lift out covers (1) and unfasten screws. Unfasten screws (2) and take off oddments box upward.

NOTE: The procedure for removing and installing the "rear oddments box" Version (B) ends here.

Fig 5: Removing Covers And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version (C):

With rollover protection bar, with "Harman-Kardon" Hi-Fi system:

Removing and installing loudspeaker box, refer to 65 13 300 REMOVING AND INSTALLING/REPLACING COMPLETE SUBWOOFER SPEAKER FOR TOP HI-FI SYSTEM (Z3 ROADSTER, M ROADSTER HARMANN KARDON) .

Unclip cover (1) upward.

Removing and installing left and right rollover protection bar, refer to 54 61 001 REMOVING AND INSTALLING / REPLACING LEFT OR RIGHT ROLLOVER PROTECTION BAR (Z3 ROADSTER, M ROADSTER) .

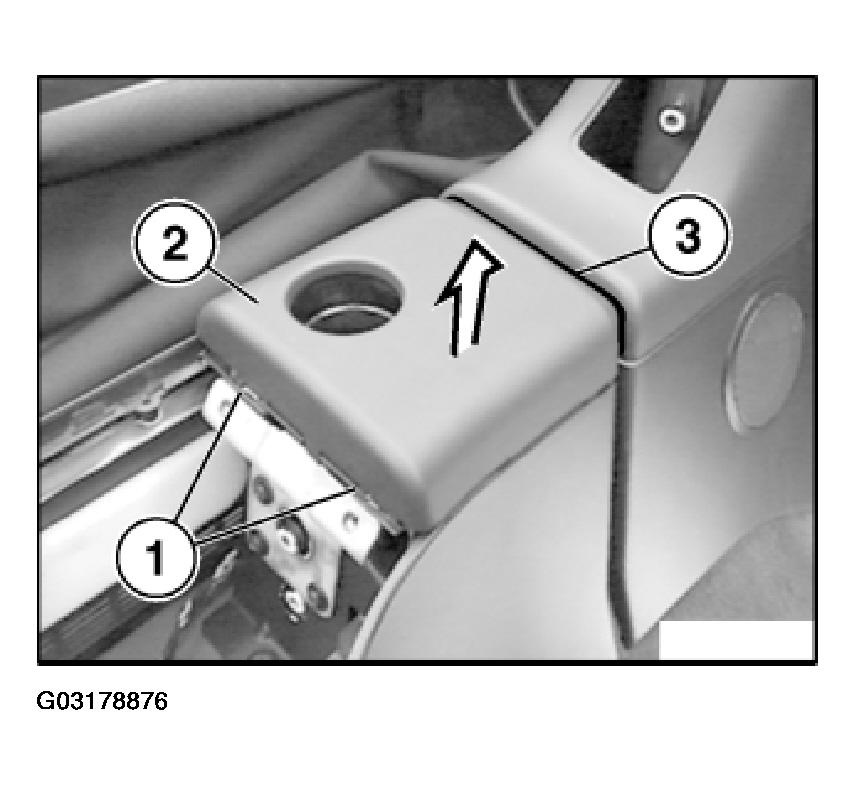

Lift out detent (1) and pull off finisher strip (2) (lock) upward.

Installation:

Glue on seal (3) if necessary.

Fig 6: Identifying Detent And Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Version (C):

With rollover protection bar, with "Harman-Kardon" Hi-Fi system:

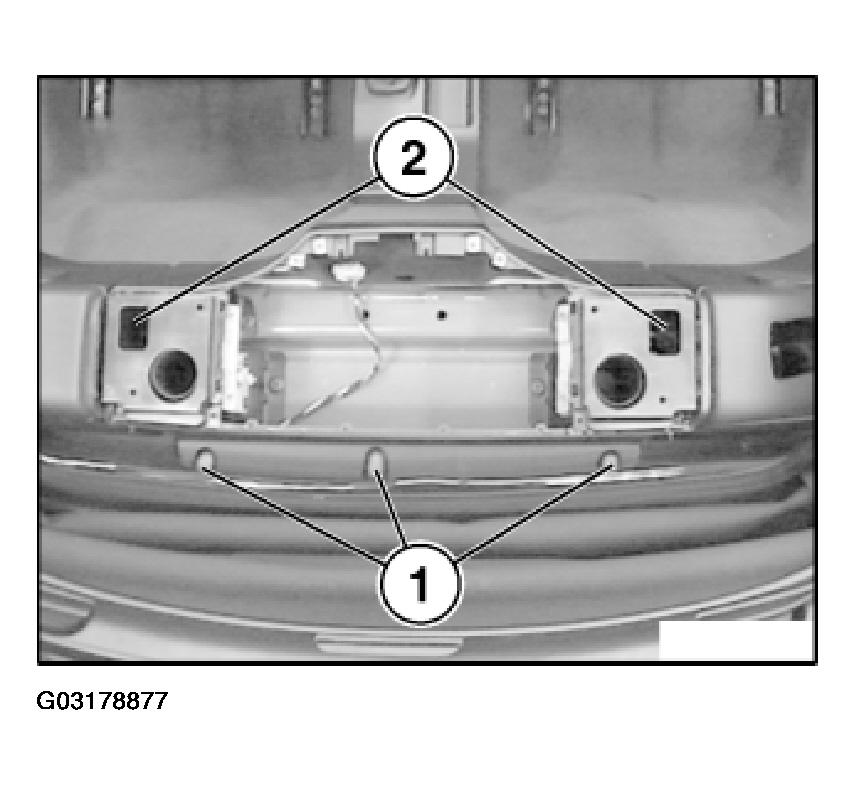

Lift out covers (1) and unfasten screws. Unfasten screws (2) and take off oddments box upward.

Fig 7: Removing Oddments Box

Courtesy of BMW OF NORTH AMERICA, INC.
