51 12 801 Replacing bracket for bumper, rear left or right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)
WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.
(Bumper removed)
(If necessary, remove rear bumper, refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .)

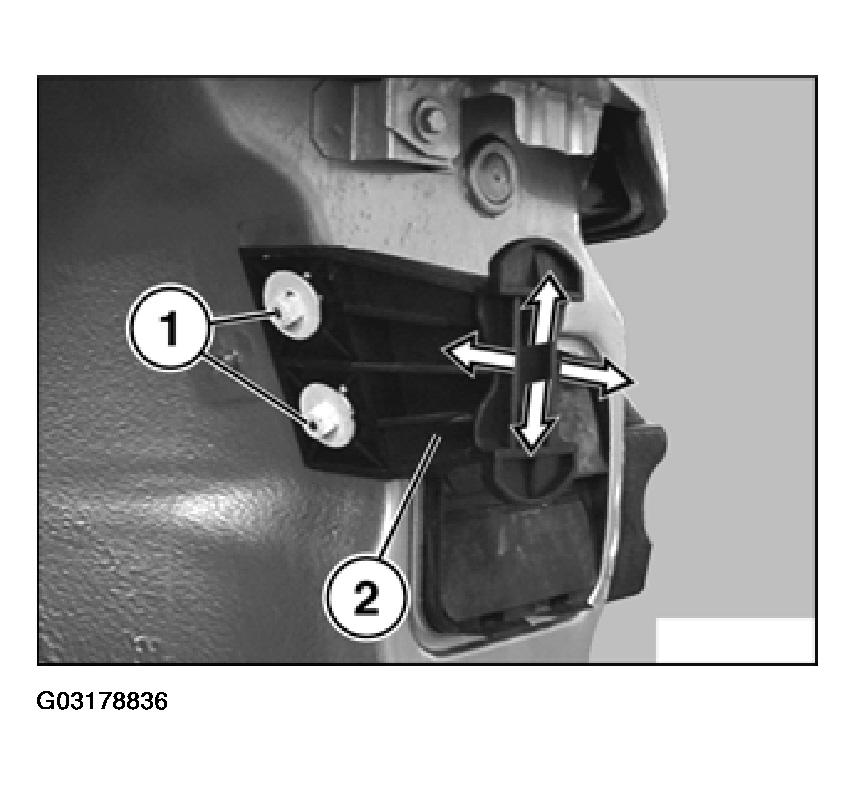

Unfasten screws (1) and remove bracket (2).
Installation:
Tightening Torque, 51 12 5AZ. Refer to 51 12 REAR BUMPER .
Adjust rear bumper, refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .
