51 12 000 Removing and installing complete rear bumper (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

Remove spare wheel.

Remove and install rear wheel housing cover, left and right, refer to 51 71 041 REMOVING AND INSTALLING/REPLACING WHEEL ARCH COVER, REAR LEFT OR RIGHT (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

Z3 roadster only:

Unclip lamps (1) from license plate lighting on broad rib.

Unfasten connector and remove license plate lighting.

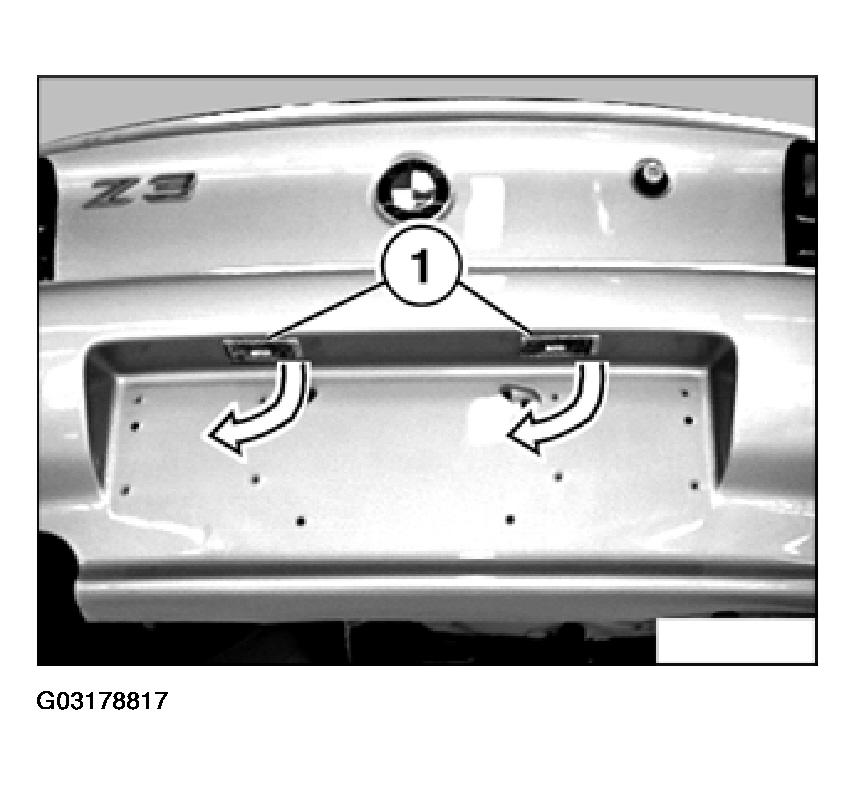

Fig 1: Identifying License Plate Lighting

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolts (1).

Installation:

Tightening Torque, 51 12 2AZ. Refer to 51 12 REAR BUMPER .

Fig 2: Tightening Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Z3 roadster with 4-cylinder engines only:

Unfasten expanding rivet (1) in left/right wheel housing.

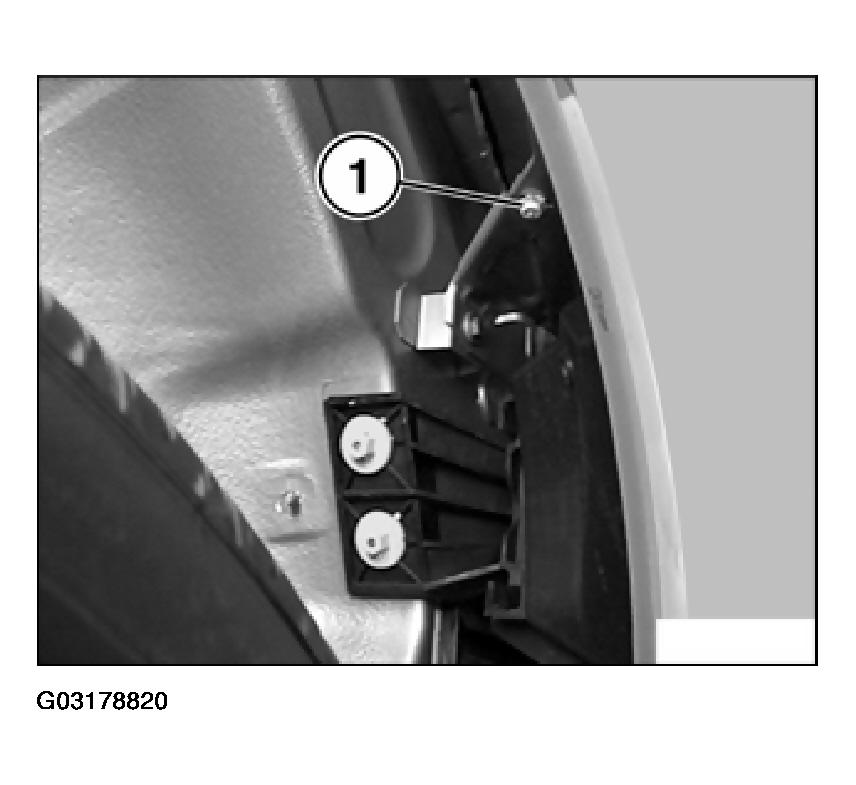

Fig 3: Identifying Left/Right Wheel Housing

Courtesy of BMW OF NORTH AMERICA, INC.

6-cylinder engines only:

Push bumper (1) forward until clips (2) are located in assembly opening.

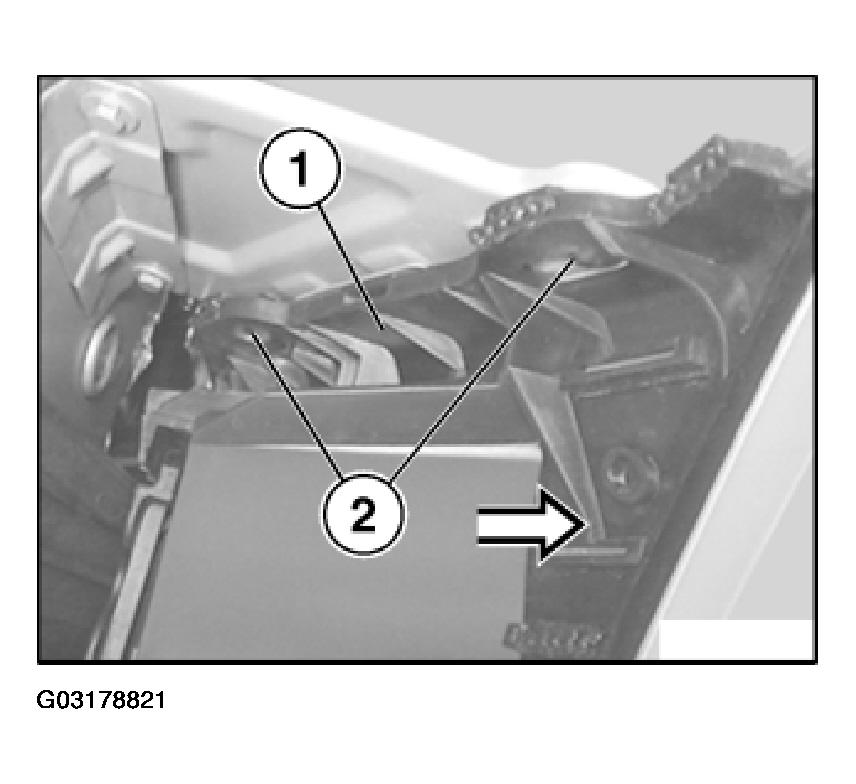

Fig 4: Aligning Bumper Forward

Courtesy of BMW OF NORTH AMERICA, INC.

6-cylinder engines only:

Press bumper (1) downwards/towards rear until clips (2) are out of assembly opening (3).

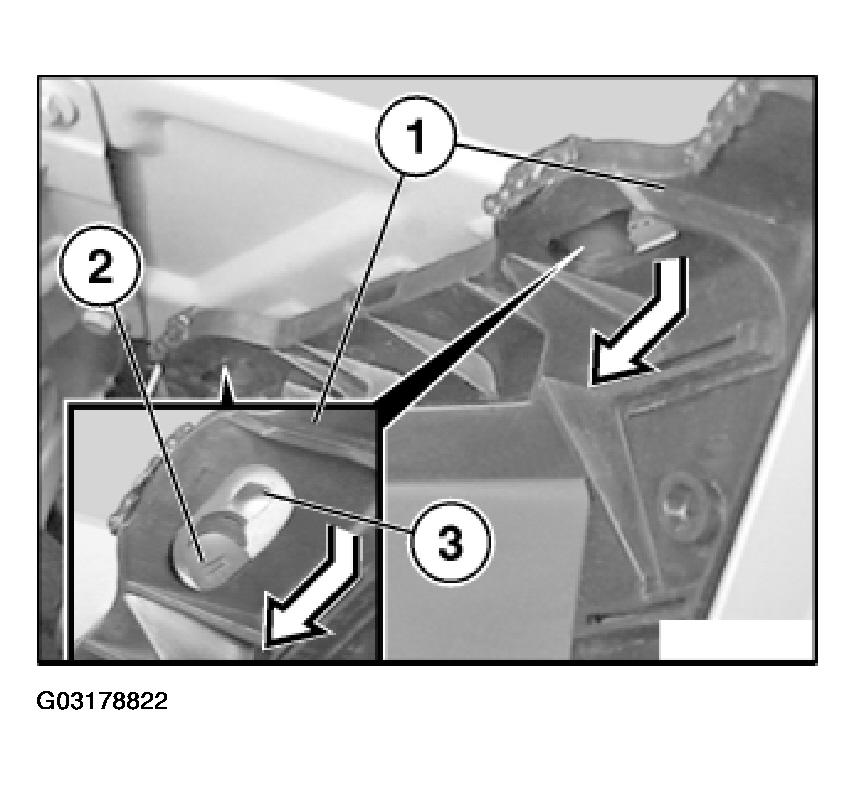

Fig 5: Pressing Bumper Downwards Until Clips Are Out Of Assembly Opening

Courtesy of BMW OF NORTH AMERICA, INC.

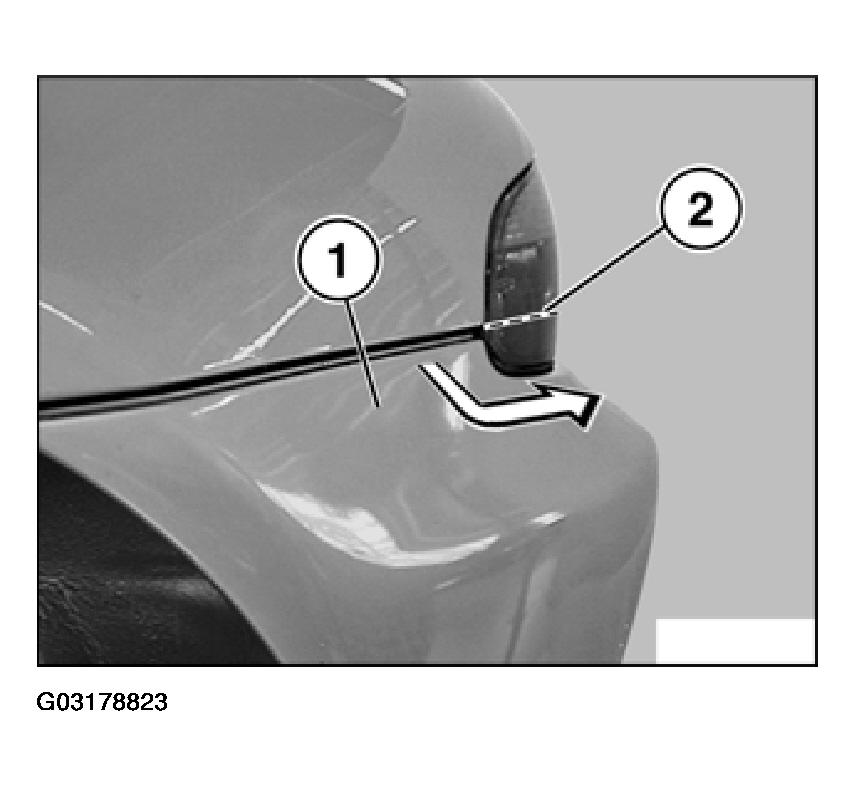

Carefully press bumper (1) from wheel housing over tail lights (2) on left/right (risk of damage to tail light rubber) and remove bumper (1) towards rear.

Fig 6: Removing Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

6-cylinder engines only:

If necessary, replace defective clips (1).

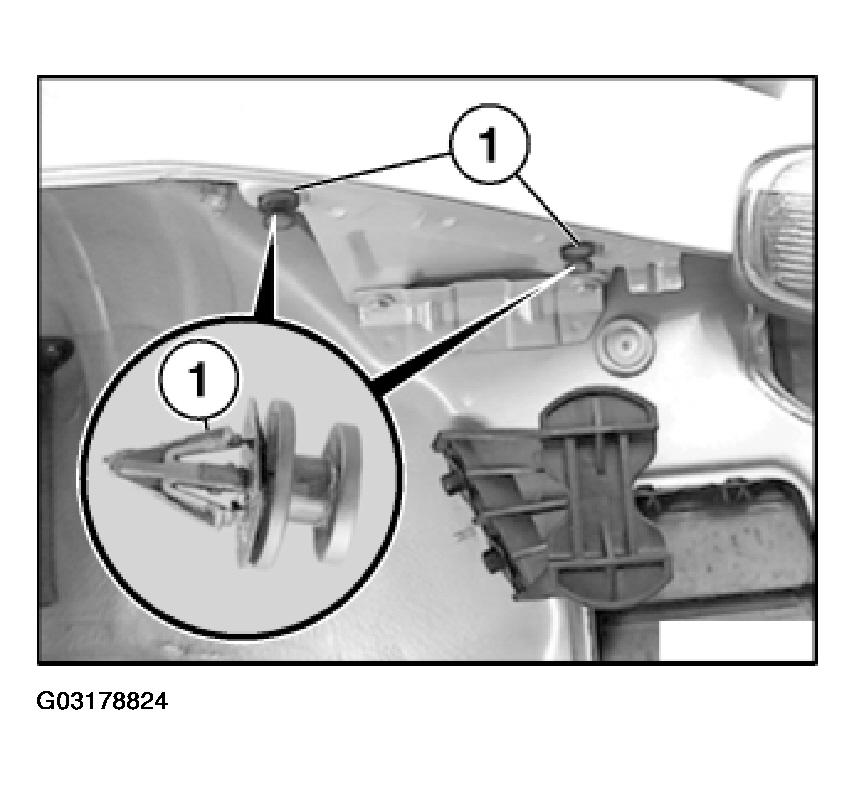

Fig 7: Replacing Defective Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust Bumper:

Ideal setting (dimension):

Transition (A) should be flush on left/right side.

(B) 5.5 mm (tolerance + 0.5/-1 mm).

(C) 1 mm (tolerance + 1.5/-0 mm).

(D) 5 mm (tolerance + 0.5/-1 mm).

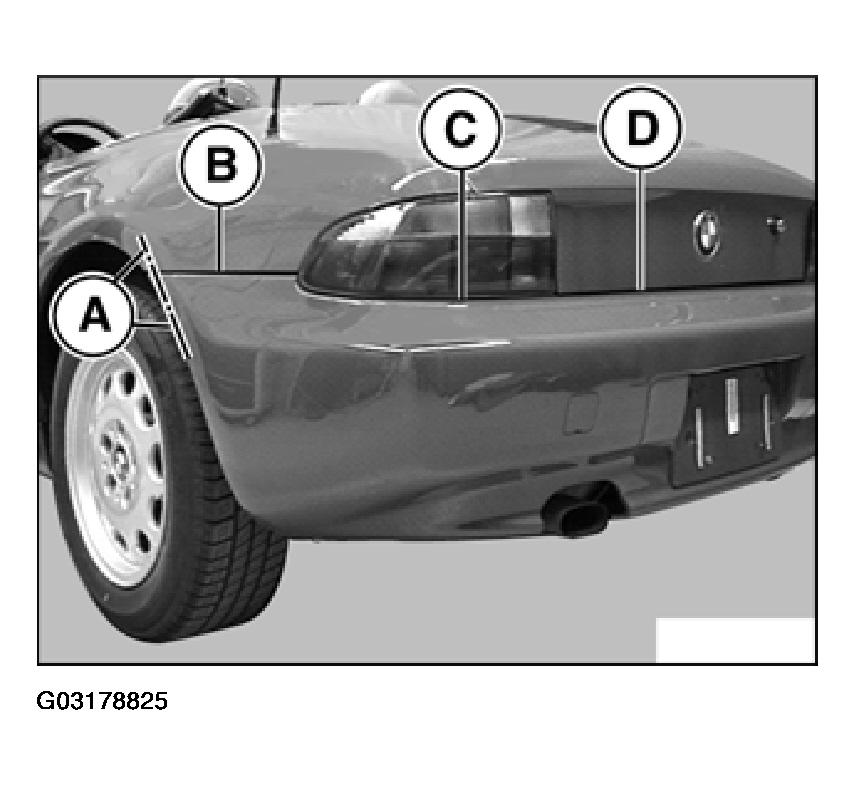

Fig 8: Identifying Bumper Adjustment Settings

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen nut (1) from wheel housing and adjust bracket (2).

Fig 9: Adjusting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

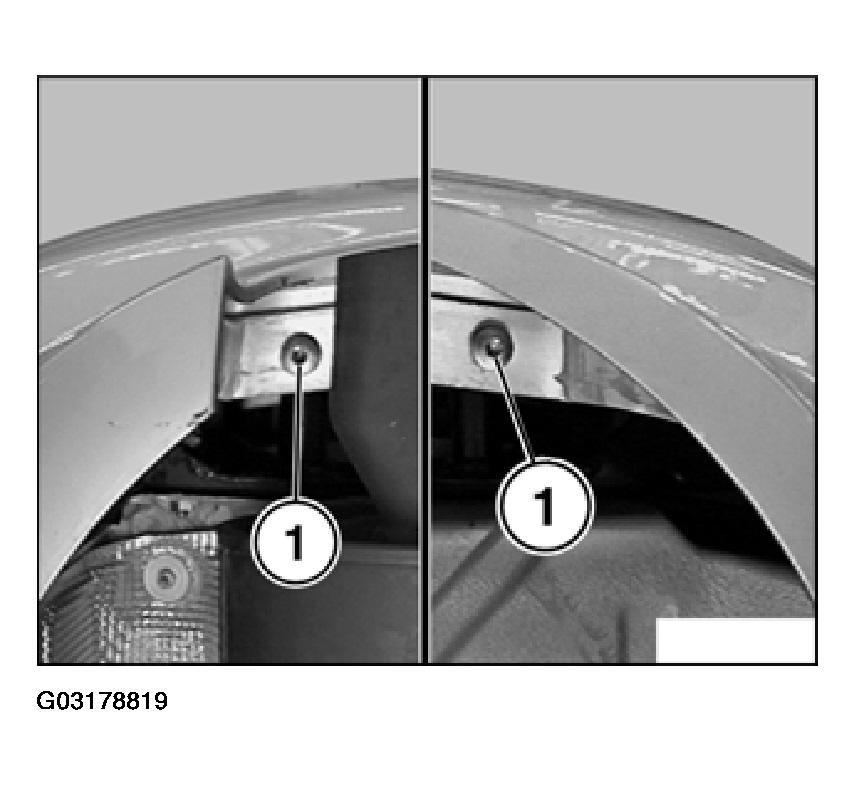

Unfasten left/right screws (1).

Installation:

Tightening Torque, 51 12 2AZ. Refer to 51 12 REAR BUMPER .

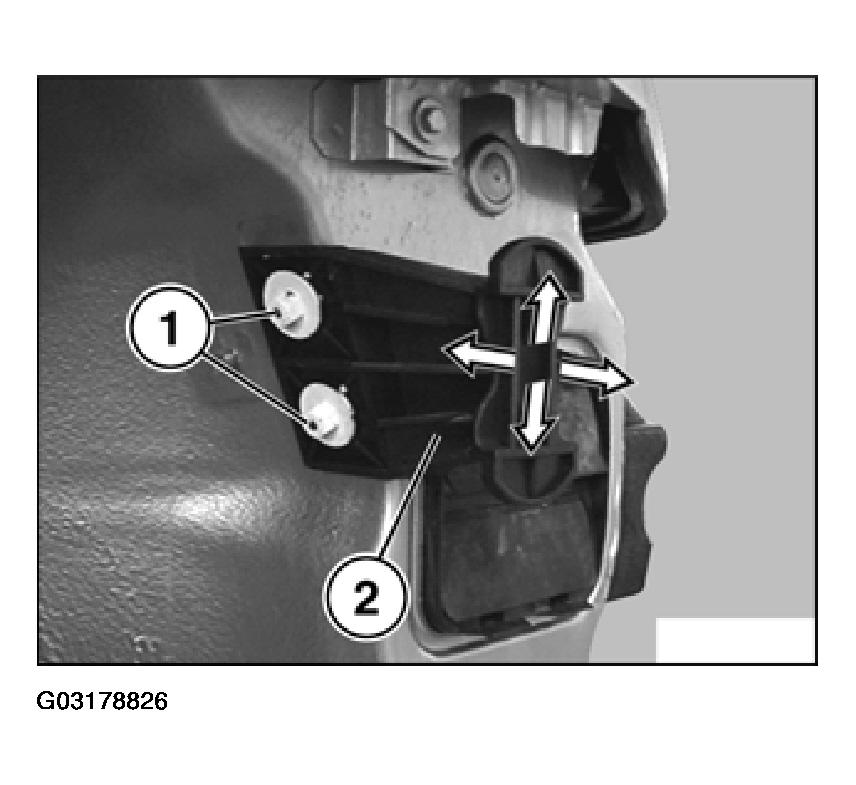

Fig 10: Adjusting Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

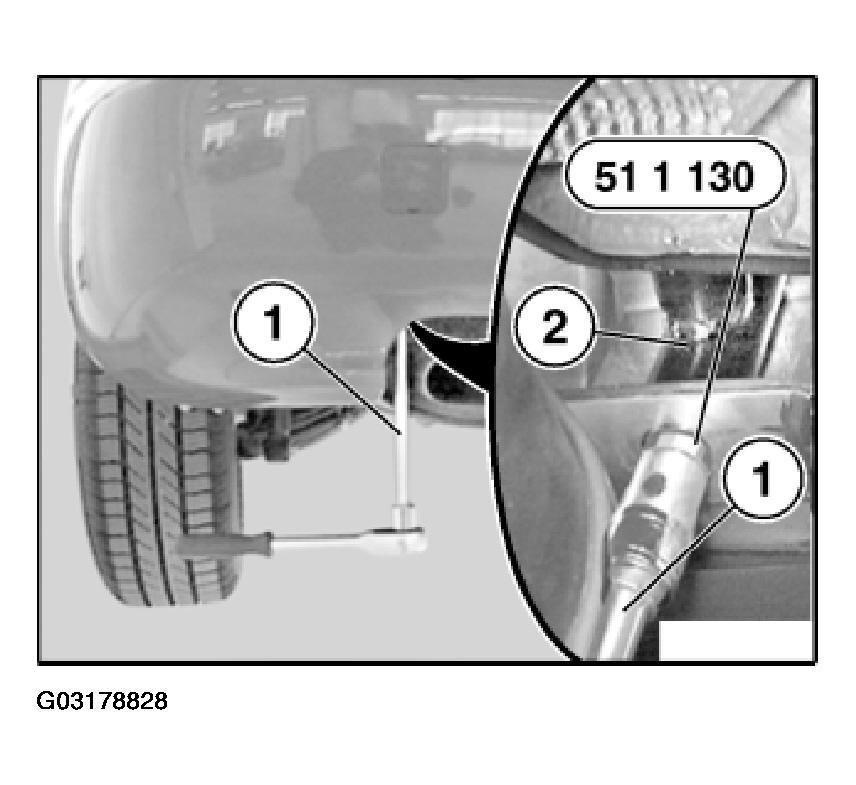

Insert special tool 51 1 130 on standard extension (1) through bore with reversible handle into shock absorber (2).

Fig 11: Installing Special Tool In Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Height of bumper (in rear area) is now set by twisting socket head cap screw (1) in shock absorber (2).

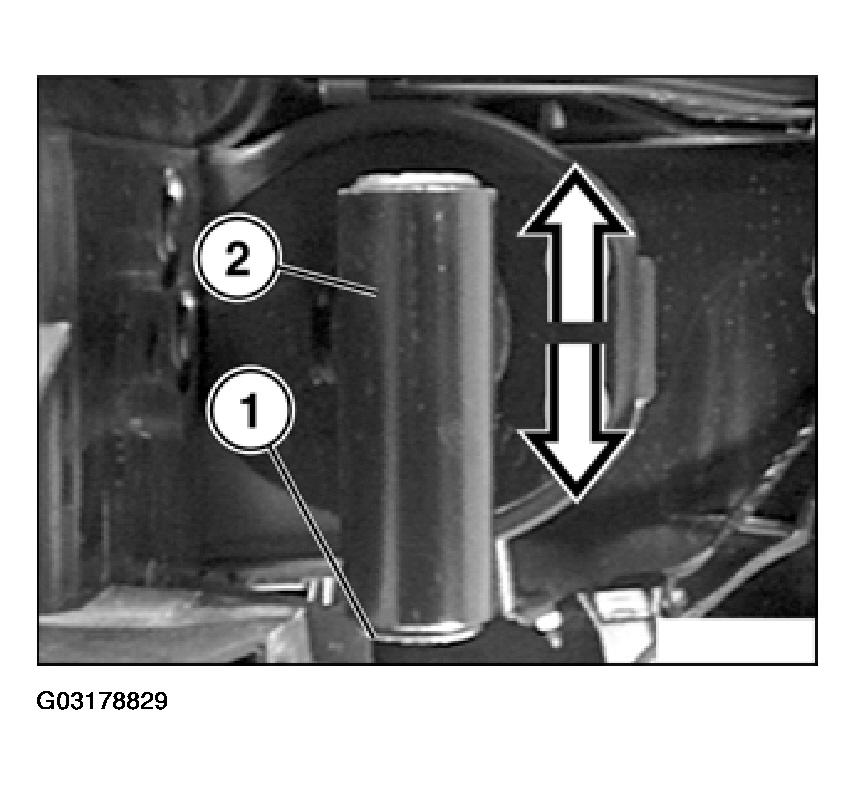

Fig 12: Adjusting Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
