51 12 742 Replacing a shock absorber for bumper, rear (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

(Bumper Removed)

(If necessary remove rear bumper, refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .)

Left shock absorber:

Press floor mat (1) to one side and unfasten nut (2).

Tightening Torque, 51 12 3AZ. Refer to 51 12 REAR BUMPER .

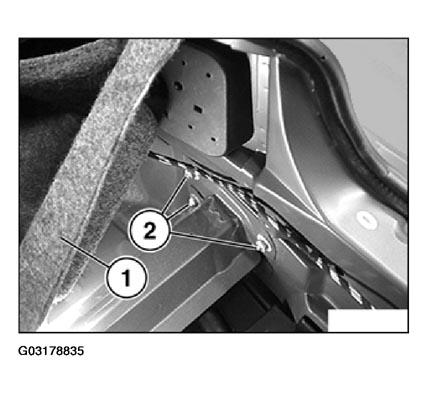

Fig 1: Identifying Left Shock Absorber Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut (1) and remove shock absorber (2).

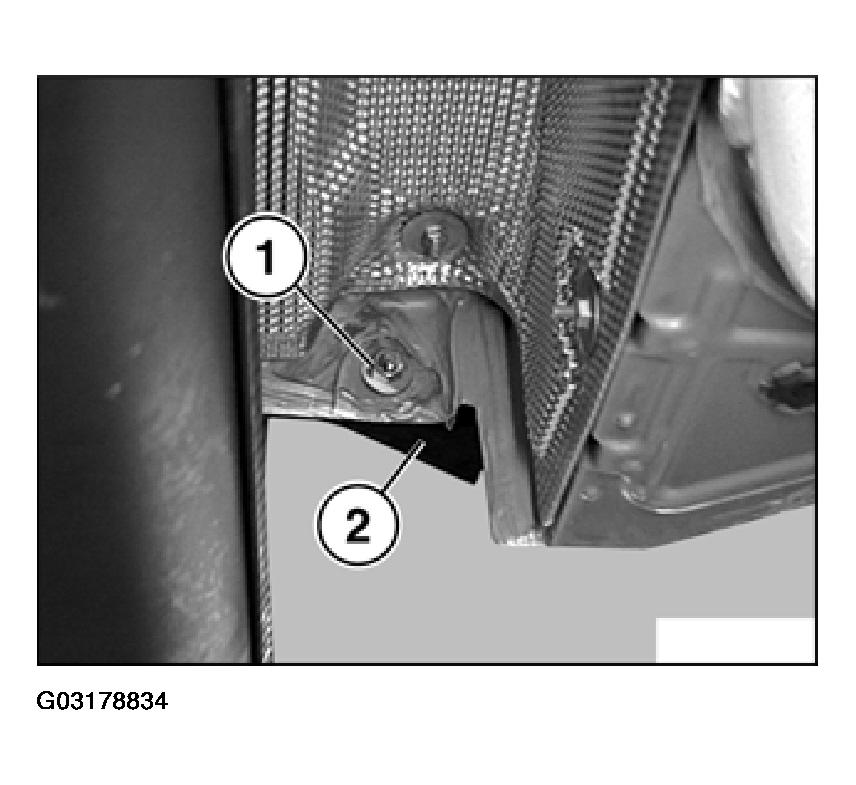

Fig 2: Removing Shock Absorber Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening Torque, 51 12 3AZ. Refer to 51 12 REAR BUMPER .

Right shock absorber:

Press floor mat (1) to one side, unfasten nut (2) and pull out shock absorber.

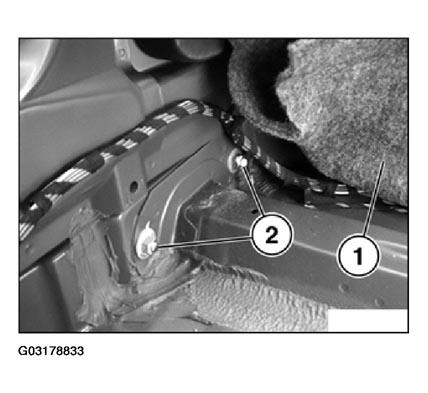

Fig 3: Identifying Right Shock Absorber Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening Torque, 51 12 3AZ. Refer to 51 12 REAR BUMPER .

Adjust rear bumper, refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .
