51 12 001 Replacing rear bumper (Z3 roadster, M roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew License Plate (Z3 Roadster Only):

Remove complete rear bumper, refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

US version also (Z3 roadster only):

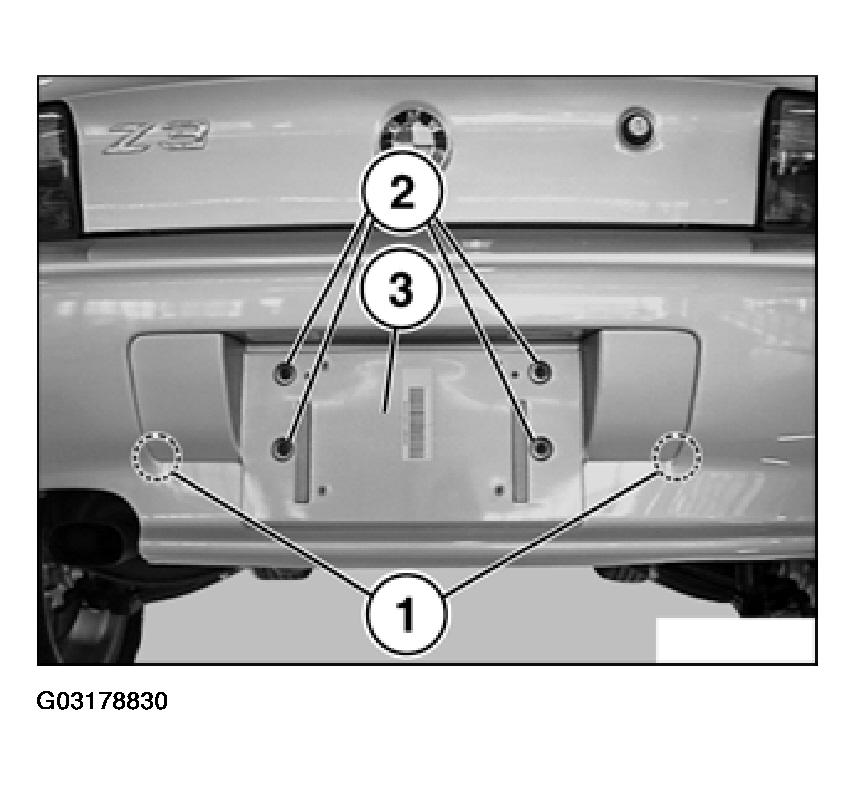

Unfasten screws (1) (from below/inside) and (2) and remove baseplate (3) from licence plate.

Fig 1: Removing Baseplate From Licence Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Rear Bumper Center Section (Support Member):

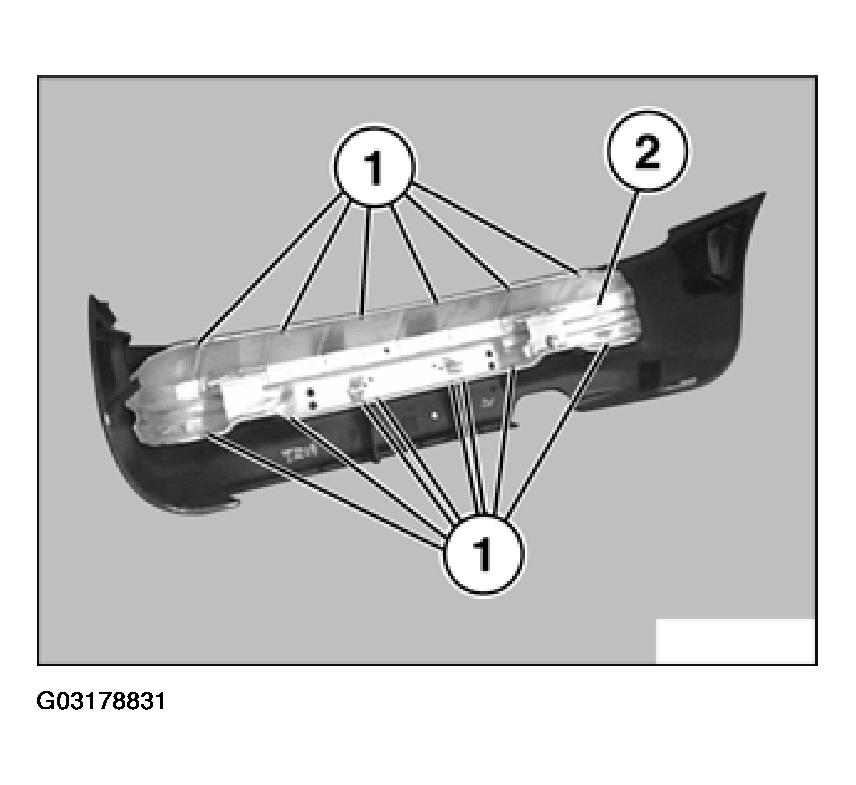

Unfasten expanding rivets (1) and remove center section of bumper (2).

Fig 2: Removing Center Section Of Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operations 51 12 011 REPLACING REAR CENTER SECTION OF BUMPER (CARRIER) (Z3 ROADSTER) end here.

Only Replacement Of "Rear Bumper Trim And Bumper":

Unclip finisher strip for towing eye and remove catch band.
