65 13 300 Removing and installing/replacing complete subwoofer speaker for Top hi-fi system (Z3 Roadster, M Roadster Harmann Kardon)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

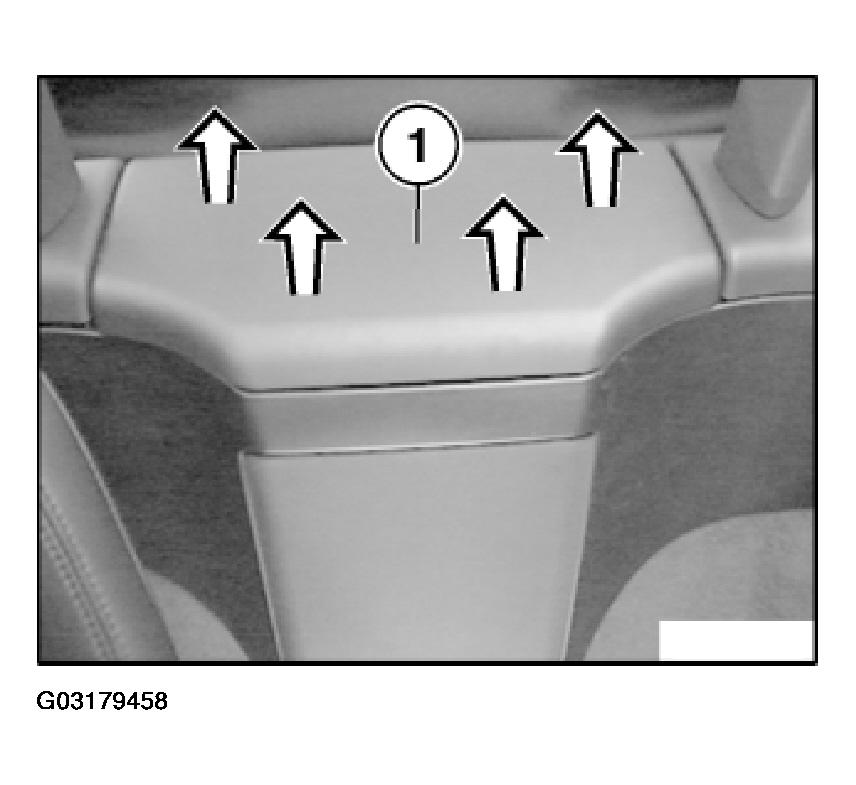

Unclip cover (1) in direction of arrow.

Fig 1: Unclipping Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

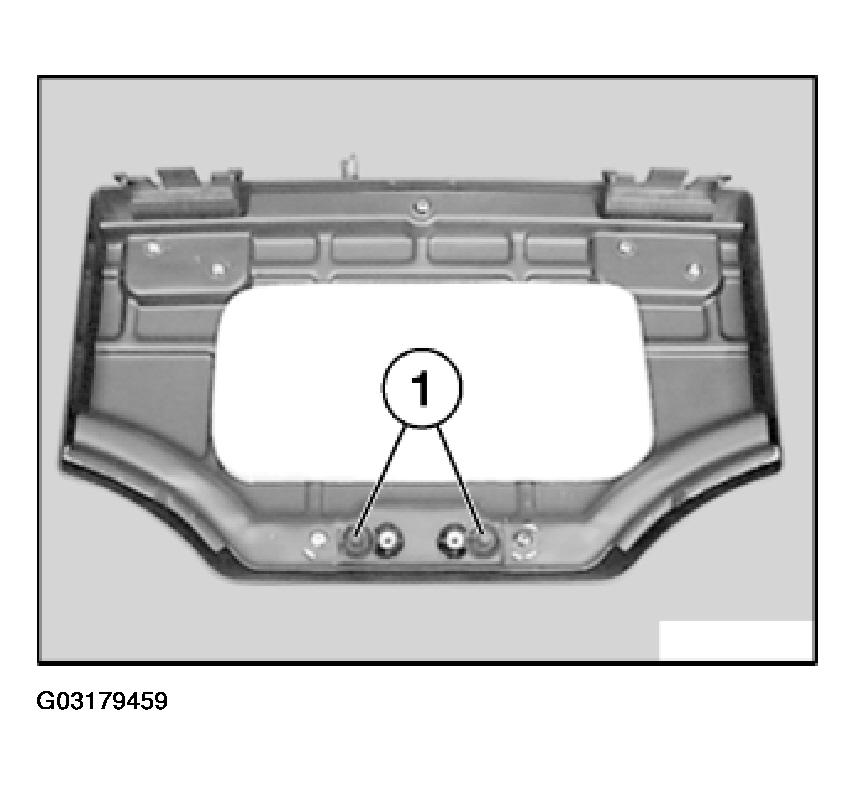

If necessary, replace faulty clips (1).

Fig 2: Locating Clips

Courtesy of BMW OF NORTH AMERICA, INC.

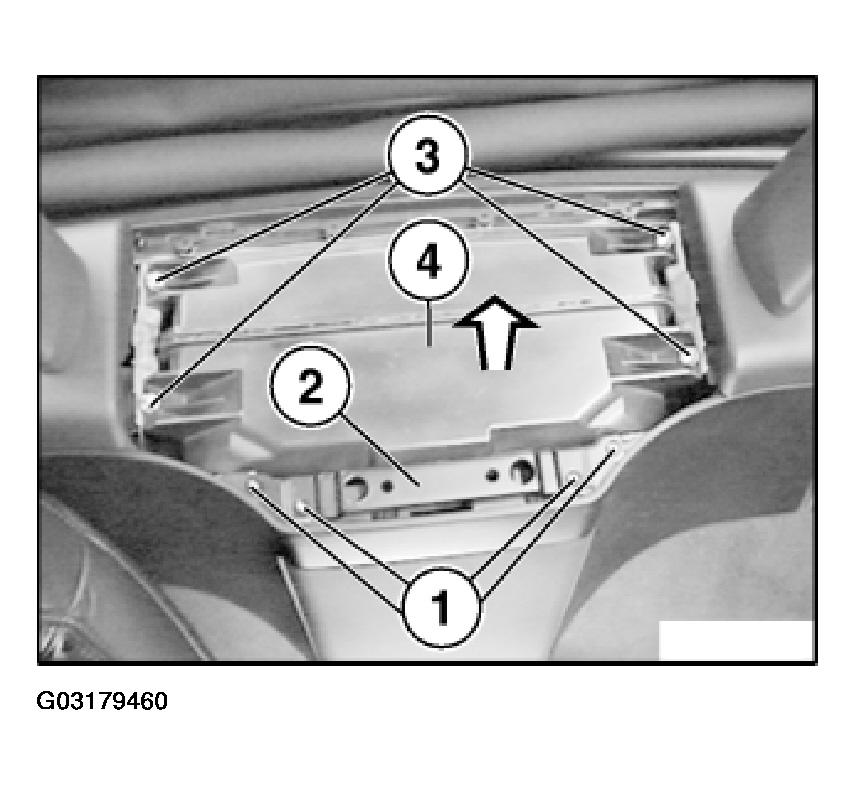

Loosen screws (1).

Remove bracket (2).

Release screws (3).

Pull out subwoofer speaker (4) in direction of arrow.

Fig 3: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove subwoofer speaker from car.

Installation:

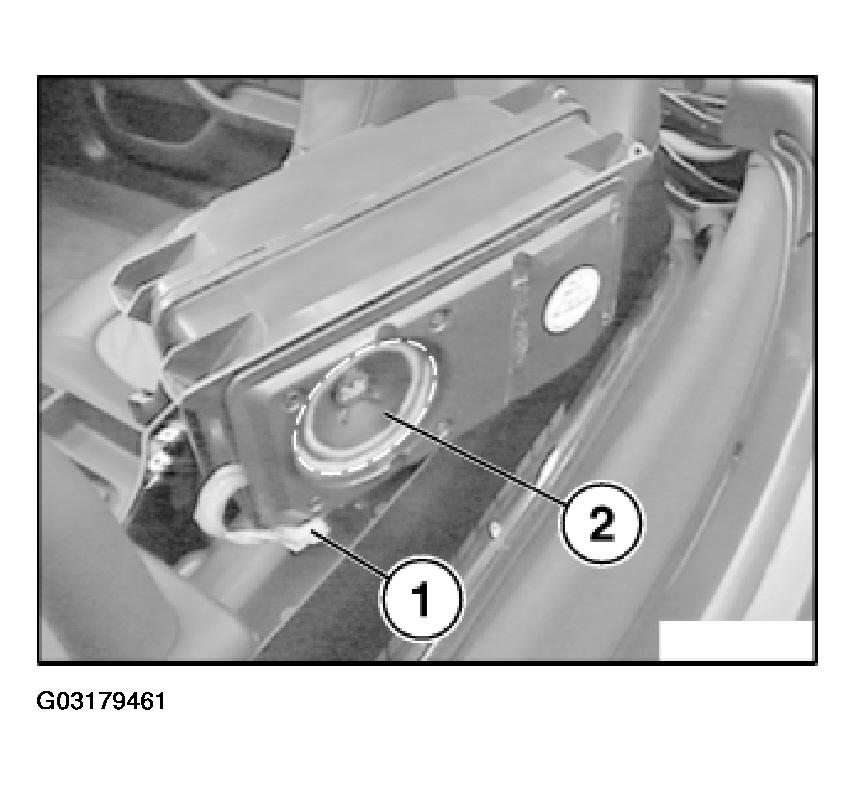

Under no circumstances bring plug connection (1) into area of speaker (2) (risk of damage to diaphragm).

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

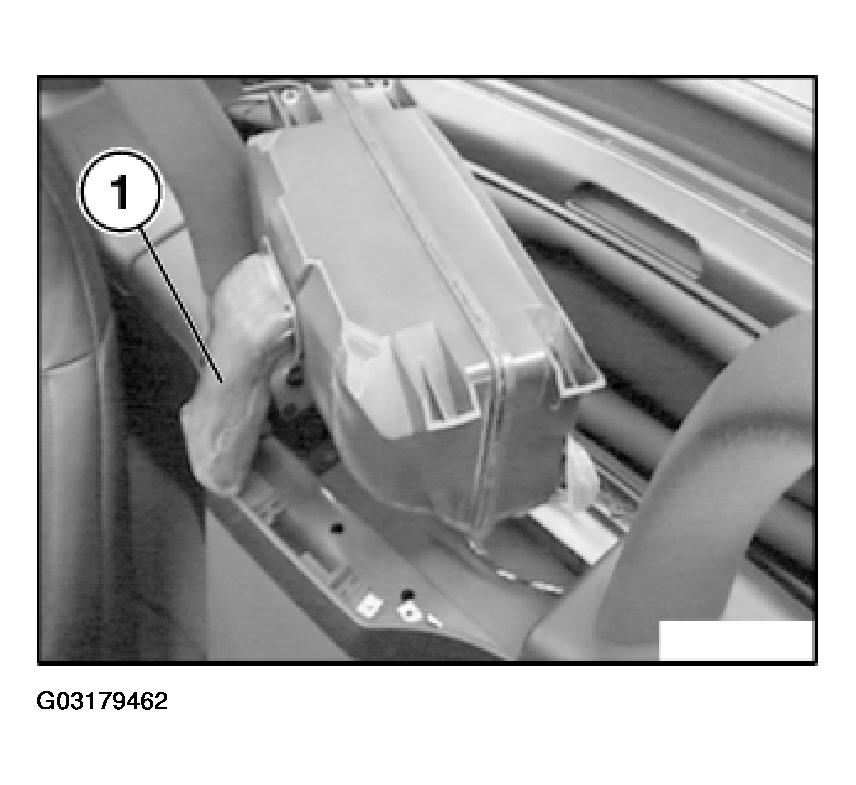

Compress subwoofer speaker tube (1) a little.

Subwoofer speaker tube (1) must not be kinked while it is installed (droning noises).

Fig 5: Compressing Subwoofer Speaker Tube
