51 16 000 Removing and installing/replacing rear-view mirror on left or right front door (Z3 roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Removing door trim, refer to 51 41 000 REMOVING AND INSTALLING FRONT LEFT OR RIGHT DOOR TRIM PANEL (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

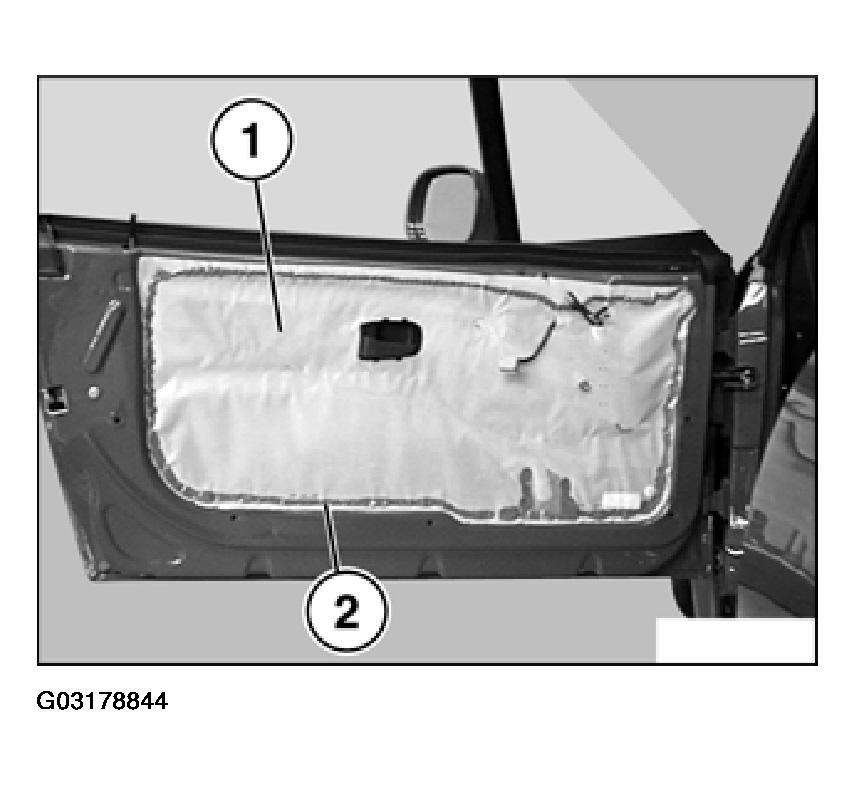

Partially remove foil from front door (1).

Fig 1: Removing Foil From Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If the cement bead (2) is broken, seal with butylene thread.

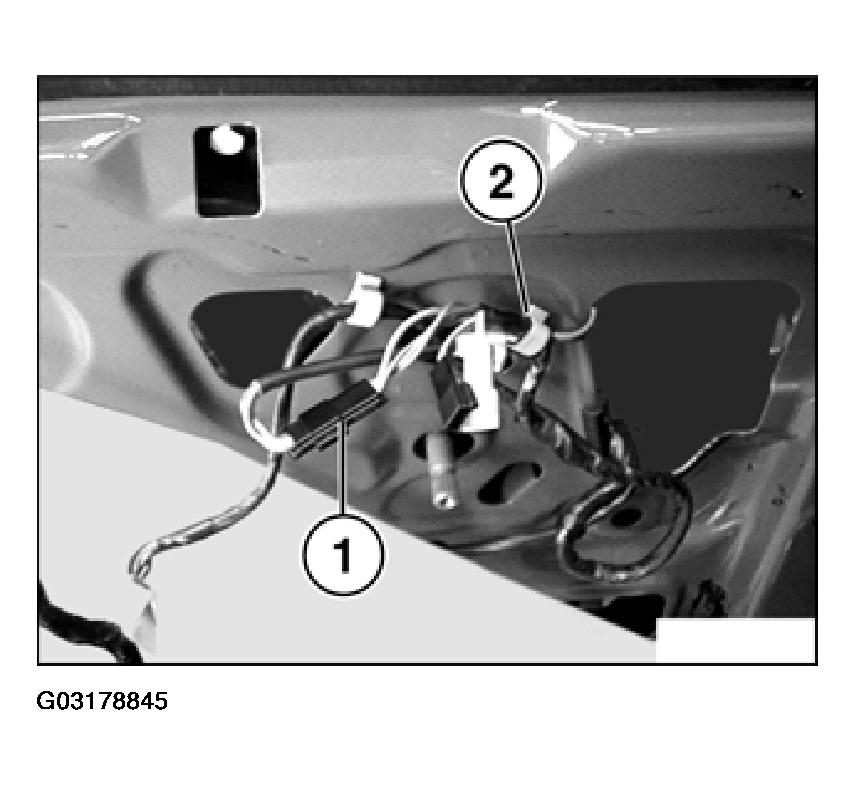

Unfasten connector (1), lift out Omega clip (2) and expose cable.

Fig 2: Identifying Omega Clip And Exposing Cable

Courtesy of BMW OF NORTH AMERICA, INC.

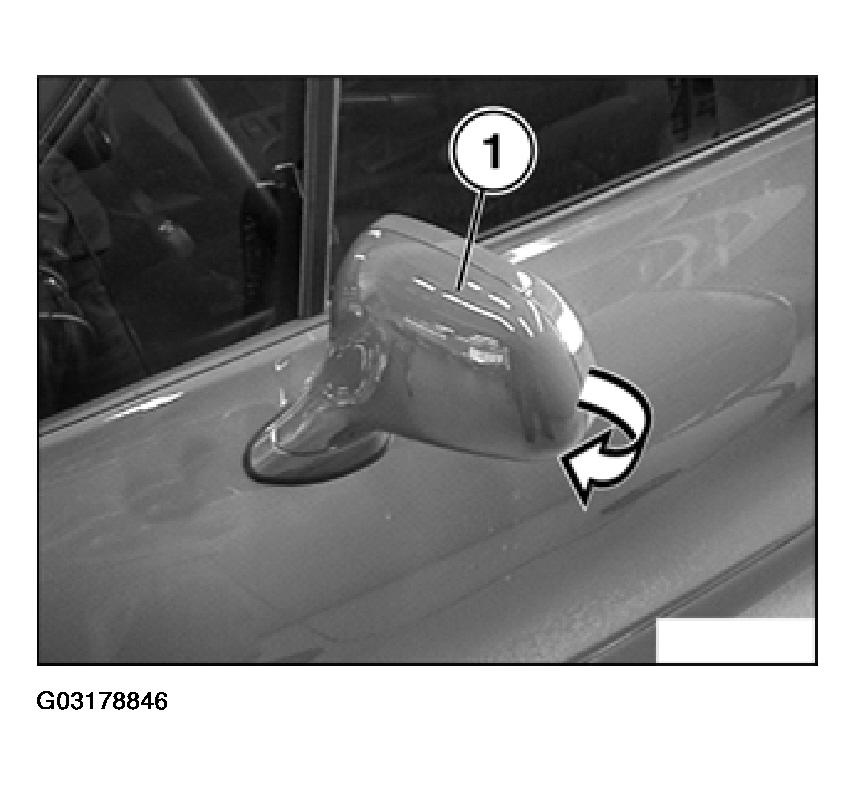

Turn rear-view mirror 90° to face forward.

Fig 3: Turning Rear-View Mirror 90° To Face Forward

Courtesy of BMW OF NORTH AMERICA, INC.

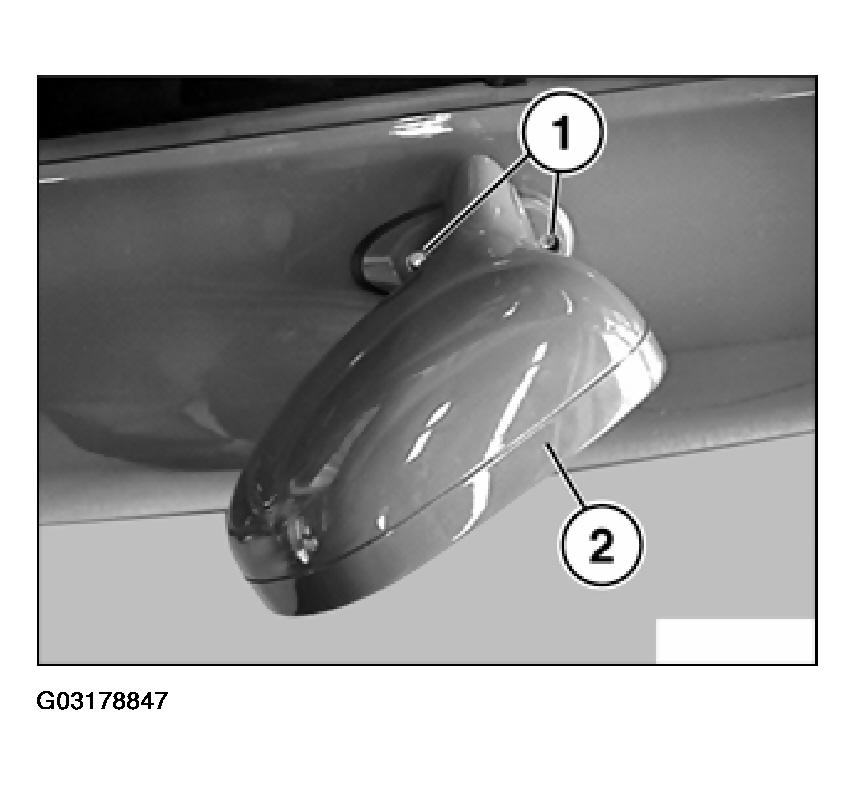

Loosen screws (1).

Remove rear-view mirror (2) and pull out cables.

Fig 4: Removing Rear-View Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 51 16 1AZ. Refer to 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES .

Check function.

Only replace:

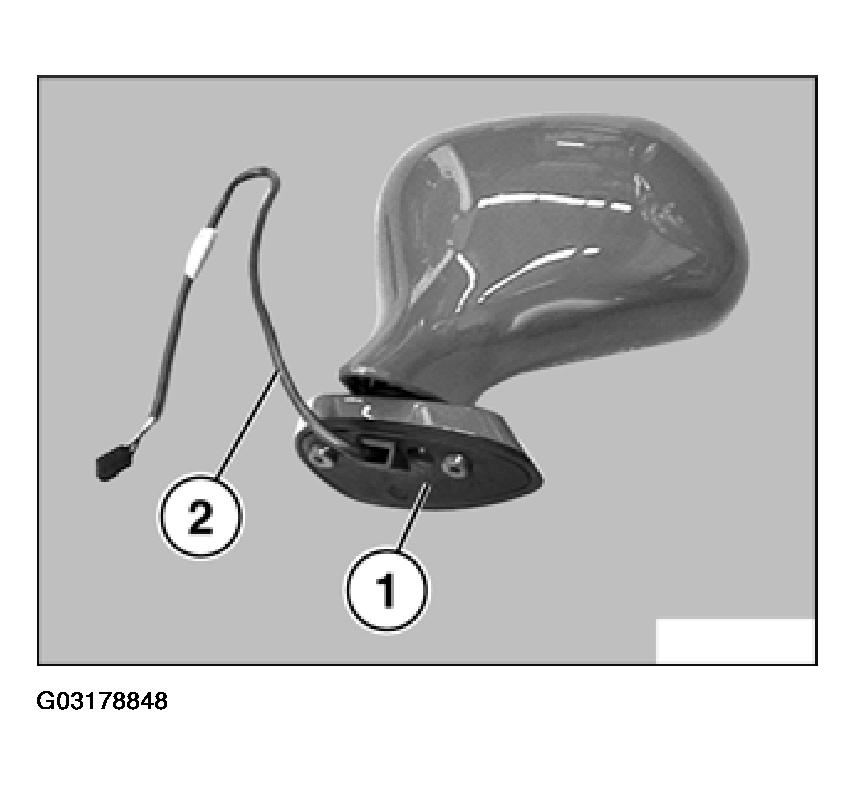

Remove seal (1) and pull out cables (2).

Fig 5: Removing Seal

Courtesy of BMW OF NORTH AMERICA, INC.
