51 16 ... Replacing housing on left or right outside mirror (Z3 roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Remove mirror glass, refer to 51 16 026 REPLACING MIRROR GLASS FOR REAR-VIEW MIRROR (ON FRONT DOOR) .

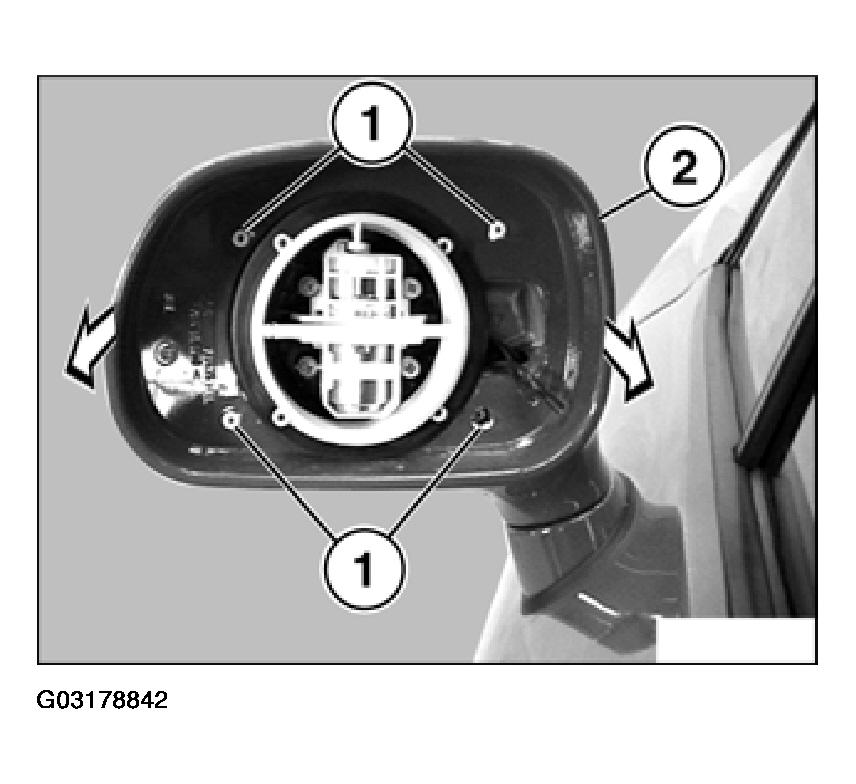

Unfasten screws (1) and pull front section of housing (2) backwards to remove.

Fig 1: Removing Front Section Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

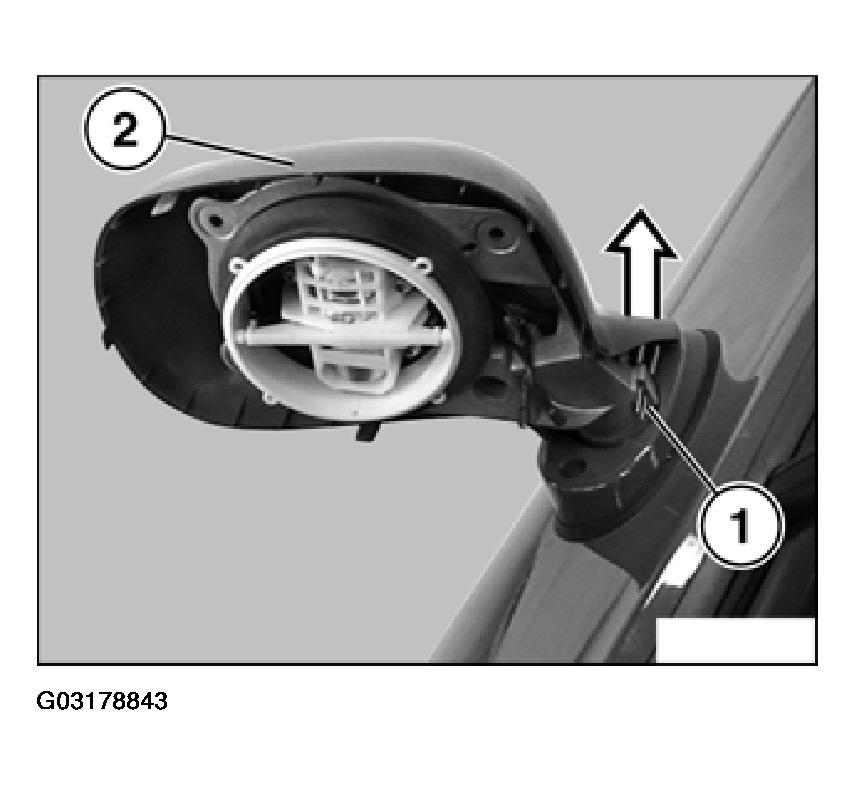

Carefully slide guide (1) forwards (risk of damage) and remove rear section of housing (2).

Fig 2: Removing Rear Section Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.
