51 16 026 Replacing mirror glass for rear-view mirror (on front door)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure car has room temperature to prevent the clips from breaking off.

Tilt mirror glass.

Remove cement between mirror glass and edge of housing (risk of damage).

Unclip mirror glass using a wooden wedge.

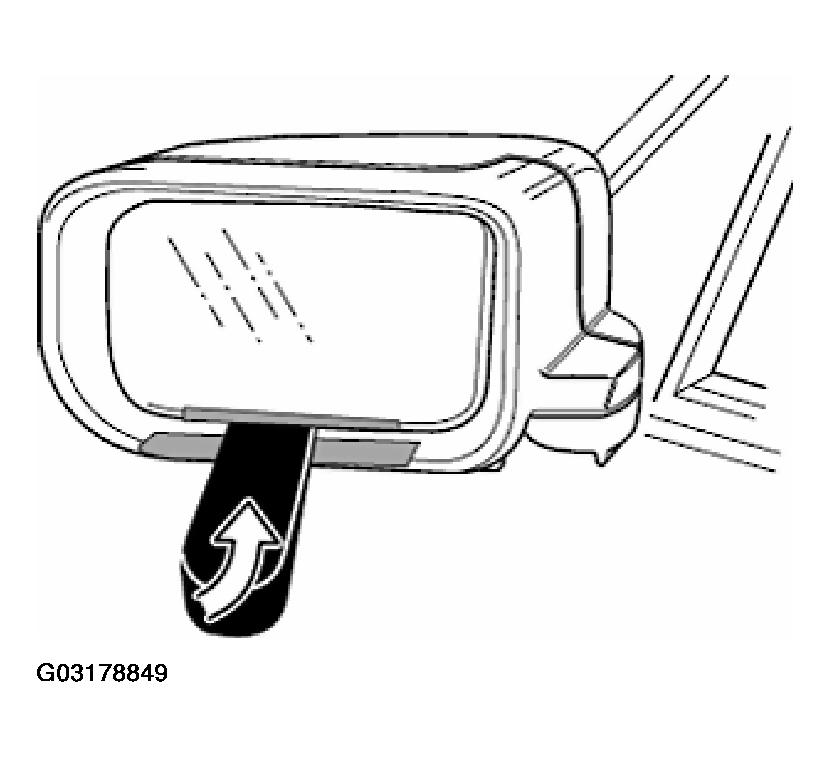

Fig 1: Unclipping Mirror Glass Using Wooden Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove connector (mirror glass heating) and remove mirror glass.

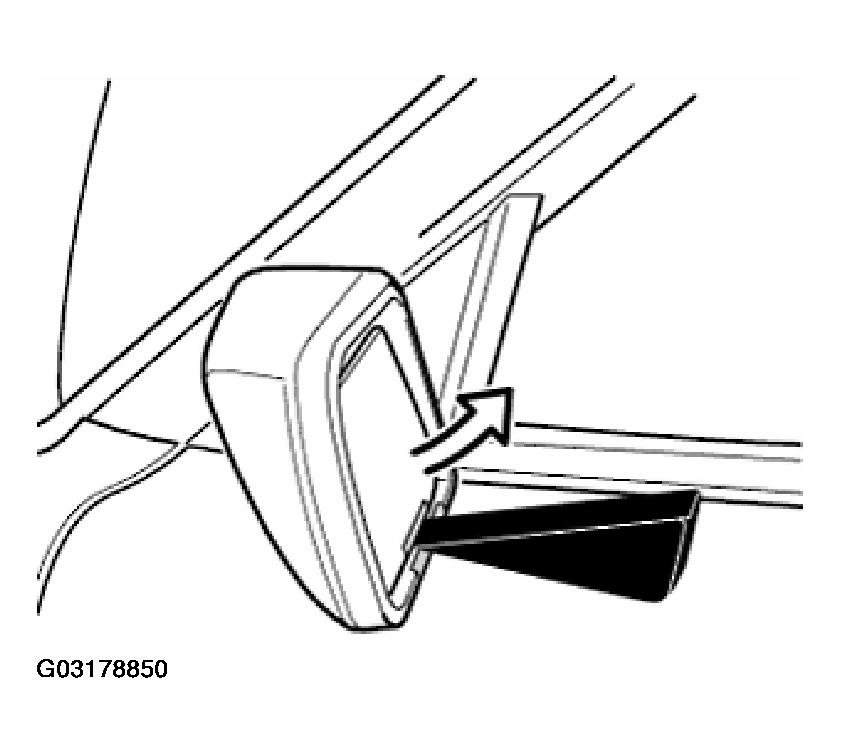

Fig 2: Removing Mirror Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install mirror glass that clips are seated on tabs and clip on glass.

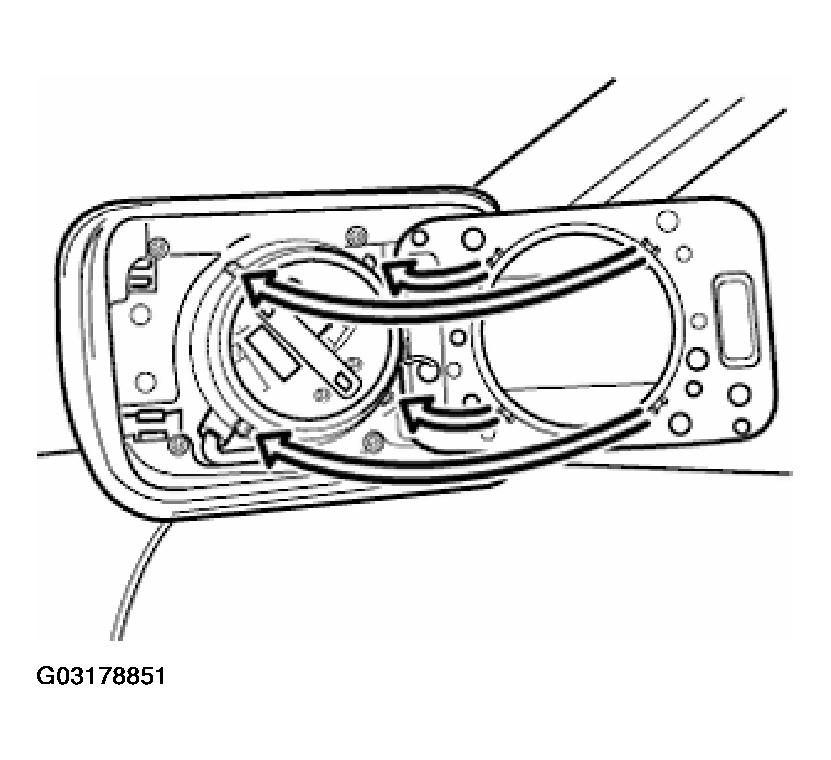

Fig 3: Identifying Mirror Glass Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure correct engagement.

Check function.
