51 71 380 Removing and installing/replacing vibration damper (Z3 Roadster, M Roadster)
WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.
Remove rear bumper, refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

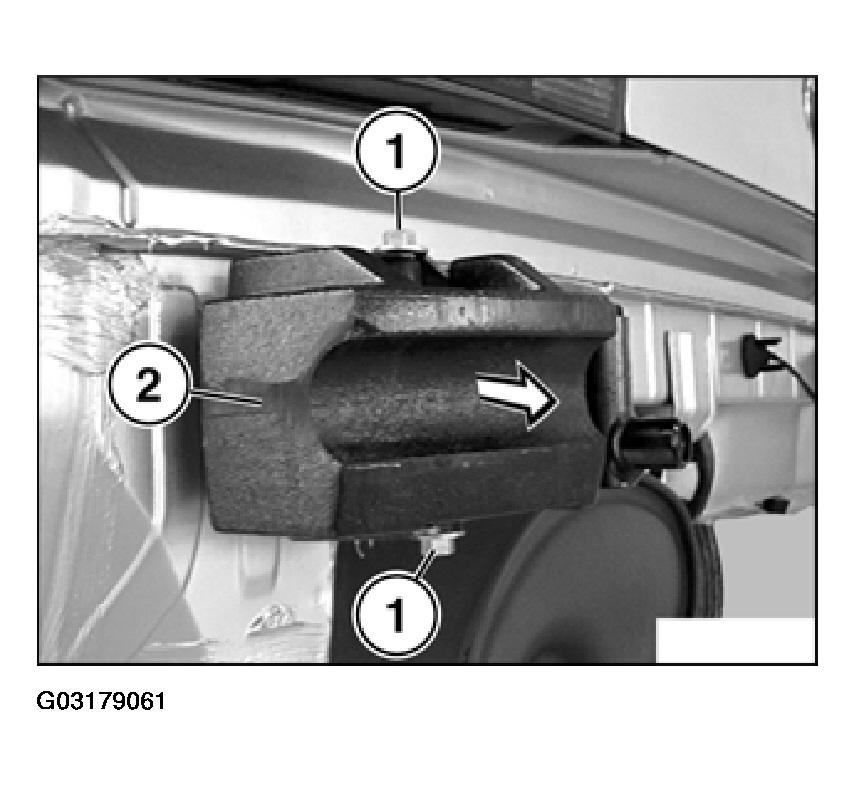

Loosen nut (1) and pull vibration damper (2) backwards to remove.
