51 21 280 Removing and installing or replacing door stop on left or right front door

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING FRONT LEFT OR RIGHT DOOR TRIM PANEL (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

Pull off inner foil and/or part of front acoustic insulation.

NOTE: To prevent damage to paintwork, mask the area around the rivet with fabric adhesive tape.

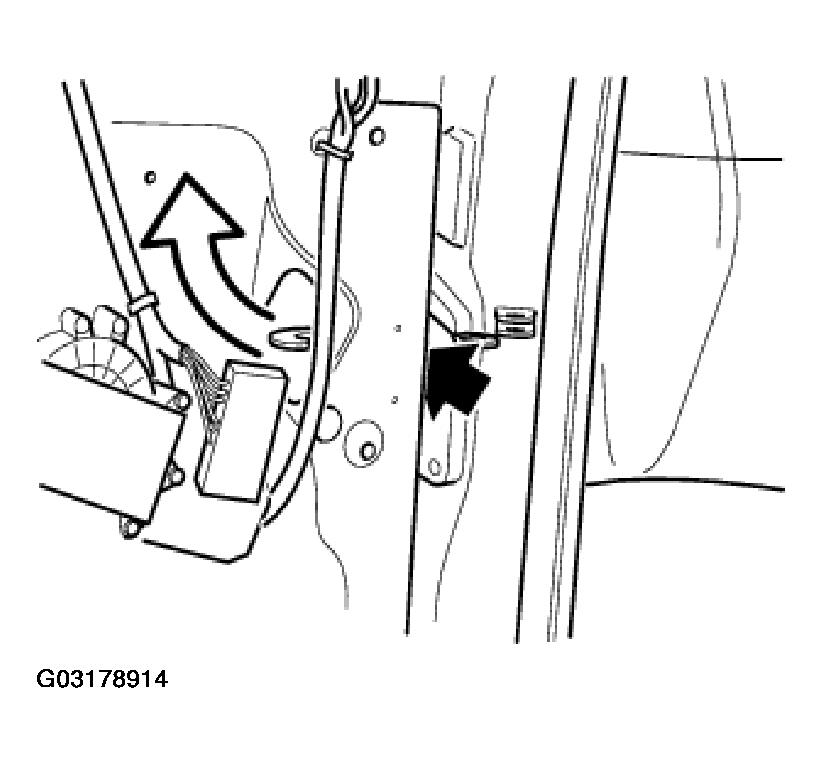

Slide rubber grommet to one side and, if necessary, unfasten cable strap.

Fig 1: Removing Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Old Build Status:

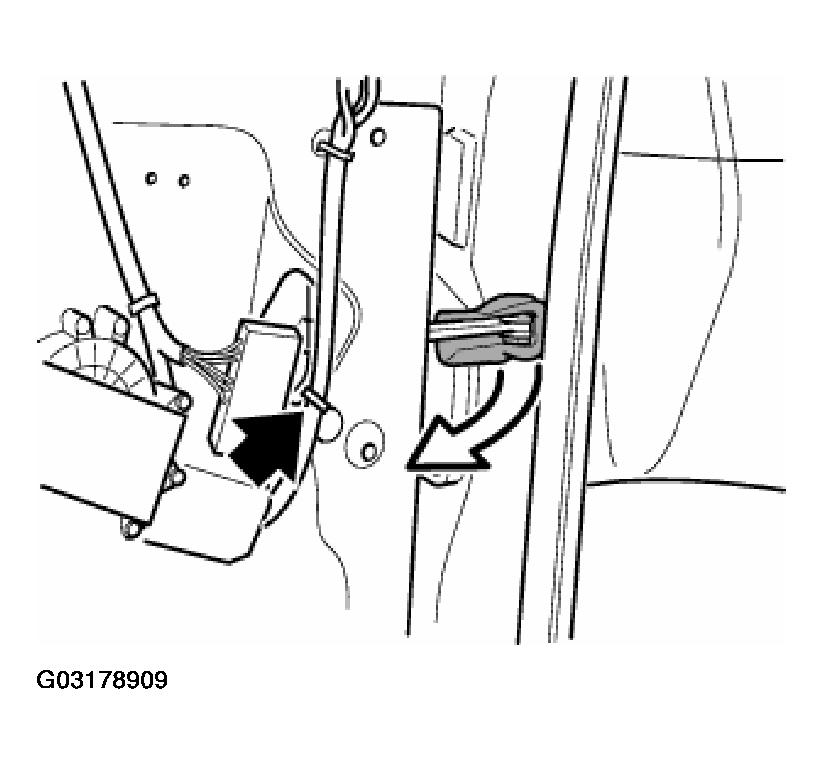

Pull lock plate off towards rear.

Fig 2: Removing Lock Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Old Build Status:

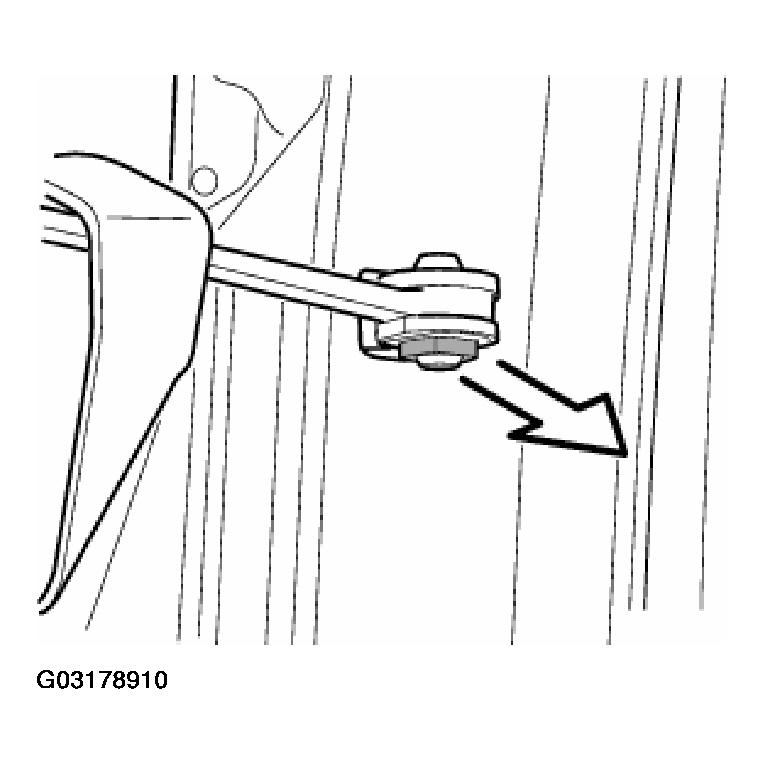

Drive rivet out in upwards direction.

Fig 3: Driving Rivet Out

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off rubber grommet.

New Build Status:

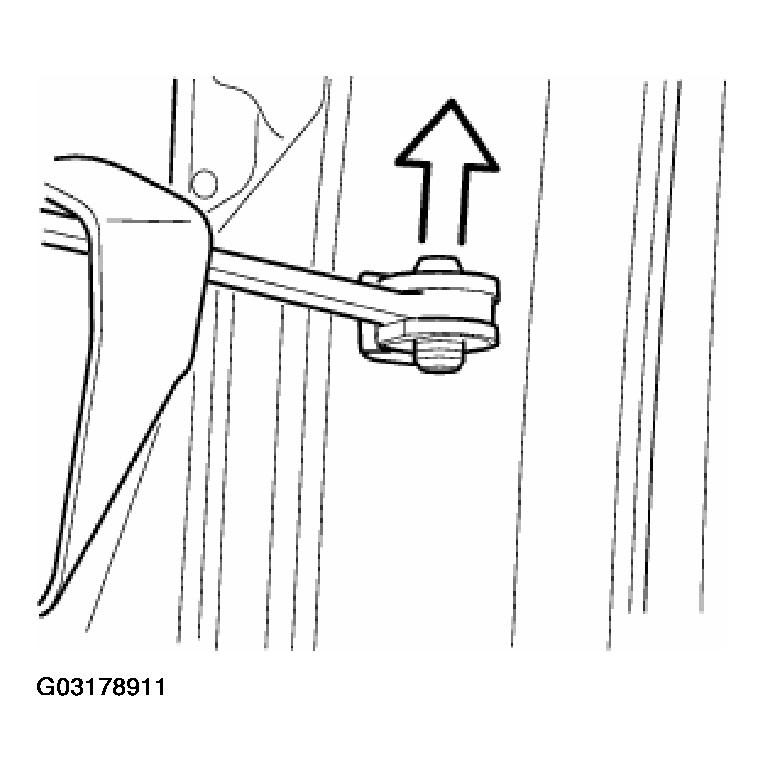

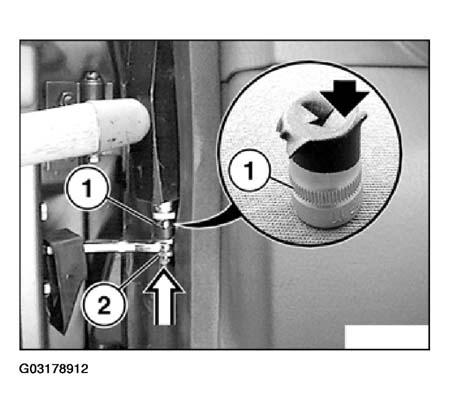

To brace a socket nut (1) (e.g. size 10 mm), mask with fabric adhesive tape (damage to paintwork) and use hammer (500 grammes).

Drive rivet (2) upwards to remove.

Fig 4: Identifying Socket Nut

Courtesy of BMW OF NORTH AMERICA, INC.

New Build Status:

Installation:

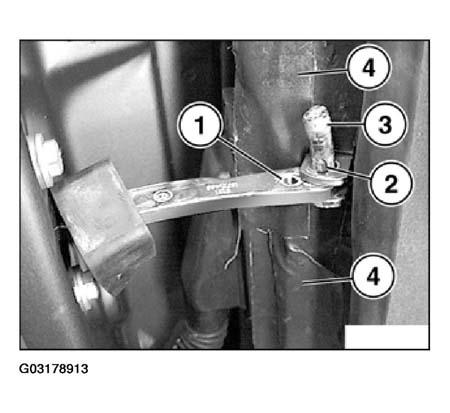

Insert lug (1) in bore. Fit tab (2) on rivet (3) facing door. Pull off fabric adhesive tape (4).

Fig 5: Identifying Lug In Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Push retarder upwards into door and remove.

Fig 6: Removing Retarder

Courtesy of BMW OF NORTH AMERICA, INC.
