51 32 020 Removing and installing/replacing crank unit in left or right front door (Z3 roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door window, refer to 51 32 170 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT DOOR WINDOWS (Z3 ROADSTER) .

Unscrew bolts (1).

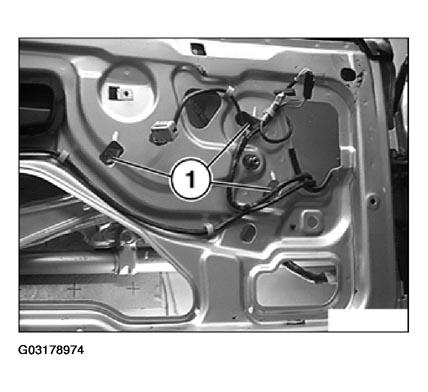

Fig 1: Identifying Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and carefully turn crank unit (2) to remove from front door.

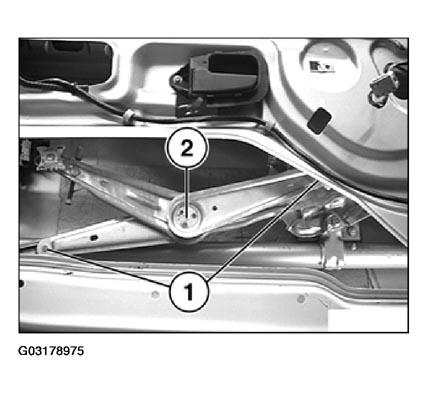

Fig 2: Removing Crank Unit From Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If tolerances are unfavorable, untighten screws (1) and remove support (2).

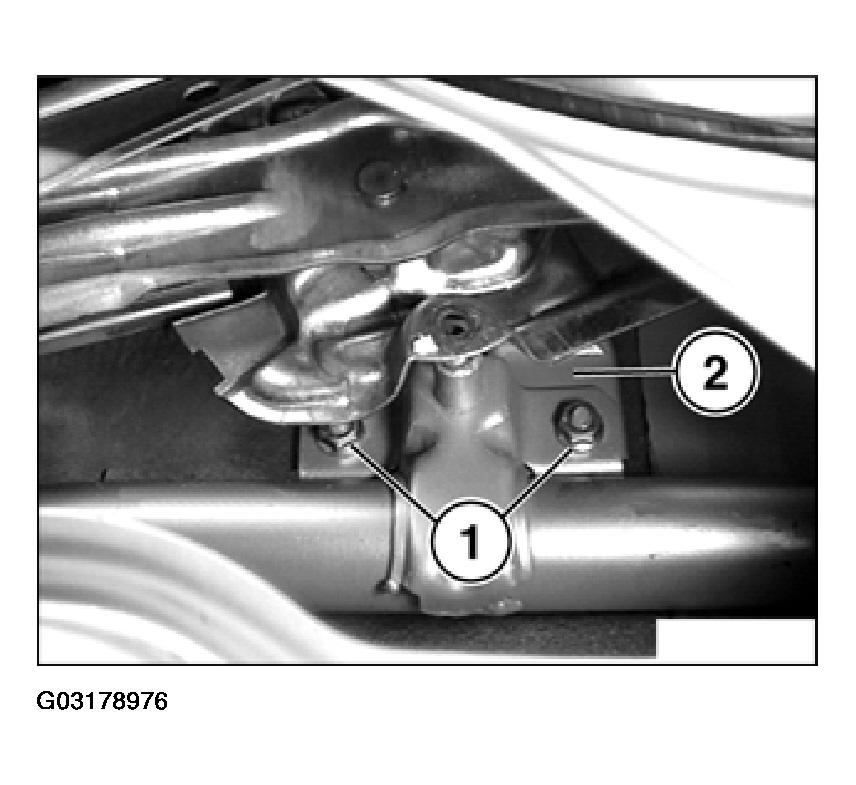

Fig 3: Removing Support

Courtesy of BMW OF NORTH AMERICA, INC.
