51 11 794 Replacing a shock absorber for bumper, front (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

(Bumper Removed)

(If necessary, remove front bumper, refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (Z3 ROADSTER, M ROADSTER) .)

Unfasten nut (1) and remove shock absorber (2).

Tightening Torque, 51 11 3AZ. Refer to 51 11 FRONT BUMPER .

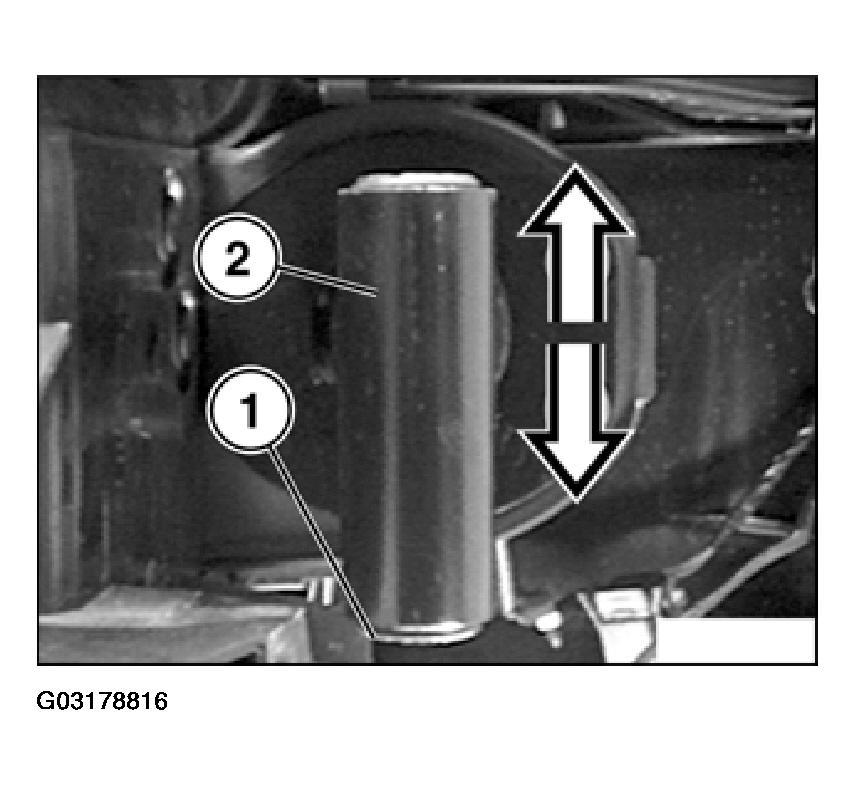

Fig 1: Removing Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Height of bumper is determined by turning the socket head cap screw (1) on the shock absorber (2).

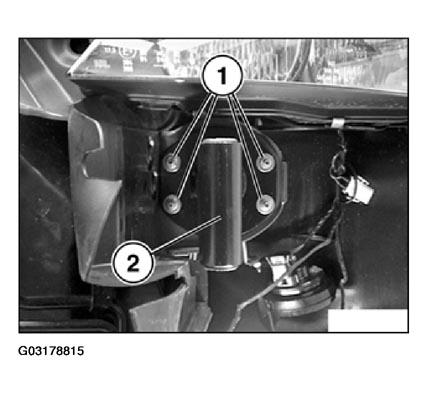

Fig 2: Identifying Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust front bumper, refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (Z3 ROADSTER, M ROADSTER) .
