51 47 161 Removing and installing / replacing right trunk wheel housing trim (Z3 Roadster, M Roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing socket housing for right tail light, refer to 63 21 055 REPLACING SOCKET HOUSING FOR LEFT OR RIGHT TAIL LIGHT (Z3 ROADSTER) .

Remove floor mat.

Version without battery in the luggage compartment:

Unfasten clip (1) and remove trunk wheel housing trim (2).

Installation:

Guide trunk wheel housing trim (2) into the rear apron trim (3) at the bottom.

Fig 1: Removing Trunk Wheel Housing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Version with battery in the luggage compartment:

Unfasten nut (1) and take out tray (2).

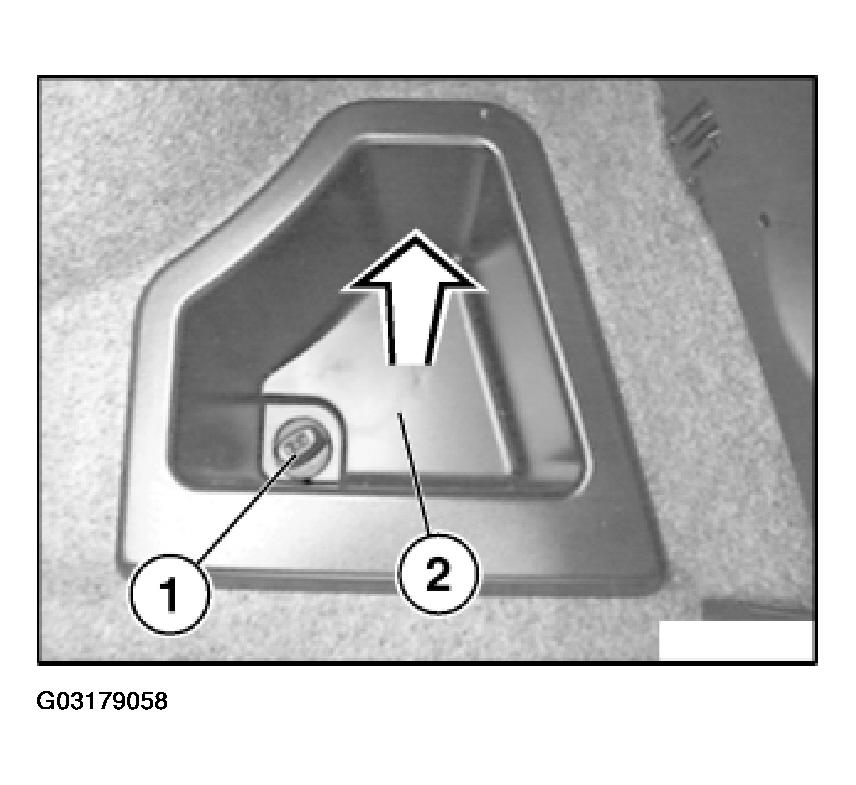

Fig 2: Removing Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Version with battery in luggage compartment:

Unfasten clips (1) and remove trunk wheel housing trim (2).

Installation:

Guide trunk wheel housing trim (2) into the rear apron trim (3) at the bottom.

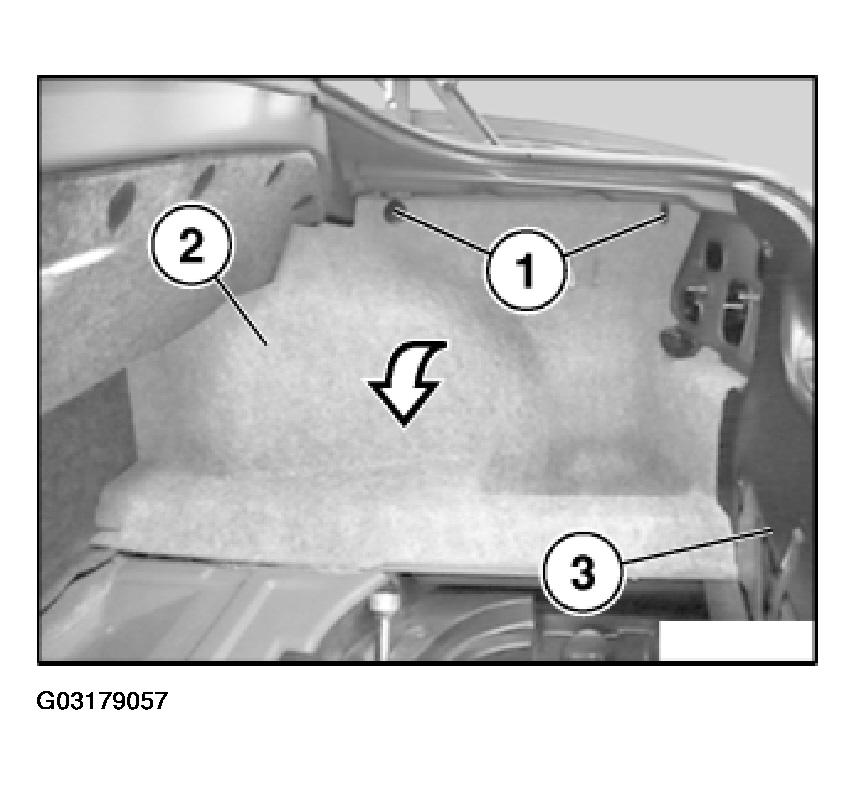

Fig 3: Guiding Trunk Wheel Housing Trim

Courtesy of BMW OF NORTH AMERICA, INC.
