63 21 055 Replacing socket housing for left or right tail light (Z3 roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

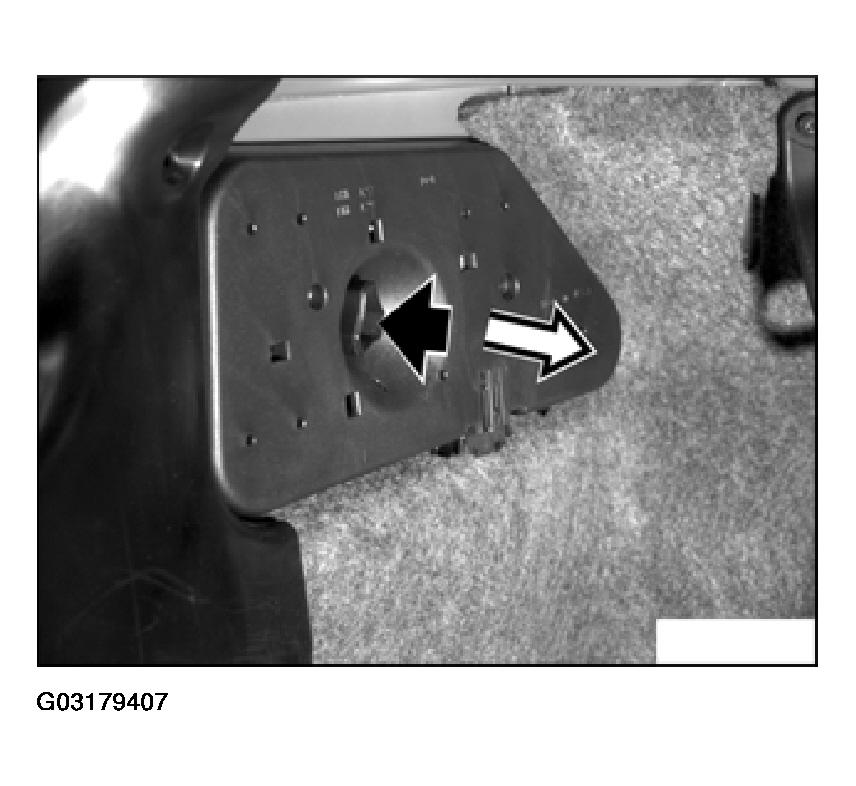

Unfasten nut and remove lamp socket housing.

Fig 1: Removing Lamp Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.

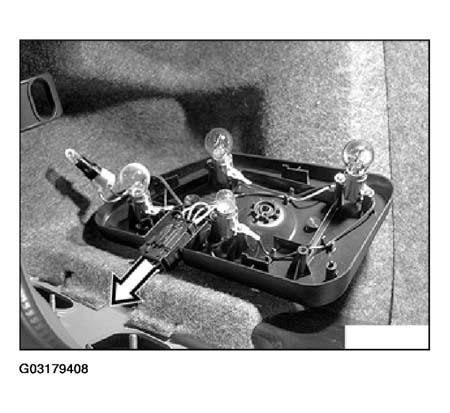

Remove connector and fit light bulb.

Fig 2: Removing Connector And Fit Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Using correct bulb type, refer to 63 21 REAR LIGHT CLUSTER E36 .

Do not take hold of glass part of bulb with bare fingers. Only take hold of bulb on base or with a clean cloth or packaging of light bulb.
