51 47 080 Removing and installing/replacing finisher on B-pillar, left or right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Remove finisher strip off front rocker panel, refer to 51 47 065 REMOVING AND INSTALLING/REPLACING COVER STRIP AT ENTRANCE, FRONT LEFT OR RIGHT (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

Pull finisher strip (1) forwards to unclip.

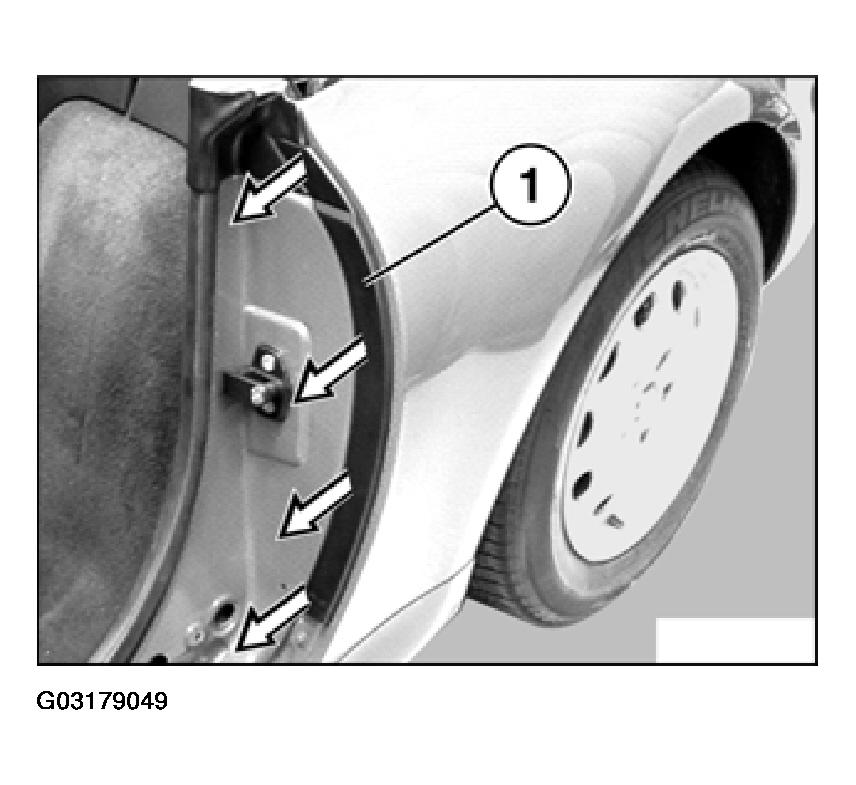

Fig 1: Removing Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, lift clips off panel.

Installation:

Soak clips (1) in water for a short time.

Slide on clips (1).

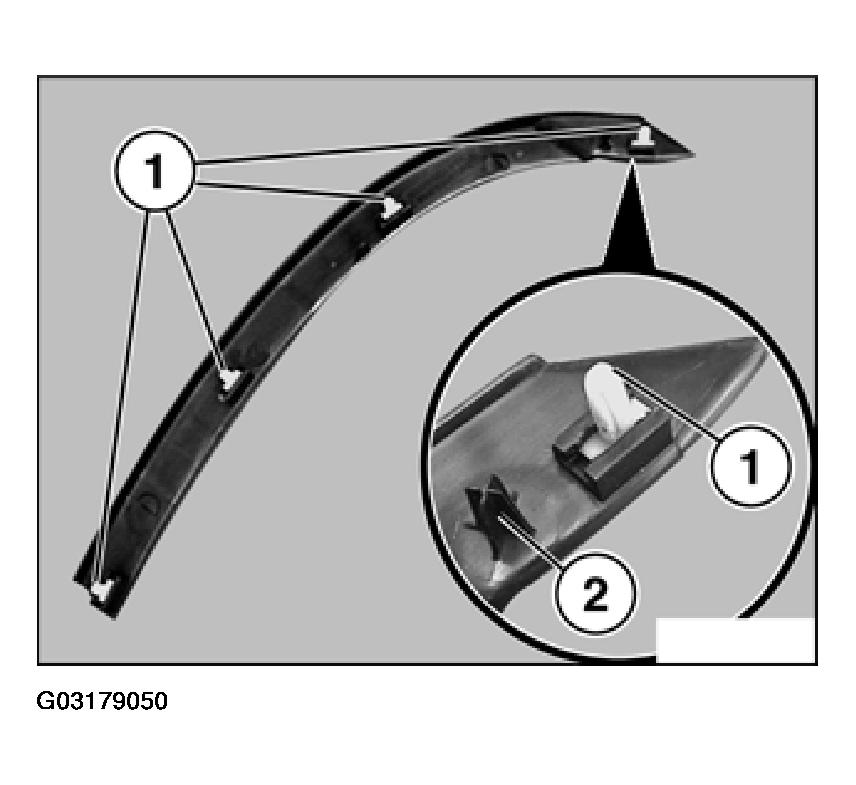

Fig 2: Replacing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace defective clips (1).

Guide (2) must not be damaged.
