51 47 065 Removing and installing/replacing cover strip at entrance, front left or right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten clip (1).

Carefully pull finisher strip, first upwards then forwards to unclip.

If necessary, lift clips off entrance.

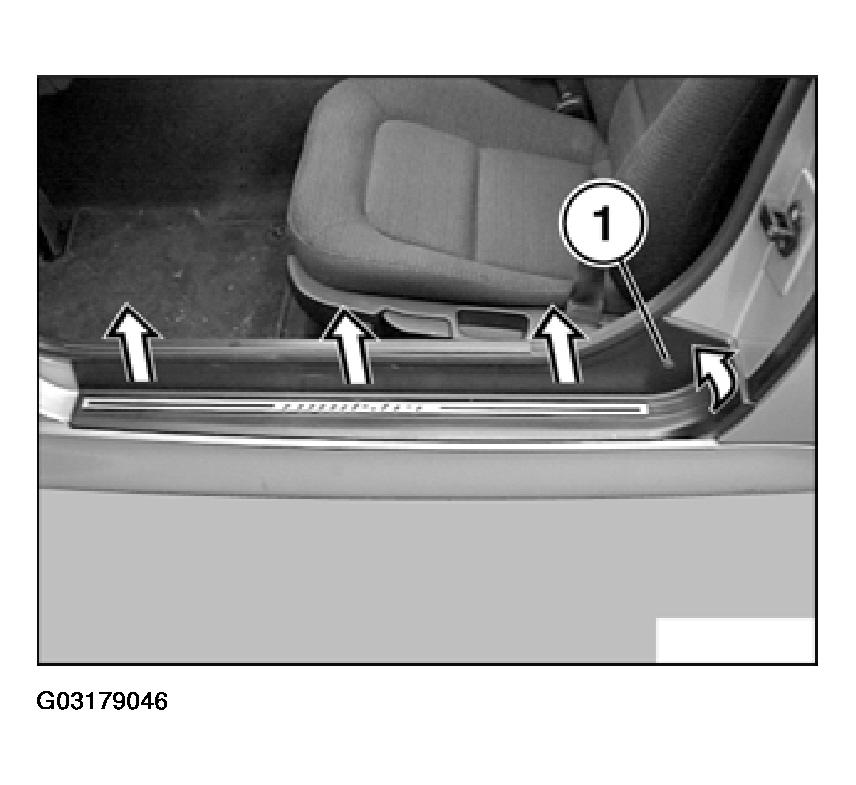

Fig 1: Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Soak clips in water for a short time.

Install clips and align.

If necessary, replace damaged clips.

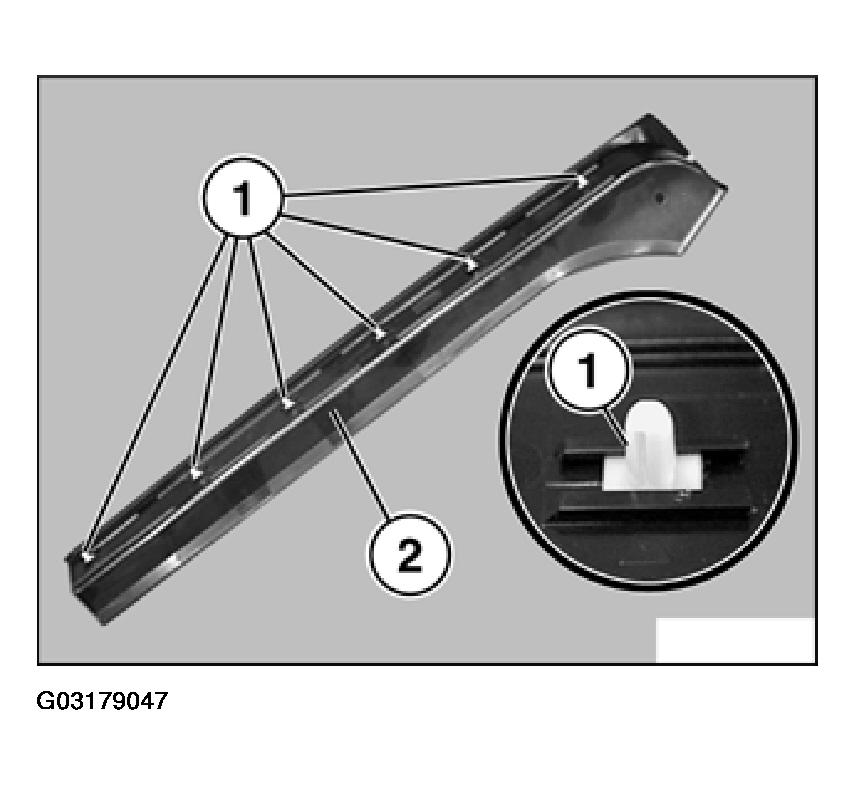

Fig 2: Installing Clips And Aligning

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

Remove seal (1) from finisher strip (2).

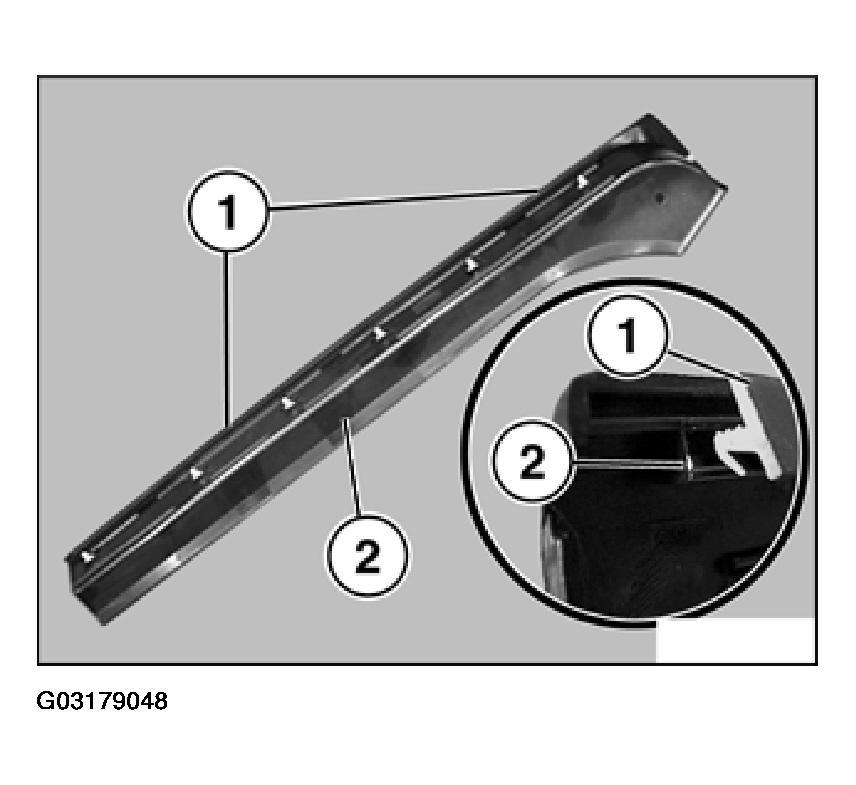

Fig 3: Removing Seal From Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.
